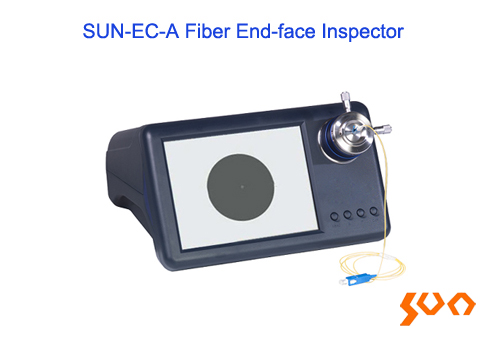

SUN-EC-A Fiber End face Inspector

Position: Home > Products > Fiber Optic Tools and Tool Kits > Fiber Optic Microscopes

Model: SUN-EC-A

Bench-top integrated axial adjustment type, 200/400x, 1.25mm and 2.5mm UPC universal male adaptor included

Key Features

Integrated design
Easy operation and clear imaging
Image input & output
Full scale inspection by adjusting the X and Y axis

Description
Specifications
Ordering Information
Applications
FAQ
Product Video

Sun Telecom’s SUN-EC-A series of fiber end-face inspector is integrated equipment which combines an optical microscope and a monitor in one body. It can accurately inspect fiber optic connectors’ end-faces by adjusting the X and Y axis. SUN-EC-A series of fiber end-face inspector has clear images and a long lifetime. It has different kinds of adaptors for a wide variety of connectors. It is easy to operate and widely used in fiber optic patch cord manufacturing for fiber optic connector end-face quality inspection.

Parameters	Specification
Model	SUN-EC80-A	SUN-EC200-A	SUN-EC400-A (P)
Optical Magnification	80 x	200 x	400 x
Monitor Visual Field (um)	1000W/750H	500W/375H	250W/180H
Focusing Method	Manual
Image Output Mode	PAL
Displayer	8” TFT, 800*600
Adaptor Interface	2.5 mm UPC universal male adaptor (FC/SC/ST) 1.25 mm UPC universal male adaptor (LC/MU)
Power Supply (V)	Input: AC 100 ~ 240 Output: DC 12
Power (w)	3
Operation Temperature (°C)	10 ~ +50
Storage Temperature (°C)	0 ~ +55
Dimensions (mm)	270 (L) x 245 (W) x 155 (H)
Weight (kg)	1.7

Standard Package

No.	Name	Unit	Quantity
1	Fiber End-face Inspector	set	1
2	2.5mm UPC Universal Male Adaptor	piece	1
3	1.25mm UPC Universal Male Adaptor	piece	1
4	Power Adapter	piece	1
5	USB Disk	piece	1

Optional Accessories

No.	Name	Unit	Quantity
1	Fiber End-face Inspector Probe (SUN-EC-P200)	piece	1
2	Fiber End-face Inspector Probe (SUN-EC-P400)	piece	1
3	SC/APC Male Adaptor	piece	1
4	LC/APC Male Adaptor	piece	1
5	FC/APC Male Adaptor	piece	1
6	2.5mm APC Universal Male Adaptor	piece	1
7	1.25mm UPC Universal Duplex Male Adaptor	piece	1
8	MT/UPC Adaptor	piece	1
9	MT/APC Adaptor	piece	1
10	MPO/UPC Adaptor	piece	1
11	MPO/APC Adaptor	piece	1
12	3.17mm (SMA905) adaptor	piece	1
13	3.8mm (HFBR) adaptor	piece	1

Model	Name	Description
SUN-EC200-A	Fiber End-face Inspector	Bench-top integrated axial adjustment type, 200X, manual focus; 2.5 mm UPC universal male adaptor and 1.25 mm UPC universal male adaptor included(Note: MPO connectors with PIN NOT inspectable)
SUN-EC400-A	Fiber End-face Inspector	Bench-top integrated axial adjustment type, 400X, manual focus; 2.5 mm UPC universal male adaptor and 1.25 mm UPC universal male adaptor included(Note: MPO connectors with PIN NOT inspectable)
SUN-EC400-AP	Fiber End-face Inspector	Bench-top integrated axial adjustment type, 400X, manual focus; Adaptors NOT included (Note: MPO connectors with PIN inspectable)
SUN-EC-P200	Fiber End-face Inspector Probe	Handheld Fiber End-face Inspector Probe, 200x; 2.5 mm UPC universal male adaptor, 1.25 mm UPC universal male adaptor, FC/SC/LC Female adaptors included; Used for SUN-EC200 and SUN-EC200-A Fiber End-face Inspector
SUN-EC-P400	Fiber End-face Inspector Probe	Handheld Fiber End-face Inspector Probe, 400x; 2.5 mm UPC universal male adaptor, 1.25 mm UPC universal male adaptor, FC/SC/LC Female adaptors included; Used for SUN-EC400 and SUN-EC400-A (P) Fiber End-face Inspector
SUN-EC-A-250	Fiber Optic Adaptor	2.5 mm UPC universal male adaptor; Used for SUN-EC-A series Fiber End-face Inspector
SUN-EC-A-125	Fiber Optic Adaptor	1.25 mm UPC universal male adaptor; Used for SUN-EC-A series Fiber End-face Inspector
SUN-EC-A-ASC	Fiber Optic Adaptor	SC/APC male adaptor; Used for SUN-EC-A series Fiber End-face Inspector
SUN-EC-A-ALC	Fiber Optic Adaptor	LC/APC male adaptor; Used for SUN-EC-A series Fiber End-face Inspector
SUN-EC-A-AFC	Fiber Optic Adaptor	FC/APC male adaptor; Used for SUN-EC-A series Fiber End-face Inspector
SUN-EC-A-A250	Fiber Optic Adaptor	2.5 mm APC universal male adaptor; Used for SUN-EC-A series Fiber End-face Inspector
SUN-EC-A-D125	Fiber Optic Adaptor	1.25 mm UPC universal duplex male adaptor; Used for SUN-EC-A series Fiber End-face Inspector
SUN-EC-A-MT	Fiber Optic Adaptor	MT/UPC adaptor; Used for SUN-EC-A series Fiber End-face Inspector
SUN-EC-A-MPO	Fiber Optic Adaptor	MPO/UPC adaptor; Used for SUN-EC-A series Fiber End-face Inspector
SUN-EC-A-AMT	Fiber Optic Adaptor	MT/APC ferrule adaptor; Used for SUN-EC-A series Fiber End-face Inspector
SUN-EC-A-AMPO	Fiber Optic Adaptor	MPO/APC adaptor; Used for SUN-EC-A series Fiber End-face Inspector
SUN-EC-A-317	Fiber Optic Adaptor	3.17mm (SMA905) adaptor; Used for SUN-EC-A series Fiber End-face Inspector
SUN-EC-A-380	Fiber Optic Adaptor	3.8mm (HFBR) adaptor; Used for SUN-EC-A series Fiber End-face Inspector

Note: Other special adapters can be customized according to requirements.

● Fiber optic connector end-face inspection

Related Products

Fiber Optic Connector Components

Model:

LC ⁄ SC ⁄ FC ⁄ ST ⁄ E2000，SM ⁄ MM, APC ⁄ UPC, Low insertion loss high return loss, unassembled, pre-assembled

Fiber Optic Connector Components

Model:

Features

Low insertion loss and high return loss
Excellent interchangeability and repeatability
High Precision Alignment

Learn More

Fiber Optic Patch Cords and Pigtails

Model:

Different interface optional, Easy operation, Low insertion loss

Fiber Optic Patch Cords and Pigtails

Model:

Features

Low insertion loss
High return loss
Good repeatability

Learn More

SUN-OT5000 OTDR

Model: SUN-OT5000

Can test SM and MM fibers, optional light source, VFL and power meter

SUN-OT5000 OTDR

Model: SUN-OT5000

Features

Quick startup
FTTX in-service testing (Up to1:64 splitter)
Built-in PON power meter for Triple-play testing
High configuration series include optical light source, optical power meter, visual fault locator (VFL) and Optical Connector Inspector (MCI) modules
USB data interface (PC software for batch data processing and report output)
Dustproof and shockproof (2-meter drop test)
Light weight, small size, rugged design and simple operation
Visual link image software (Optional)

Learn More

SUN-TK400S Fiber Optic Tool Kit

Model: SUN-TK400S

Suitable for fiber end face inspection and cleaning

SUN-TK400S Fiber Optic Tool Kit

Model: SUN-TK400S

Features

Easy to carry
All kinds of tools

Learn More

SUN-1000 Ethernet Media Converter

Model: SUN-1000

10 ⁄ 100 ⁄ 1000Mbps, 1xRJ45, 1xOptical port

SUN-1000 Ethernet Media Converter

Model: SUN-1000

Features

Compliance with IEEE standards
MTBF of more than 50000 hours
Full & half duplex operation and auto-negotiation
Electric interface self-adapting parallel/crossover connections
Longest 1552 byte data packet transmission
QoS ensuring VoIP data packet transmission
STP Spanning Tree forming a redundant network
Low power consumption and low heat for longtime stable operation
Single/Multi mode and Single/Dual fiber transmission modes
Network Management Function (optional)

Learn More

SUN-ODB-RM2C Fiber Optic Terminal Box

Model: SUN-ODB-RM2C

Used in CO as a cable termination 19-inch Rack mount sliding type

SUN-ODB-RM2C Fiber Optic Terminal Box

Model: SUN-ODB-RM2C

Features

19-inch standard structure
Sliding design, rack mounted
FC square/SC/DSC/ST adapter panel

Learn More

SUN-HMS Fiber Optic Microscope

Model: SUN-HMS

200X 400X Optical Magnification, FC ⁄ SC ⁄ ST, LC ⁄ MU, SMA905 interfaces

SUN-HMS Fiber Optic Microscope

Model: SUN-HMS

Features

UPC or APC end face inspection
Built-in infrared attenuation filter for safety and reliability
On/off switch control
Precise focal length adjustment
Suitable for various of fiber optic connector end faces inspection

Learn More

SUN-OC-SLT-SP Stranded Loose Tube Light-armored (Steel Tape) Cable (GYTS)

Model: SUN-OC-SLT-SP

GYTS, Loose Tube Light-armored (Steel Tape) Cable, 2-144cores

SUN-OC-SLT-SP Stranded Loose Tube Light-armored (Steel Tape) Cable (GYTS)

Model: SUN-OC-SLT-SP

Features

Good mechanical and temperature performance
High hydrolysis resistance and high strength loose tube
Good crush resistance and flexibility
High tensile strength ensured by steel wire
Good moisture-proof ensured by PSP
Gopher protected cable

Learn More

SUN-EC Fiber End-face Inspector

Model: SUN-EC

Bench-top integrated conventional type, 200/400x, 1.25mm and 2.5mm UPC universal male adaptor included

SUN-EC Fiber End-face Inspector

Model: SUN-EC

Features

Integrated design
Easy operation and clear imaging
Image input & output

Learn More

SUN-SMS Fiber Optic Microscope

Model: SUN-SMS

Mini, 100X 200X Magnification, FC ⁄ SC ⁄ ST, LC ⁄ MU, SMA905 interfaces

SUN-SMS Fiber Optic Microscope

Model: SUN-SMS

Features

Both UPC and APC end face inspection
Built-in infrared attenuation filter for safety and reliability
Momentary on/off switch control
Precise focal length adjustment
Small size and easy to carry
More suitable for multimode connector inspection

Learn More

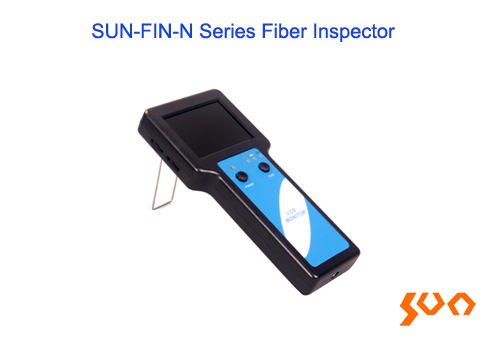

SUN-FIN Fiber Ferrule Inspector
