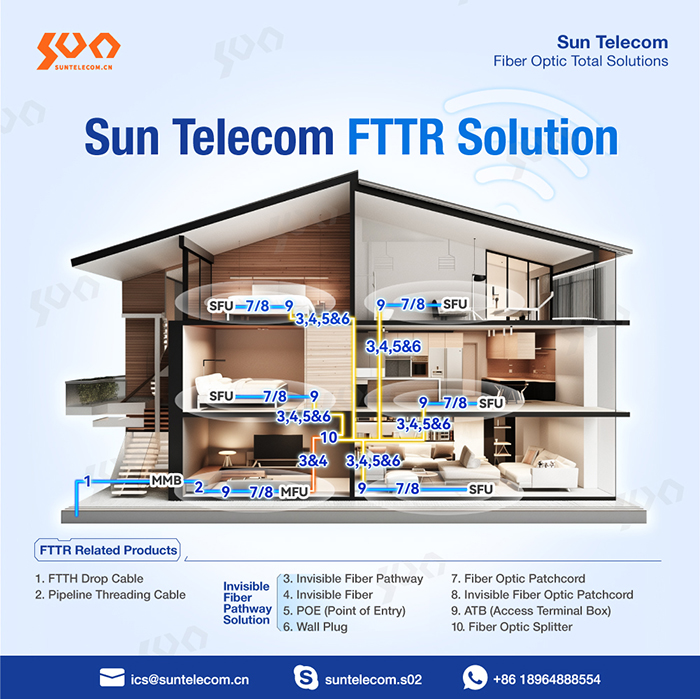

Sun Telecom's FTTR (Fiber-to-the-Room) is an extension of FTTH (Fiber-to-the-Home). It consists of three components: the Master FTTR Unit (Main FTTR Unit, MFU), Slave FTTR Units (Sub FTTR Units, SFUs), and an indoor optical distribution network (ODN). It also provides terminal interconnection, data backhaul, Wi-Fi coordination, network management, and more.
Sun Telecom offers advanced solutions for FTTR installations, specifically the Invisible Fiber Pathway Solution. This solution is designed to conceal fiber optic cables on walls, making indoor cabling aesthetically pleasing. Unlike traditional pathways, our invisible fiber optic solution conceals cables without damaging interior decoration while ensuring efficient and reliable connections.
Key Features
• Simplified P2MP architecture
• Gigabit all-optical connections to each room
• Continuously expanded scenarios (home, small and micro-enterprise, building, etc)
• Aesthetically pleasing and neat indoor cabling
• Efficient and convenient construction
SUN-ODN-CP Fiber Optic Distribution Box (PoE)
Model: SUN-ODN-CP
indoor wall mount, Point-of-Entry box, Max adaptors: 1, SC adaptor
Features
Indoor wall mount (screw fixing or back adhesive) SC adapter panel The multi-core cable can be mid-span, fused with the pigtail and also can be terminated with fast connector The cover and the base are fixed together by hinges for easy operation (open and close) and maintenance
SUN-HP-CMP1 Hole plug (Micro PoE)
Model: SUN-HP-CMP1
indoor wall mount, 0.9mm cable protection
Features
Indoor application Compact and easy to install Flip design for easy closure after fiber routing Supports multi-directional fiber routing based on site conditions
SUN-IFP Invisible Fiber Pathway and Cover
Model: SUN-IFP
Features
Indoor application Back adhesive layer
SUN-IC-IVC-SMB3-SX-0.9 Invisible Fiber Optic Cable
Model: SUN-IC-IVC-SMB3-SX-0.9
0.9mm invisible cable , 1 cores, SM G657B3
Features
Small outer diameter, light weight, transparent Great bending performance Easy and efficient installation Suitable for most surface Installation PVC or Nylon tight buffer
SUN-IC-GJH-12SMB3-1.8L-W Indoor Cable
Model: SUN-IC-GJH-12SMB3-1.8L-W
indoor cable, 1.8mm white cable, 12 cores, SM G657B3
Features
Large fiber count small out diameter 250um colored bare fiber, LSZH outer sheath
SUN-DC240-1F-0.9-SMB3-W FTTH Drop Cable
Model: SUN-DC240-1F-0.9-SMB3-W
indoor drop cable, 0.9mm invisible cable inside, 1 cores, SM G657B3
Features
Good crush resistance ensured by parallel strength members Good tensile strength ensured by FRP Low smoke, zero halogen sheath Simple structure, light weight and high practicability 0.9mm PVC or Nylon tight buffer
SUN-ODN-S Distribution Box
Model: SUN-ODN-S
Indoor use, Max adaptors: 1 or 2, SC adaptors
Features
Indoor flush mount SC adapter panel Fast connector applicable Front cover effectively protect optical fiber adapter
