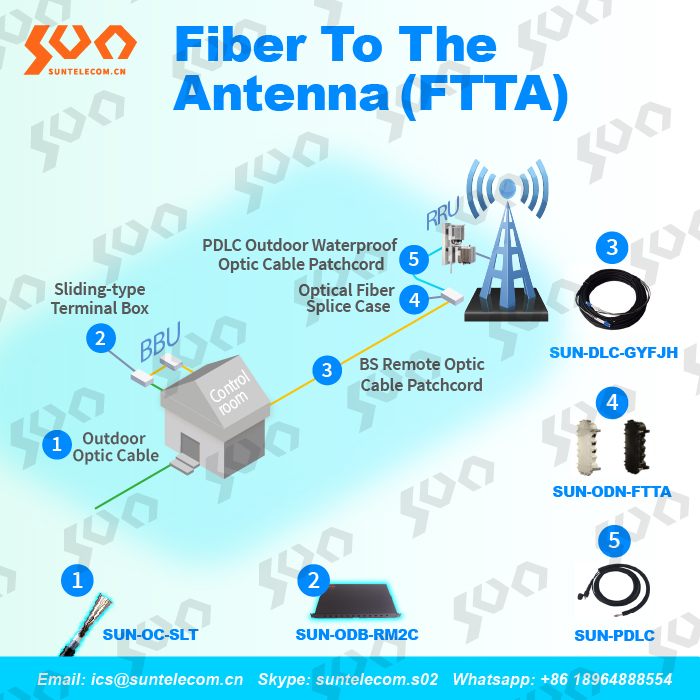

FTTA is a broadband network architecture to connect the building base band unit (BBU) to the remote radio unit (RRU) at the top of the tower by using optical fibers to replace all or part of the coaxial network. FTTA technology can greatly reduce the loss of signal power. And up to 20km's maximum transmission distance helps realize centralized placement of base stations in lower-cost telecommunication rooms as well as more flexible and modularized network planning. FTTA is an innovative, flexible and future-oriented way to install the network.
Sun Telecom provides excellent FTTA solutions to reduce installation time and save the cost of installation and maintenance. We provide the whole set of equipment and technology supporting, include outdoor optic fibers, PDLC outdoor waterproof patch cords, terminal boxes, etc.
• Flexible deployment, apply to different occasions
• Reduced complexity, saving installation time and space on the tower, faster deployment
• Lower investment
• High reliability - reducing OPEX
SUN-GYFJH Outdoor Remote Cable Patch Cord
Model: SUN-GYFJH
SM/SMA1, GYFJH cable 2 cores, 7.0mm LSZH Black jacket
Features
Low insertion loss and high return loss High intensity of tension Water and dust proof
SUN-ODN-OP-A-YH Fiber Optic Distribution Box
Model: SUN-ODN-OP-A-YH
Black; Max adaptors:12; ODVA, MSC, ODC, HC adaptors; Pole mounting accessories included
Features
High compatibility: can be assembled ODVA, Mini SC, ODC, H-connector Factory-sealed or field assembly 1200N pulling force long term From 6 to 12 ports for single or multi-fiber water proof connectors Available with PLC or splice sleeve for fiber divide IP68 waterproof rating Wall-mounting, aerial installation or holding pole installation Meet IEC 61753-1 standard

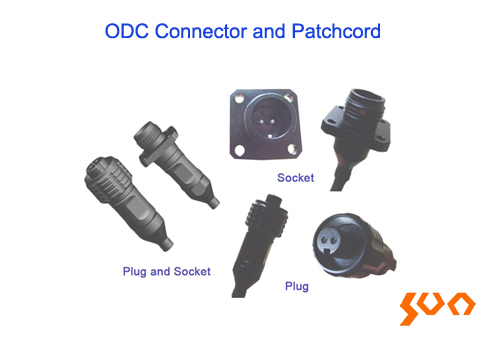

ODC Connector and Patchcord
Model:
IP68; Anti-corrosion protection; ODC-2 and ODC-4 are available
Features
IP68 protection for waterproof and dust proof Anti-corrosion protection ODC-2 and ODC-4 are available High mechanical resistance Blind insertion design, easy and cost effective installation
Fiber Optic Patchcord
Model:
Different interface optional, Easy operation, Low insertion loss
Features
Low insertion loss High return loss Good repeatability
SUN-MAC Multi Cores Mini Armored Cable
Model: SUN-MAC
Indoor mini armored fiber optic cable, 4~48cores
Features
High indentation strength, high tensile strength and gopher protection Small diameter, flexibility and easy bending Suitable to SM fiber and MM fiber (50μm and 62.5μm)
SUN-ODB-RM2C Fiber Optic Terminal Box
Model: SUN-ODB-RM2C
19-inch Rack mount sliding type
Features
19-inch standard structure Sliding design, rack mounted FC square/SC/DSC/ST adapter panel

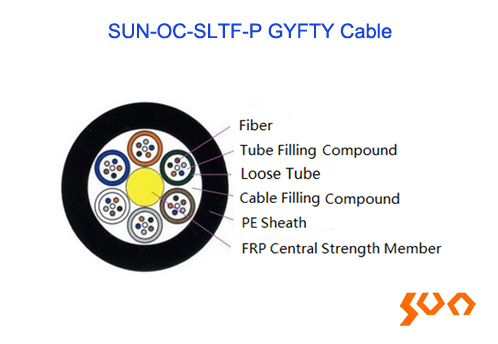

SUN-OC-SLTF-P GYFTY Cable
Model: SUN-OC-SLTF-P
GYFTY, Loose Tube Non-metallic Strength Member & Non-armored Cable, 2~144 cores
Features
Good mechanical and temperature performance High hydrolysis resistance and high strength loose tube Good crush resistance and flexibility High tensile strength ensured by FRP central strength member Good anti-electromagnetism due to non-metallic central strength member (FRP)
