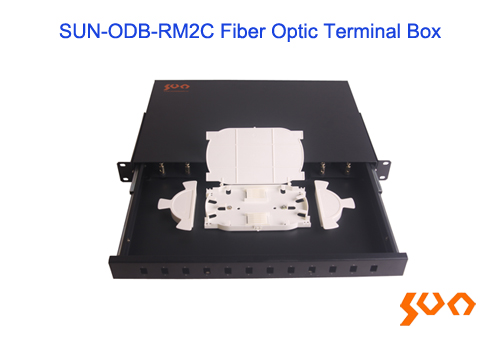

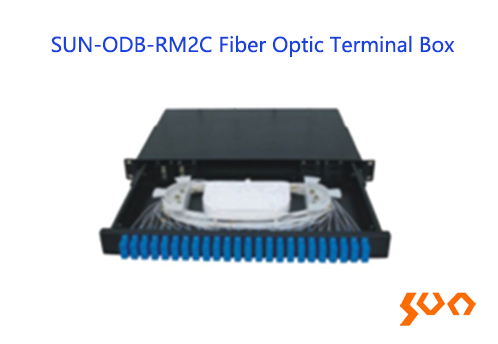

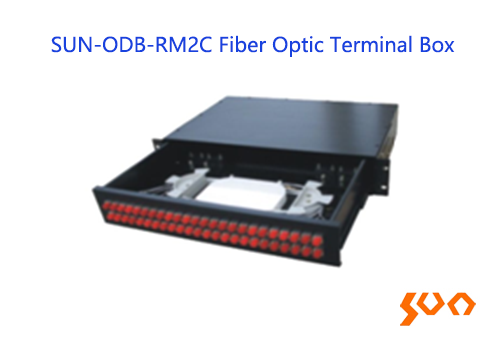

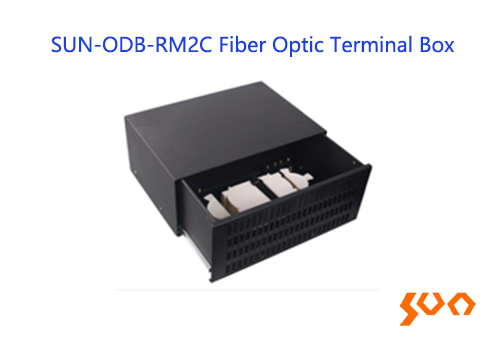

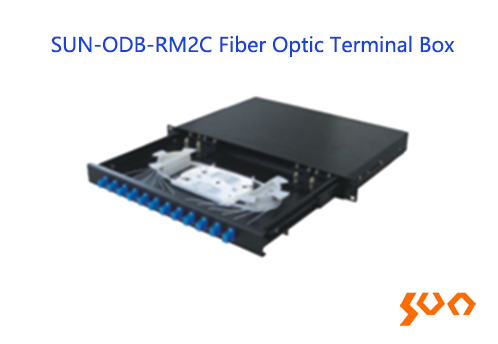

Used in CO as a cable termination 19-inch Rack mount sliding type
Parameters | Specification | |||
Max. No. of Cores | 6/12/24 | 48 | 72 | 96/144 |
Tray Capacity (cores) | 24 (12 slots/tray) | |||
Adapter Type | FC square, SC, DLC (SC type), DSC, ST | |||
Box Material | Cold-rolled steel | |||
Dimensions (mm) | 430 (L) × 300 (W) × 45 (H) | 430 (L) × 300 (W) × 90 (H) | 430 (L) × 300 (W) × 135 (H) | 430 (L) × 300 (W) × 180 (H) |
Weight (kg) | 5.2 | 6.2 | 7.5 | 8.7 |
No. | Name | Unit | Quantity |
1 | Fiber Optic Terminal Box | set | 1 |
2 | Ties (4 pcs/tray) | pieces | According to trays |
3 | Protective Sleeves (12pcs/pack) | pieces | According to cores 6 cores: 12 12 cores: 12 24 cores: 24 48 cores: 48 72 cores: 72 96 cores: 96 144 cores: 144 |
Model | Name | Description |
SUN-ODB-RM2C-6FC | Fiber Optic Terminal Box | 19-inch rack, 1U, sliding type; Max. 6 cores, 1 tray of 24 fibers/tray(12 slots/tray) included, 12-port FC panel (with 6 pieces of dustproof plugs); Adapters NOT included |
SUN-ODB-RM2C-6SC | Fiber Optic Terminal Box | 19-inch rack, 1U, sliding type; Max. 6 cores, 1 tray of 24 fibers/tray(12 slots/tray) included, 12-port SC panel (with 6 pieces of dustproof plugs); Adapters NOT included |
SUN-ODB-RM2C-6ST | Fiber Optic Terminal Box | 19-inch rack, 1U, sliding type; Max. 6 cores, 1 tray of 24 fibers/tray(12 slots/tray) included, 12-port ST panel (with 6 pieces of dustproof plugs); Adapters NOT included |
SUN-ODB-RM2C-6DLC | Fiber Optic Terminal Box | 19-inch rack, 1U, sliding type; Max. 12 cores, 1 tray of 24 fibers/tray(12 slots/tray) included, 12-port duplex LC(SC type) panel (with 6 pieces of dustproof plugs); Adapters NOT included |
SUN-ODB-RM2C-12FC | Fiber Optic Terminal Box | 19-inch rack, 1U, sliding type; Max. 12 cores, 1 tray of 24 fibers/tray(12 slots/tray) included, FC square panel; Adapters NOT included |
SUN-ODB-RM2C-12SC | Fiber Optic Terminal Box | 19-inch rack, 1U, sliding type; Max. 12 cores, 1 tray of 24 fibers/tray(12 slots/tray) included, SC panel; Adapters NOT included |
SUN-ODB-RM2C-12ST | Fiber Optic Terminal Box | 19-inch rack, 1U, sliding type; Max. 12 cores, 1 tray of 24 fibers/tray(12 slots/tray) included, ST panel; Adapters NOT included |
SUN-ODB-RM2C-12DLC | Fiber Optic Terminal Box | 19-inch rack, 1U, sliding type; Max. 24 cores, 1 tray of 24 fibers/tray(12 slots/tray) included, duplex LC(SC type)panel; Adapters NOT included |
SUN-ODB-RM2C-24DLC | Fiber Optic Terminal Box | 19-inch rack, 1U, sliding type; Max. 48 cores, 2 trays of 24 fibers/tray(12 slots/tray) included, duplex LC(SC type) panel; Adapters NOT included |
SUN-ODB-RM2C-24DSC | Fiber Optic Terminal Box | 19-inch rack, 1U, sliding type; Max. 48 cores, 2 trays of 24 fibers/tray(12 slots/tray) included, duplex SC panel; Adapters NOT included |
SUN-ODB-RM2C-24FC | Fiber Optic Terminal Box | 19-inch rack, 1U, sliding type; Max. 24 cores, 1 tray of 24 fibers/tray(12 slots/tray) included, FC square panel; Adapters NOT included |
SUN-ODB-RM2C-24SC | Fiber Optic Terminal Box | 19-inch rack, 1U, sliding type; Max. 24 cores, 1 tray of 24 fibers/tray(12 slots/tray) included, SC panel; Adapters NOT included |
SUN-ODB-RM2C-24ST | Fiber Optic Terminal Box | 19-inch rack, 1U, sliding type; Max. 24 cores, 1 tray of 24 fibers/tray(12 slots/tray) included, ST panel; Adapters NOT included |
SUN-ODB-RM2C-48DSC | Fiber Optic Terminal Box | 19-inch rack, 2U, sliding type; Max. 96 cores, 4 trays of 24 fibers/tray(12 slots/tray) included, duplex SC panel; Adapters NOT included |
SUN-ODB-RM2C-48DLC | Fiber Optic Terminal Box | 19-inch rack, 2U, sliding type; Max. 96 cores, 4 trays of 24 fibers/tray(12 slots/tray) included, duplex LC(SC type) panel; Adapters NOT included |
SUN-ODB-RM2C-48FC | Fiber Optic Terminal Box | 19-inch rack, 2U, sliding type; Max. 48 cores, 2 trays of 24 fibers/tray(12 slots/tray) included, FC square panel; Adapters NOT included |
SUN-ODB-RM2C-48SC | Fiber Optic Terminal Box | 19-inch rack, 2U, sliding type; Max. 48 cores, 2 trays of 24 fibers/tray(12 slots/tray) included; SC panel; Adapters NOT included |
SUN-ODB-RM2C-48ST | Fiber Optic Terminal Box | 19-inch rack, 2U, sliding type; Max. 48 cores, 2 trays of 24 fibers/tray(12 slots/tray) included, ST panel; Adapters NOT included |
SUN-ODB-RM2C-72DSC | Fiber Optic Terminal Box | 19-inch rack, 3U, sliding type; Max. 144 cores, 6 trays of 24 fibers/tray(12 slots/tray) included, duplex SC panel; Adapters NOT included |
SUN-ODB-RM2C-72DLC | Fiber Optic Terminal Box | 19-inch rack, 3U, sliding type; Max. 144cores, 6 trays of 24 fibers/tray(12 slots/tray) included, duplex LC(SC type) panel; Adapters NOT included |
SUN-ODB-RM2C-72FC | Fiber Optic Terminal Box | 19-inch rack, 3U, sliding type; Max. 72 cores, 3 trays of 24 fibers/tray(12 slots/tray) included, FC square panel; Adapters NOT included |
SUN-ODB-RM2C-72SC | Fiber Optic Terminal Box | 19-inch rack, 3U, sliding type; Max. 72 cores, 3 trays of 24 fibers/tray(12 slots/tray) included; SC panel; Adapters NOT included |
SUN-ODB-RM2C-72ST | Fiber Optic Terminal Box | 19-inch rack, 3U, sliding type; Max. 72 cores, 3 trays of 24 fibers/tray(12 slots/tray) included, ST panel; Adapters NOT included |
SUN-ODB-RM2C-96FC | Fiber Optic Terminal Box | 19-inch rack, 4U, sliding type; Max. 96 cores, 4 trays of 24 fibers/tray(12 slots/tray) included, FC square panel; Adapters NOT included |
SUN-ODB-RM2C-96SC | Fiber Optic Terminal Box | 19-inch rack, 4U, sliding type; Max. 96 cores, 4 trays of 24 fibers/tray(12 slots/tray) included, SC panel; Adapters NOT included |
SUN-ODB-RM2C-96ST | Fiber Optic Terminal Box | 19-inch rack, 4U, sliding type; Max. 96 cores, 4 trays of 24 fibers/tray(12 slots/tray) included, ST panel; Adapters NOT included |
SUN-ODB-RM2C-96DLC | Fiber Optic Terminal Box | 19-inch rack, 4U, sliding type; Max. 192 cores, 8 trays of 24 fibers/tray(12 slots/tray) included, duplex LC(SC type) panel; Adapters NOT included |
SUN-ODB-RM2C-144SC | Fiber Optic Terminal Box | 19-inch rack, 4U, sliding type; Max. 144 cores, 6 trays of 24 fibers/tray(12 slots/tray) included, SC panel; Adapters NOT included |
SUN-ODB-RM2C-144DLC | Fiber Optic Terminal Box | 19-inch rack, 4U, sliding type; Max. 288 cores, 12 trays of 24 fibers/tray(12 slots/tray) included, duplex LC(SC type) panel; Adapters NOT included |
SUN-ODB-RM2C-144DSC | Fiber Optic Terminal Box | 19-inch rack, 4U, sliding type; Max. 288 cores, 12 trays of 24 fibers/tray(12 slots/tray) included, duplex SC panel; Adapters NOT included (MOQ 20) |
Fiber Optic Patch Cords and Pigtails
Model:
Different interface optional, Easy operation, Low insertion loss
Features
SUN-AD Fiber Optic Adaptors
Model: SUN-AD
The adapters including FC, SC, ST, LC, MTRJ, MPO (PC ⁄ APC, SM ⁄ MM)
Features
SUN-OT5000 OTDR
Model: SUN-OT5000
Can test SM and MM fibers, optional light source, VFL and power meter
Features
SUN-1000 Ethernet Media Converter
Model: SUN-1000
10 ⁄ 100 ⁄ 1000Mbps, 1xRJ45, 1xOptical port
Features
SUN-IC-B Indoor Breakout Fiber Optic Cable
Model: SUN-IC-B
B-type Indoor Cable (2 ~ 48 cores)
Features
SUN-OC-SLT-SP Stranded Loose Tube Light-armored (Steel Tape) Cable (GYTS)
Model: SUN-OC-SLT-SP
GYTS, Loose Tube Light-armored (Steel Tape) Cable, 2-144cores
Features

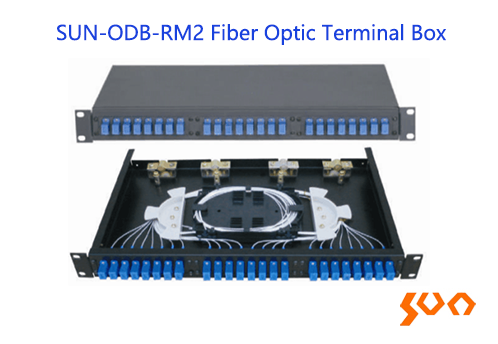

SUN-ODB-RM2 Fiber Optic Terminal Box
Model: SUN-ODB-RM2
Max 48 cores, 19" standard rack size
Features

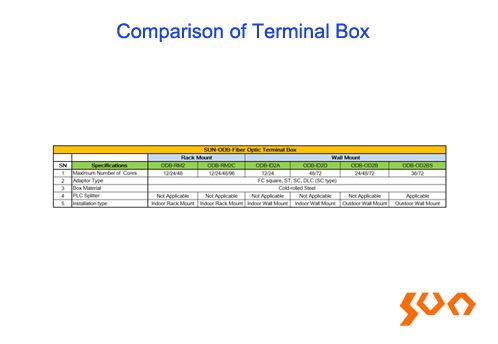

Comparison of Terminal Box
