Position:
Home>
Solutions
>Air-blown Fiber Optic Solution

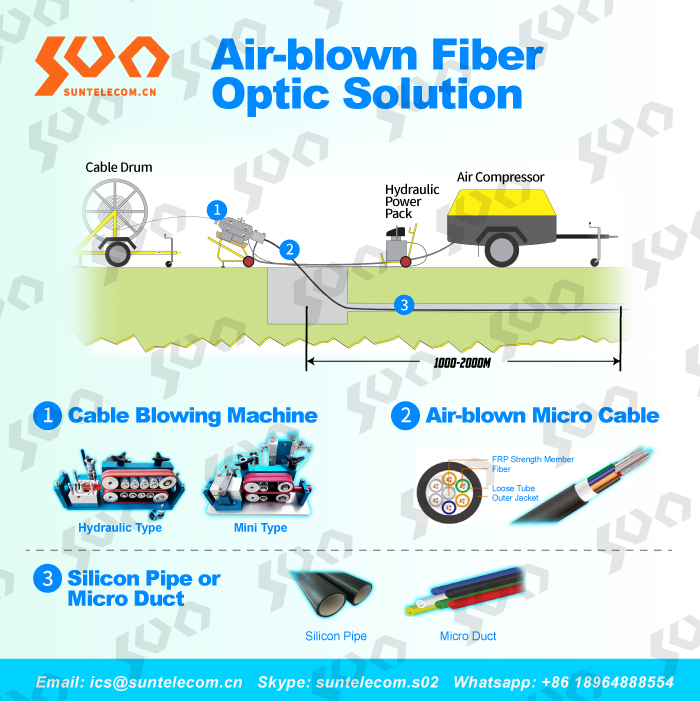

High investment cost and low optical fiber utilization rate are the main problems of cable layout; air blowing cabling provides the solution. That technology of air-blown cabling is to lay optical fiber in the plastic duct by air blown. It reduces the laying cost of the optical cable and hoisting speed of construction; due to air blowing microfiber, installation air blown into micro ducts for improving the utilization rate of communication pipeline. In addition, air-blown fiber can not only reduce the initial investment but also gradually invest in accordance with the growth of customer demand and the existing pipeline resources can be reused. Especially ideal for use in FTTH, access network and etc…
Sun Telecom provides two different kinds of solutions in air-blown fiber optic cabling. One is the air blown micro cable with micro duct and mini type cable blowing machine and the other is general fiber optic cable with silicon tube and hydraulic type cable blowing machine.
• A flexible, secure, cost-effective cabling system
• Powerful cable blowing machine
• Suitable for variety environments
• Small diameter and low weight optic cable, suitable for air blown
• Strong compression silicon duct, suitable for direct buried laying
• Improve utilization effectively by using micro duct
SUN-SP-1-HP Silicon Pipe
Model: SUN-SP-1-HP
Low friction, corrosion-resistance, high sealing performance, suitable for outdoor cable
Features
SUN-MD-HP Micro Duct
Model: SUN-MD-HP
Low friction and small diameter, suitable for air blown micro cable
Features
SUN-ABM Cable Blowing Machine
Model: SUN-ABM
Small and lightweight, Strong power, Suitable for Multiple environments
Features
SUN-OC-ABMC Air-blowing Micro Cable (GCYFY)
Model: SUN-OC-ABMC
Stranded loose tube, FRP central strength member and single PE jacket; 2~288 fibers
Features
