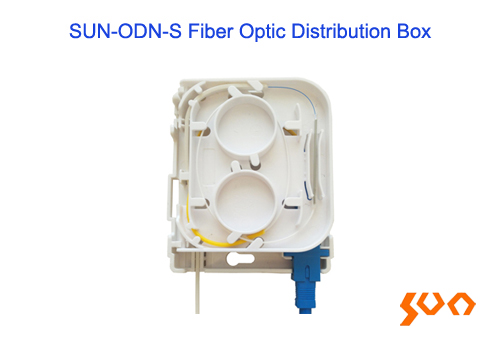

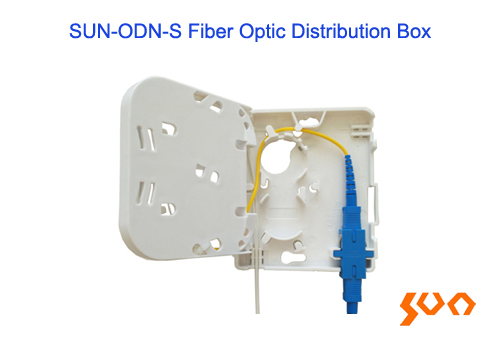

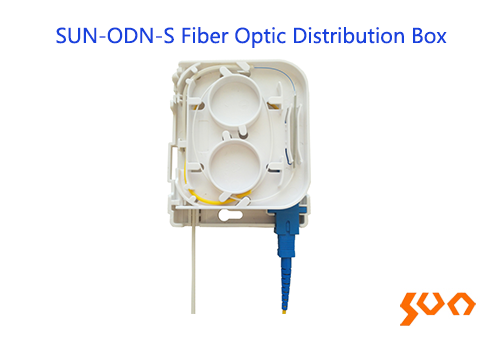

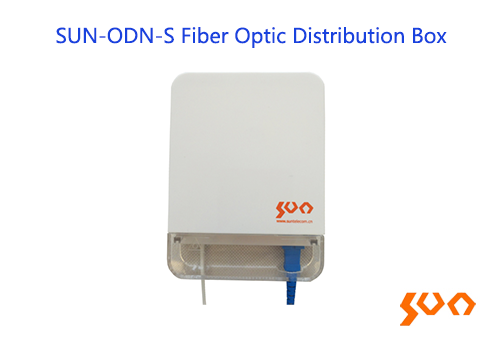

Indoor, Max adaptors: 1 or 2, SC adaptors
| Parameters | Specification | |
| Model | SUN-ODN-S1 | SUN-ODN-S2 |
| Max. No. of Adapters | 1 | 2 |
| Adaptor Type | SC, DLC (SC type) | Duplex SC |
| Max. Cable Diameter (mm) | 3 | |
| Material | ABS | |
| Operating Temp (°C) | -25 ~ +55 | |
| Dimensions (mm) | 116 (L) × 86 (W) × 23 (H) | |
| Weight (kg) | 0.2 | |
| No. | Name | Unit | Quantity |
| 1 | Fiber Optic Distribution Box | set | 1 |
| 2 | Protective Sleeves | pieces | 2 |
| 3 | Tie | pieces | 2 |
| 4 | Fixing Screw | sets | 2 |
| Model | Name | Description |
| SUN-ODN-S1 | Fiber Optic Distribution Box | Suitable for 1 piece of SC or duplex LC (SC type) adapter; Adapter NOT included |
| SUN-ODN-S2 | Fiber Optic Distribution Box | Suitable for 1 piece of duplex SC adapter; Adapter NOT included |
