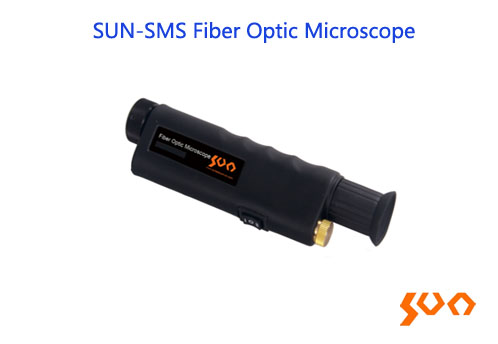

SUN-SMS Fiber Optic Microscope

Model: SUN-SMS

mini handheld, 100X/200X, 1.25/2.5/3.17mm adapter

    Key Features

  • UPC or APC end face inspection
  • Built-in infrared attenuation filter for safety and reliability
  • On/off switch control
  • Precise focal length adjustment
  • Small size and easy to carry
  • Suitable for various of fiber optic connector end faces inspection
  • Description
  • Specifications
  • Ordering Information
  • Applications
  • FAQ
  • Product Video
  •  Sun Telecom’s SUN-SMS series of mini handheld fiber optic microscope utilizes a white light LED for coaxial and oblique axis illumination to quickly inspect various types of fiber optic connector end faces for depressions, scratches, dirt, etc. It is convenient to carry for the small size and especially suitable for outdoor work.


  • Specifications
    Parameters Specification
    Models SUN-SMS100U SUN-SMS200U
    Optical Magnification 100 x 200 x
    Light Source White LED, rated for 100,000 hours
    Control Method on/off switch
    Adaptor Interface 3.17 mm (SMA905) male adaptor 2.5 mm UPC universal male adaptor (FC/SC/ST)
    1.25 mm UPC universal male adaptor (LC/MU)
    3.17 mm (SMA905) male adaptor (optional)
    Attenuation Filter Performance 30 dB (1310 ~ 1500 nm)
    20.5 dB (850 ~ 1310 nm)
    Power 3 x LR44 button cell
    Dimensions (mm) 190 (L) x 50 (W) x 31 (H)
    Weight (kg) 0.34

    Standard Package

    No. Name Unit Quantity
    1 Fiber Optic Microscope set 1
    2 3.17 mm (SMA905) Male Adaptor (Only for SUN-SMS100U) piece 1
    3 2.5mm UPC Universal Male Adaptor (Only for SUN-SMS200U) piece 1
    4 1.25mm UPC Universal Male Adaptor (Only for SUN-SMS200U) piece 1
    5 LR44 button cell pieces 3
    6 Soft Bag piece 1
    7 User’s Manual piece 1

    Optional Accessories

    No. Name Unit Quantity
    1 3.17mm (SMA905) Male Adaptor piece 1
    2 1.25mm APC Universal Male Adaptor piece 1


  • Ordering Information
    Model Name Description
    SUN-SMS100U Fiber Optic Microscope Mini handheld, 100x; 3.17 mm (SMA905) male adaptor included
    SUN-SMS200U Fiber Optic Microscope Mini handheld, 200x; 2.5 mm UPC universal male adaptor and 1.25 mm UPC universal male adaptor included
    SUN-SMS-317 Fiber Optic Adaptor 3.17 mm (SMA905) male adaptor; Used for SUN-SMS100U/200U fiber optic microscope
    SUN-SMS200U-A125 Fiber Optic Adaptor 1.25 mm APC universal male adaptor; Used for SUN-SMS200U fiber optic microscope


  • ● Fiber optic connector end face inspection
