Position: Home > Products > Passive Components > Fiber Optic Fast Connectors

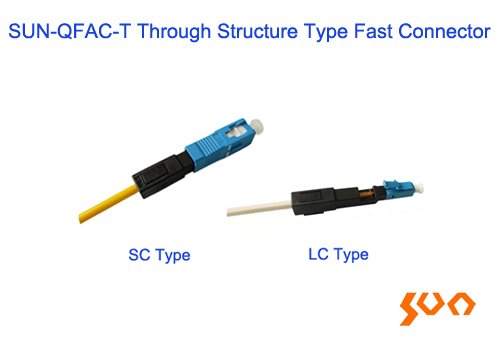

SUN-QFAC-T Fast Connector


Through structure type, SC/FC/LC optional

    Key Features

  • Through structure type
  • Easy to assembly
  • Over 98% success rate
  • More than 5 times for re-assembling
  • Life Span over 30 years
  • Description
  • Specifications
  • Ordering Information
  • Applications
  • FAQ

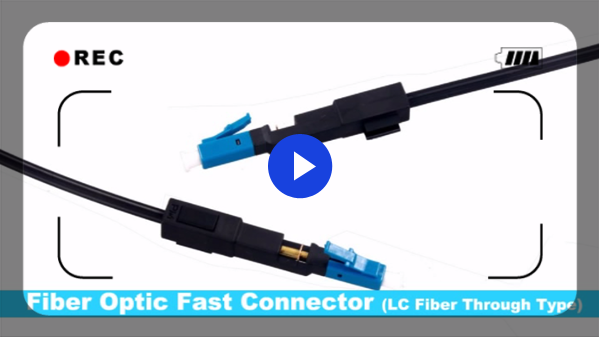

  • Product Video
  • Sun Telecom's SUN-QFAC-T through structure type fast connector is easy to operate and carry. It is widely used in FTTH projects.
  • Parameters Specification
    Applicable Cable 3.0 x 2.0mm drop cable or 0.9mm round cable (2.0, 3.0mm round cable are optional)
    Fiber Diameter (um) 125
    Tight Cladding Diameter (um) 250
    Fiber Mode SM/MM
    Insert Loss (dB) ≤ 0.3
    Return Loss (dB ) ≥ 45 (SM UPC)
    ≥ 55 (SM APC)
    ≥ 35 (MM)
    Tensile Strength (N) > 20 (0.9mm round cable: 10)
    Operating Temperature (°C) - 20 ~ +75
    Vibration and Impaction at 500 Times △IL≤ 0.25dB
    △RL≤ 5dB

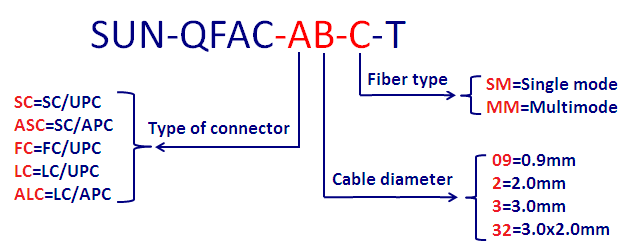

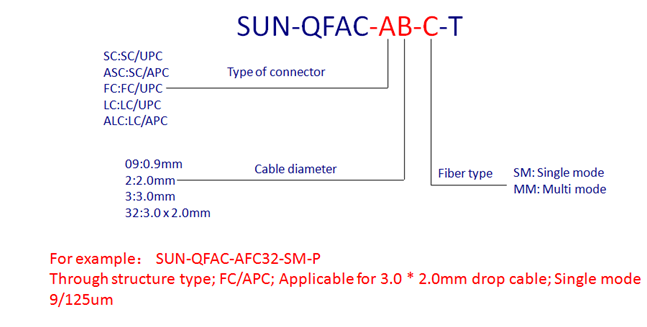

  • Example: SUN-QFAC-AFC32-SM-T
    Through structure type, FC/APC; Applicable for 3.0 x 2.0mm drop cable; Single mode 9/125um

  • ● FTTH Project
    ● Cabling system
