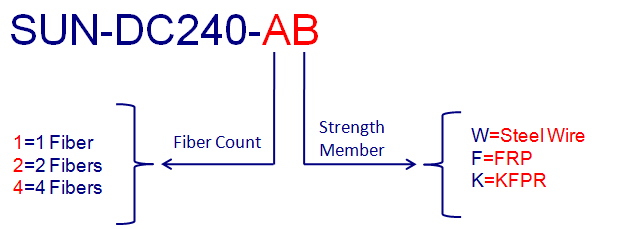

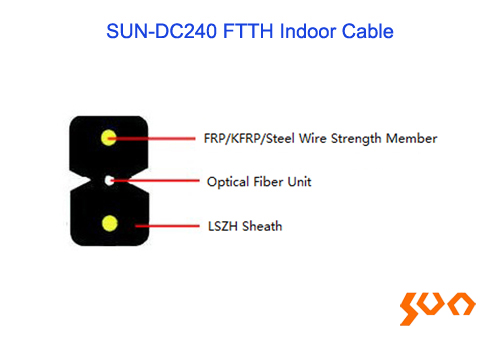

Drop Cable, 1~4 cores, G657, flame retardent, for FTTH application
Parameters | Specification | |
Fiber Type | SM G.657A1 | |
Mode-field Diameter (um) | 8.6~9.2±0.4 (1310nm) | |
Cladding Diameter (um) | 125±0.7 | |
Coating Diameter (um) | 245±10 | |
Core-Cladding Concentricity (um) | ≤0.5 | |
Cladding Non-circularity (%) | ≤1.0 | |
Cable Cut-off Wavelength (nm) | ≤1260 | |
Fiber Attenuation (dB/km) | ≤0.35 (1310nm) | |
≤0.21 (1550nm) | ||
Fiber Macro bending Loss (dB) | 10mm radius, 1 turn | ≤0.75 (1550nm) |
15mm radius, 10 turns | ≤0.25 (1550nm) |
Parameters | Specifications | |||
Fiber Core | 1 | 2 | 4 | |
Cable Dimension (mm) | (2.0±0.1) × (3.0±0.1) | |||
Cable Weight (kg/km) | 8 | 8.5 | 10 | |
Tensile Strength (N) | Short Term | 60 (FRP), 80 (KFRP), 200 (Steel Wire) | ||
Long Term | 30 (FRP), 40 (KFRP), 100 (Steel Wire) | |||
Crush Resistance (N/100mm) | Short Term | 1000 | ||
Long Term | 300 | |||
Bending Radius (mm) | Dynamic | 60 | ||
Static | 30 | |||
Cable Attenuation (After Cable) (dB/km) | SM Fiber @1310nm | ≤0.4 | ||
SM Fiber @1550nm | ≤0.3 | |||
Operating Temperature (°C) | -20 ~ +60 | |||
Storage Temperature (°C) | -20 ~ +60 |

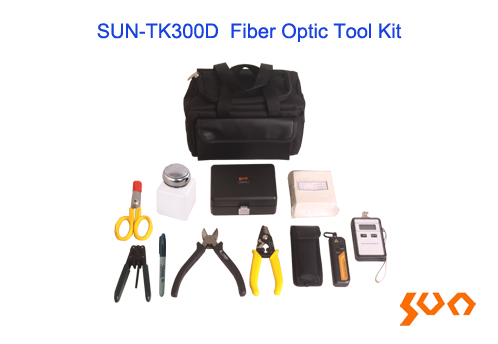

SUN-TK300D Fiber Optic Tool Kit
