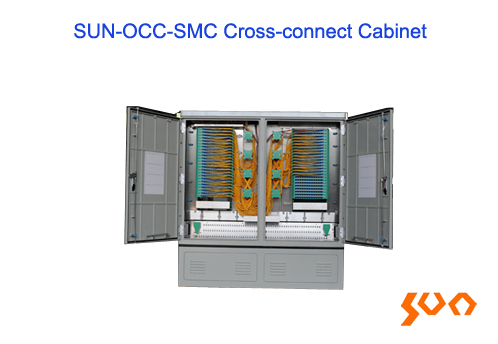

SUN-OCC-SMC Optical Cross-connect Cabinet

Position: Home > Products > Cable Management > Optical Cross-connect Cabinets

Model: SUN-OCC-SMC

Material: SMC, Max cores: 96/144/288/576/1152, IP65

Key Features

Cabinets with SMC material: heat insulation, waterproof and good corrosion resistance
High performance rubber seals: effective rain and dust proof for outdoor environment
Modules individually removable: easy to construct and maintain
Reliable cable fixing and grounding protection devices
Safe and reliable fiber optic storage and protection

Description
Specifications
Ordering Information
Applications
FAQ
Product Video

　Sun Telecom's SUN-OCC-SMC series fiber optic cross-connect cabinets are mainly used for termination and cross-connections between cabling elements. This series of OCC's are with excellent insulation, high water-proof and dust-proof performance. These are widely applied in fiber optic networks, PON (GPON, EPON, BPON, APON) OSP networks and WDM/CWDM/DWDM networks.

Specifications

Parameters	Specification
Model	SUN-OCC-SMC96	SUN-OCC-SMC144	SUN-OCC-SMC288	SUN-OCC-SMC576	SUN-OCC-SMC1152
Max. No. of Cores	96	144	288	576	1152
Splitter Type	Box type
Max. No. of Splitters	2	6	10	20	32
Splice Tray Type	24 cores/tray	12 cores/tray (integrated splice tray)
Max. No. of Splice Tray	8	14 (12+2)	26 (24+2)	52 (48+4)	100 (96+4)
Cabinet Material	SMC

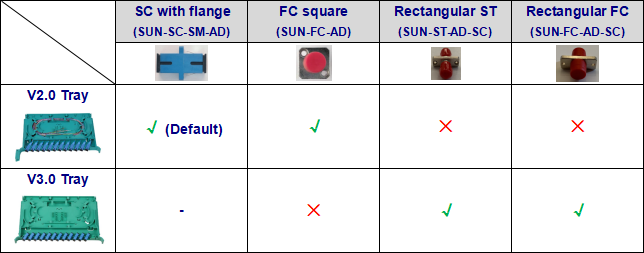

Adapter Panel	FC square, SC, DLC (SC type), (ST and FC small D type can be customized)
Insulation Resistance (MΩ)	1000 @500V (DC)
Withstanding Voltage (V/min)	3000 (DC), no breakdown, no flashover
Installation Type	Wall, pole	Ground, pole	Ground, pole	Ground	Ground
Protection Rating	IP65
Operating Temperature (°C)	-40~ +60
Dimensions (mm)	710(H) x 550(W) × 180(D)	1035 (H) x 555 (W) × 310(D)	1450(H) x 750(W) × 320(D)	1450(H) x 750(W) × 540(D)	1550(H) x 1460(W) × 620(D)
Weight (kg)	36.5	79	119	159	310

Standard Package

Model			SUN-OCC-96SMC	SUN-OCC-144SMC	SUN-OCC-288SMC	SUN-OCC-576SMC	SUN-OCC-1152SMC
No.	Product	Unit	Quantity
1	Cabinet	set	1	1	1	1	1
2	φ16~25 Hose Clamps	pieces	-	4	4	8	16
3	φ10 ~ 16 Hose Clamps	pieces	4	4	4	8	16
4	φ8 Pipes	meters	2	2	2	4	8
5	Protective Tubes	meters	3	8	8	16	32
6	Sludge	kg	0.25	0.25	0.35	0.7	1.4
7	Ties	pieces	30	30	30	60	120
8	Protective Sleeves	pieces	192	168	312	624	1200
9	Keys	pieces	2	2	2	2	4
10	Tapes	pieces	1	1	1	2	4

Model	Name	Description
SUN-OCC-96SMC-SC-W	Fiber Optic Cross-connect Cabinet	Adaptor panel for max. 96 pieces of adapters, SC panel; 8 pieces of splicing trays (24 cores/tray) and accessories for wall application included; Pigtails, adapters and splitters NOT included; Material: SMC; Dimensions (mm): 710 (H) x 550 (W) × 180 (D)
SUN-OCC-96SMC-SC-P	Fiber Optic Cross-connect Cabinet	Adaptor panel for max. 96 pieces of adapters, SC panel; 8 pieces of splicing trays (24 cores/tray) and accessories for pole application included; Pigtails, adapters and splitters NOT included; Material: SMC; Dimensions (mm): 710 (H) x 550 (W) × 180 (D)
SUN-OCC-96SMC-FC-W	Fiber Optic Cross-connect Cabinet	Adaptor panel for max. 96 pieces of adapters, FC (square) panel; 8 pieces of splicing trays (24 cores/tray) and accessories for wall application included; Pigtails, adapters and splitters NOT included; Material: SMC; Dimensions (mm): 710 (H) x 550 (W) × 180 (D)
SUN-OCC-96SMC-FC-P	Fiber Optic Cross-connect Cabinet	Adaptor panel for max. 96 pieces of adapters, FC (square) panel; 8 pieces of splicing trays (24 cores/tray) and accessories for pole application included; Pigtails, adapters and splitters NOT included; Material: SMC; Dimensions (mm): 710 (H) x 550 (W) × 180 (D)

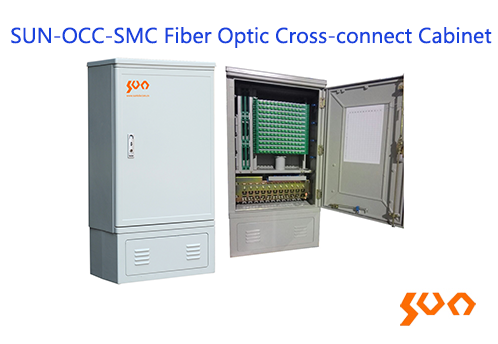

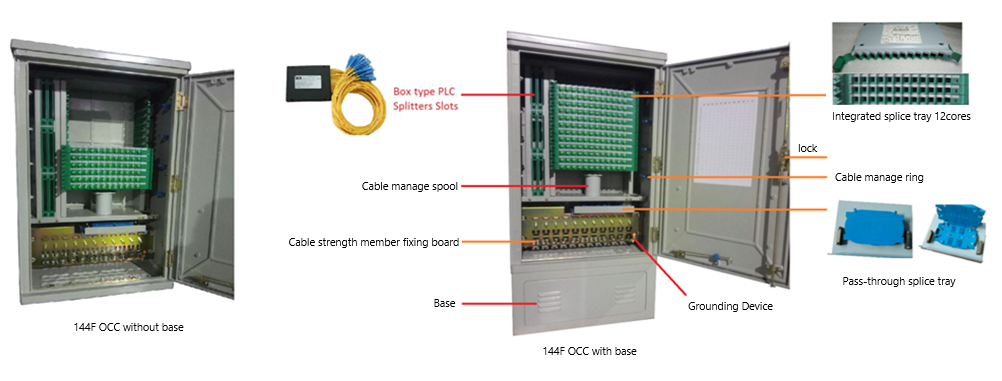

SUN-OCC-144SMC	Fiber Optic Cross-connect Cabinet	Adaptor panel for max. 144 pieces of adapters; 14 pieces of splice and distribution integrated trays (12 cores/tray), 6 splitter slots included; Pigtails, adapters and splitters NOT included; Material: SMC; With base; Dimensions (mm): 1035 (H) x 555 (W) × 310(D)
SUN-OCC-144SMC-P	Fiber Optic Cross-connect Cabinet	Adaptor panel for max. 144 pieces of adapters; 14 pieces of splice and distribution integrated trays (12 cores/tray), and 6 splitter slots included; Pigtails, adapters and splitters NOT included; Material: SMC; Without base, pole mounting accessories included; Dimensions (mm): 1035 (H) x 555 (W) × 310(D)

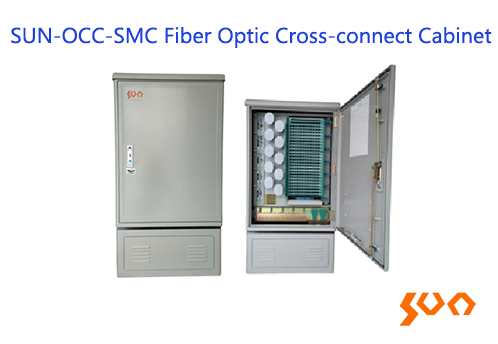

SUN-OCC-288SMC	Fiber Optic Cross-connect Cabinet	Adaptor panel for max. 288 pieces of adapters; 26 pieces of splice and distribution integrated trays (12 cores/tray), and 10 splitter slots included; Pigtails, adapters and splitters NOT included; Material: SMC; With base; Dimensions (mm): 1450(H) x 750(W) × 320(D)
SUN-OCC-288SMC-P	Fiber Optic Cross-connect Cabinet	Adaptor panel for max. 288 pieces of adapters; 26 pieces of splice and distribution integrated trays (12 cores/tray), 10 splitter slots included; Pigtails, adapters and splitters NOT included; Material: SMC; Without base, pole mounting accessories included; Dimensions (mm): 1450(H) x 750(W) × 320(D)
SUN-OCC-576SMC	Fiber Optic Cross-connect Cabinet	Adaptor panel for max. 576 pieces of adapters; 52 pieces of splice and distribution integrated trays (12 cores/tray), 20 splitter slots included; Pigtails, adapters and splitters NOT included; Material: SMC; With base; Dimensions (mm): 1450(H) x 750(W) × 540(D)

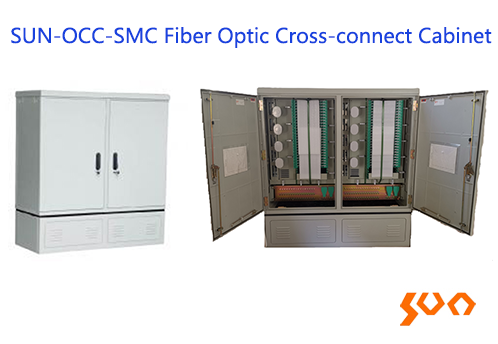

SUN-OCC-1152SMC	Fiber Optic Cross-connect Cabinet	Adaptor panel for max. 1152 pieces of adapters; 100 pieces of splice and distribution integrated trays (12 cores/tray), 32 splitter slots included; Pigtails, adapters and splitters NOT included; Material: SMC; With base; Dimensions (mm): 1550(H) x 1460(W) × 620(D)

● FTTH access networks
● Telecommunication networks
● CATV networks
● Local Area Networks
