SUN-PLC Planar Light Wave Circuit (PLC) Splitters

Model: SUN-PLC

Splitting ratio: 1x2, 1(2)x4, 1(2)x8, 1(2)x16, 1(2)x32, 1(2)x64

    Key Features

  • Low insertion loss
  • Low PDL
  • High reliability and stability
  • Good channel uniformity
  • Description
  • Specifications
  • Ordering Information
  • Applications
  • FAQ
  • Product Video
  • Sun Telecom’s SUN-PLC series of planar light wave circuit (PLC) splitter is optical power management device which uses silica optical waveguide technology. It has small size, high reliability, wide operating wavelength range. It is widely used in PON networks and realizes optical signal power splitting.
  • Specifications
    Parameters Specification
    Type 1x2 1 x 4 1 x 8 1 x 16 1 x 32 1 x 64
    Operating Wavelength (nm) 1260~1650
    Insertion Loss (dB) ≤3.8 ≤7.1 ≤10.2 ≤13.5 ≤16.8 ≤20.1
    Loss Uniformity (dB) ≤0.5 ≤0.6 ≤0.8 ≤1.2 ≤1.5 ≤2.0
    PDL (dB) ≤0.2 ≤0.3 ≤0.3 ≤0.3 ≤0.3 ≤0.5
    Return Loss (dB) ≥50 (UPC)
    ≥55 (APC)
    Directivity (dB) ≥55
    Wavelength Dependent Loss (dB) ≤1.0
    Pigtail Length (m) 1.0 (±0.1) or customer specified
    Fiber Type ITU G657A1 or customer specified
    Operating Temperature (°C) -40 ~ 85
    Storage Temperature (°C) -40 ~ 85
    Type 2 x 2 2 x 4 2 x 8 2 x 16 2 x 32 2 x 64
    Operating Wavelength (nm) 1260-1650
    Insertion Loss (dB) ≤4.1 ≤7.4 ≤10.5 ≤13.8 ≤17.1 ≤20.3
    Loss Uniformity (dB) ≤0.5 ≤0.6 ≤0.8 ≤1.2 ≤1.5 ≤2.0
    PDL (dB) ≤0.2 ≤0.3 ≤0.3 ≤0.3 ≤0.3 ≤0.5
    Return Loss (dB) ≥50 (UPC)
    ≥55 (APC)
    Directivity (dB) ≥55
    Wavelength Dependent Loss (dB) ≤1.0
    Pigtail Length (m) 1.0 (±0.1) or customer specified
    Fiber Type ITU G657A1 or customer specified
    Operating Temperature (°C) -40 ~ 85
    Storage Temperature (°C) -40 ~ 85
    Note: 1.All above specifications do not include connector loss and adaptor loss.
         2. if pigtail length of ABS box type is above 1.5m, the insertion loss will add max.0.3dB.
         3. The nominal color of 0.9mm Hytrel tubes used on blockless type PLC splitter are white.

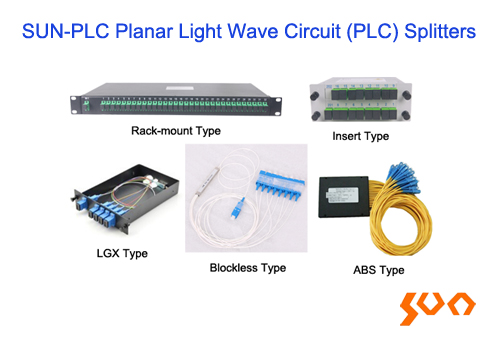

    Dimensions
    PLC Type Module (mm) Blockless (mm) Rack-Mount
    (mm)    		 Insert (mm) LGX (mm) Bare Fiber (mm)
    1 x 2 100 x 80 x 10 60 x 7 x 4 483 x 250 x 44 130x 100 x 25 155.5 x129 x29 40 x 4 x 4
    1 x 4
    1 x 8
    1 x 16 120 x 80 x 18 60 x 12 x 4 130 x 100 x 50 - 50 x 7 x 4
    1 x 32 80 x 20 x 6 130 x 100 x 102 -
    1 x 64 140 x 114 x 18 100 x 40 x 6 483 x 250 x 88 130 x 100 x 200 - 80 x 20 x 6
    2 x 2 100 x 80 x 10 60 x 7 x 4 483 x 250 x 44 130x 100 x 25 - 40 x 4 x 4
    2 x 4 - 50 x 7 x 4
    2 x 8 -
    2 x 16 120 x 80 x 18 60 x 12 x 4 130 x 100 x 50 -
    2 x 32 80 x 20 x 6 130 x 100 x 102 - 80 x 20 x 6
    2 x 64 140 x 114 x 18 100 x 40 x 6 483 x 250 x 88 130 x 100 x 200 -

  • Ordering Information
    1) ABS & Blockless Type

     For blockless type PLC, we can provide both 250um bare fiber (color options) and 900um loose-tube fiber.
     For 900um loose-tube fiber, the nominal color of Hytrel tubes used are white.

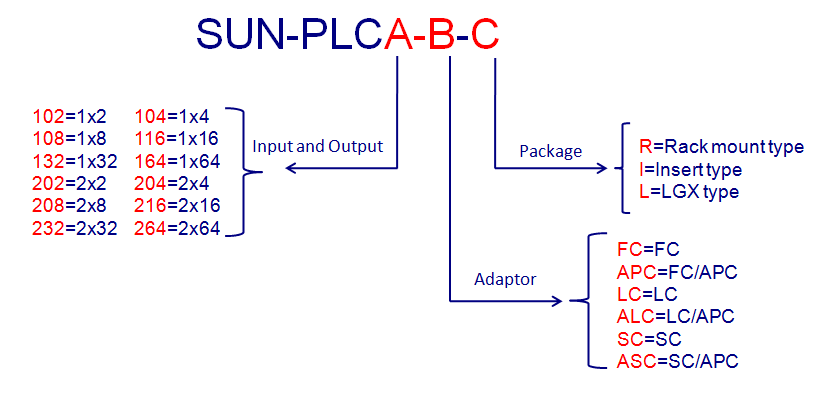

    2) Rack mount Type, Insert Type, LGX Type

    ● For rack mount type PLC, its max splitting ratio is 2:64
    ● For insert type PLC, its max splitting ratio is 1:64
    ● For LGX type PLC, its max splitting ratio is 2:32

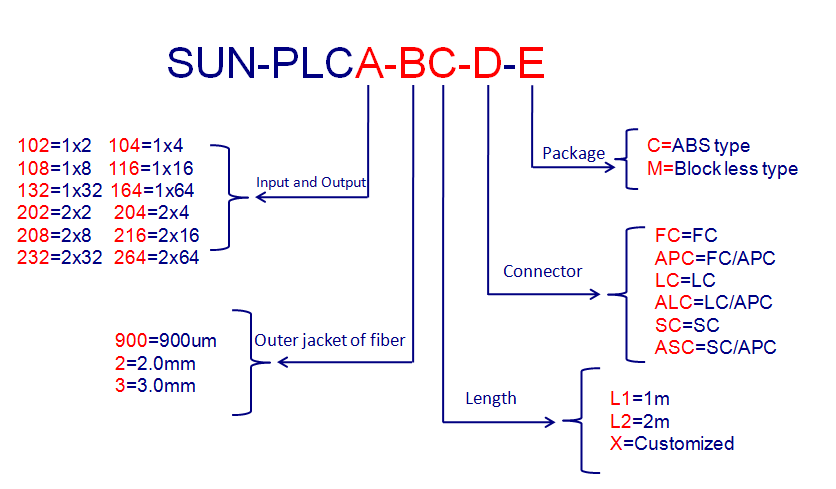

    Example: SUN-PLC116-2L1-FC-C
    1x16 PLC splitter, module type; 2.0mm PVC fiber jacket, G657A1, with FC/UPC connectors; Fiber length: 1m; ABS box size: 120mm (L) x 80mm (W) x 18mm (H)

  • ● FTTH project
    ● CATV network
    ● PON network
