Outdoor wall mount, Max cores: 36 ⁄ 72, IP65, 1:32 1:64 Splitter

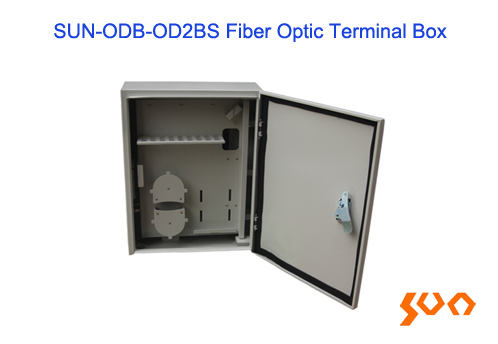

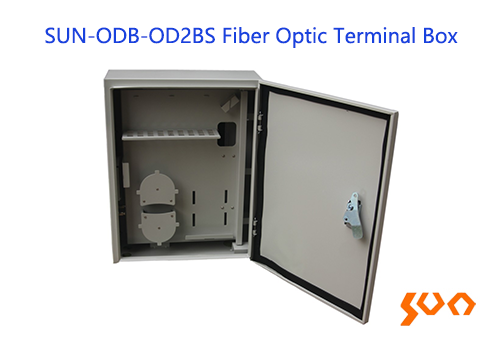

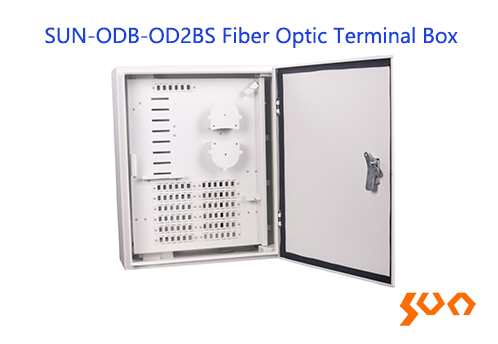

Sun Telecom's SUN-ODB-OD2BS series fiber optic terminal boxes can be installed in the corridors, basements, rooms and building’s exterior walls in FTTH projects. As a passive optical access point, fiber optic splicing, splitting and distributing can be done inside boxes.
| Parameters | Specification | |
| Model | SUN-ODB-OD2BS-36 | SUN-ODB-OD2BS-72 |
| Max Number of Cores | 36 | 72 |
| Adapter Type | FC square, SC, ST, DLC (SC type) | |
| Box Material | Cold-rolled steel | |
| Number of Inlets and Outlets | 2 in 64 out | |
| Cable Diameter (mm) | 24 | |
| Splitter Type | ABS box (module) | |
| Dimensions (mm) | 450 (L) × 350 (W) × 150 (H) | 550 (L) × 450 (W) × 220 (H) |
| Weight (kg) | 8.2 | 9.2 |
| No. | Name | Unit | Quantity |
| 1 | Fiber Optic Terminal Box | set | 1 |
| 2 | Protective Sleeves | pieces | 36 or 72 |
| 3 | Keys | pieces | 2 |
| 4 | Water Proof Covers | sets | 2 |
| 5 | Hose Clamp | piece | 2 |
| 6 | Wall Bracket | set | 1 |
| 7 | Screw Set | set | 1 |
| Model | Name | Description |
| SUN-ODB-OD2BS-36FC | Fiber Optic Terminal Box | Outdoor type; Max. 36 cores; FC square panel; Can be installed one 1: 32 PLC splitter; Wall-mounted; PLC splitter and adapter NOT included |
| SUN-ODB-OD2BS-36SC | Fiber Optic Terminal Box | Outdoor type; Max. 36 cores; SC panel; Can be installed one 1:32 PLC splitter; Wall-mounted; PLC splitter and adapters NOT included |
| SUN-ODB-OD2BS-36ST | Fiber Optic Terminal Box | Outdoor type; Max. 36 cores; ST panel; Can be installed one 1: 32 PLC splitter; Wall-mounted; PLC splitter and adapter NOT included |
| SUN-ODB-OD2BS-72FC | Fiber Optic Terminal Box | Outdoor type; Max. 72 cores; FC square panel; Can be installed two 1: 32 PLC or one 1:64 splitters; Wall-mounted; PLC splitter and adapter NOT included |
| SUN-ODB-OD2BS-72SC | Fiber Optic Terminal Box | Outdoor type; Max. 72 cores; SC panel; Can be installed two 1: 32 PLC or one 1:64 splitters; Wall-mounted; PLC splitter and adapter NOT included |
| SUN-ODB-OD2BS-72ST | Fiber Optic Terminal Box | Outdoor type; Max. 72 cores; ST panel; Can be installed two 1: 32 PLC or one1:64 splitters; Wall-mounted; PLC splitter and adapter NOT included |
Fiber Optic Patchcord
Model:
Different interface optional, Easy operation, Low insertion loss
Features
Low insertion loss High return loss Good repeatability

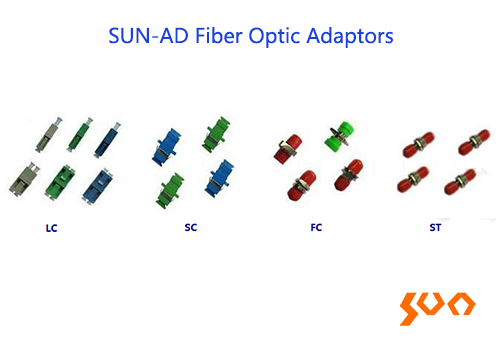

SUN-AD Fiber Optic Adaptor
Model: SUN-AD
The adapters including FC, SC, ST, LC, MTRJ, MPO (PC ⁄ APC, SM ⁄ MM)
Features
Different interfaces Easy operation Low insertion loss
SUN-GE9100B-VS Optical Line Terminal (OLT)
Model: SUN-GE9100B-VS
2/4/8/16 PON ports
Features
Space saving Convenient for installation and maintenance Maximum 16×PON, 8×Gigabit optical uplink and 8×Gigabit copper uplink ports
SUN-OT5000 OTDR
Model: SUN-OT5000
Can test SM and MM fibers, optional light source, VFL and power meter
Features
Quick startup FTTX in-service testing (Up to1:64 splitter) Built-in PON power meter for Triple-play testing (Only for SUN-OT5000-PON) High configuration series include optical light source, optical power meter, visual fault locator (VFL) and Optical Connector Inspector (MCI) modules USB data interface (PC software for batch data processing and report output) Dustproof and shockproof (2-meter drop test) Light weight, small size, rugged design and simple operation Visual link image software (Optional)
SUN-1000 Media Converter
Model: SUN-1000
10/100/1000Mbps, 1xRJ45, 1xOptical port
Features
1000Mbps transmission rate Compliance with IEEE standards MTBF of more than 50000 hours Full & half duplex operation and auto-negotiation Electric interface self-adapting parallel/crossover connections Longest 1552 byte data packet transmission QoS ensuring VoIP data packet transmission STP Spanning Tree forming a redundant network Low power consumption and low heat for longtime stable operation Single/Multi mode and Single/Dual fiber transmission modes Network Management Function (optional)
SUN-IC-B Indoor Breakout Fiber Optic Cable
Model: SUN-IC-B
B-type Indoor Cable (2 ~ 24 cores)
Features
Excellent tensile strength ensured by stranded FRP strength member structure Aramid yarn as additional strength member providing good tensile strength

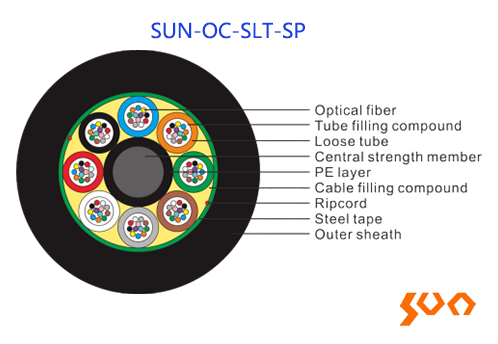

SUN-OC-SLT-SP GYTS Cable
