SUN-OPM200 Optical Power Meter

Model: SUN-OPM200

FC ⁄ SC ⁄ ST, REF, backlight control, USB port

    Key Features

  • User self-calibration function
  • Power measurements in dBm or mW
  • Auto power off after 10 minutes without operation
  • Standard FC/SC/ST interchangeable port
  • Backlight LCD display for night operation
  • REF setting function
  • Intelligent backlight control
  • Auto wavelength and frequency identification
  • High storage capacity
  • USB communication port for data transfer
  • Description
  • Specifications
  • Ordering Information
  • Applications
  • FAQ

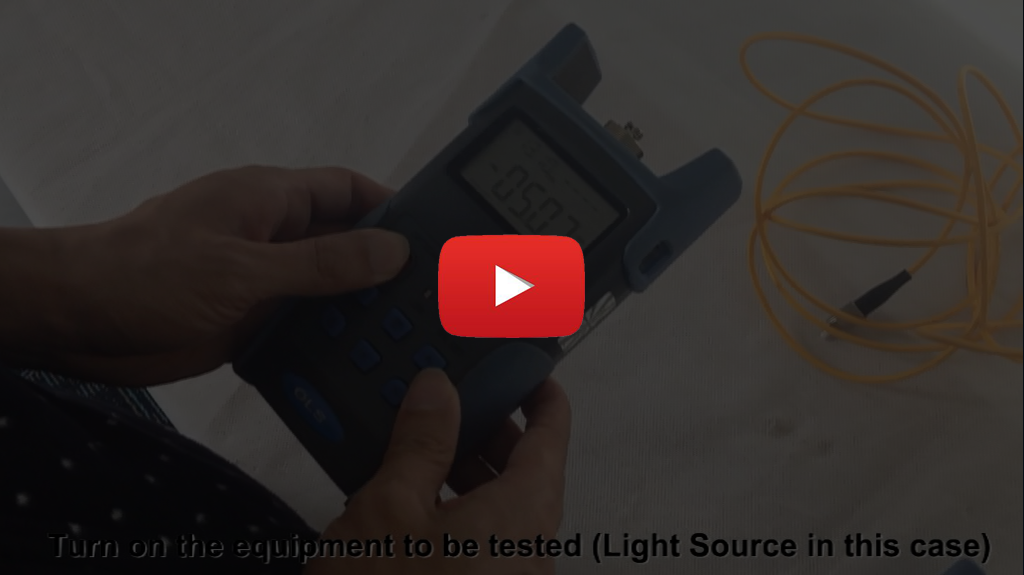

  • Product Video
  • Sun Telecom's SUN-OPM200 series of handheld optical power meter provides testing for 6 output wavelengths with REF setting function (Reference power level storage). This series has intelligent backlight control (light intensity can be adjusted properly according to ambient light, which greatly reduces power consumption) function and USB storage transfer. It can identify the wavelengths and frequencies automatically (used with SUN-LS200 series of light source) and is a good testing solution for the fiber optic network together with a light source.
  • Specifications
    Parameters Specification
    Model SUN-OPM200-TC SUN-OPM200-BC
    Wavelength Range (nm) 800 ~ 1700
    Calibrated Wavelengths (nm) 850/1300/1310/1490/1550/1625
    Detector Type InGaAs
    Optical Interface FC/SC/ST interchangeable port
    Measurement Range (dBm) -70 ~ +6 -50 ~ +26
    Uncertainty (dB) ± 0.15
    Linearity (dB) ± 0.02
    Display Resolution (dB) 0.01
    Frequency ID (Hz) 270/330/1K/2K
    Wavelengths ID (nm) 1310/1490/1550/1625
    Data Storage Capacity 1000
    Communication Interface USB
    Power 3 x AA 1.5V batteries
    Battery Operation Time (h) 200
    Auto Power off Time (min) 10
    Operation Temperature (°C) -10 ~ +60
    Storage Temperature (°C) -25 ~ +70
    Dimensions (mm) 175 (L) x 90 (W) x 44.5 (H)
    Weight (g) 255 (without battery)

    Standard Package
    No. Name Unit Quantity
    1 Optical Power Meter set 1
    2 AA 1.5V Battery pieces 3
    3 Soft Bag piece 1
    4 USB Cable piece 1
    5 USB Disk piece 1
    6 FC Adapter piece 1
    7 SC Adapter piece 1
    8 ST Adapter piece 1

  • Model Name Description
    SUN-OPM200-TC Optical Power Meter Handheld, 850/1300/1310/1490/1550/1625 nm; Measurement range: -70 ~ +6 dBm; FC/SC/ST interchangeable port
    SUN-OPM200-BC Optical Power Meter Handheld, 850/1300/1310/1490/1550/1625 nm; Measurement range: -50 ~ +26 dBm; FC/SC/ST interchangeable port

  • ● Telecommunication networks
    ● CATV networks
    ● Other fiber optic networks
    ● Education and research in optical communication
