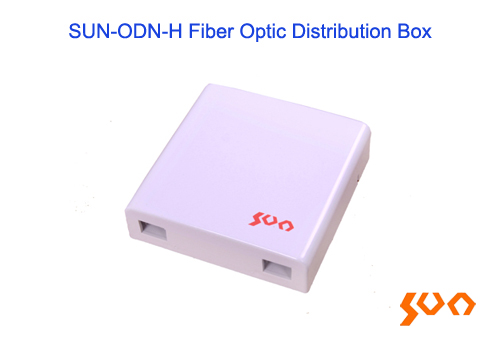

SUN-ODN-H Distribution Box

Position: Home > Products > Cable Management > Fiber Optic Distribution Boxes

Model: SUN-ODN-H

Indoor, Max adaptors: 1 ⁄ 2, SC, DLC adaptors

Key Features

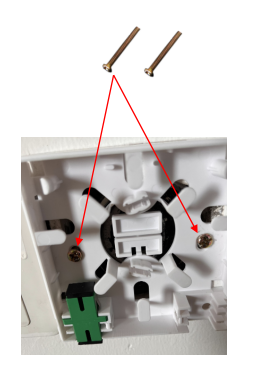

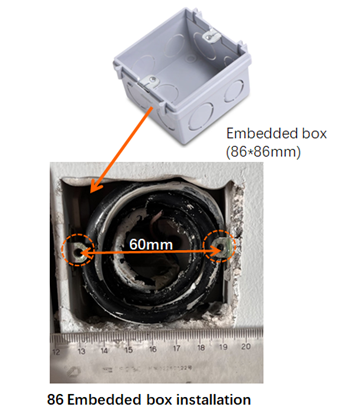

Indoor flush mount
SC adapter panel
Fast connector applicable

Description
Specifications
Ordering Information
Applications
FAQ
Product Video

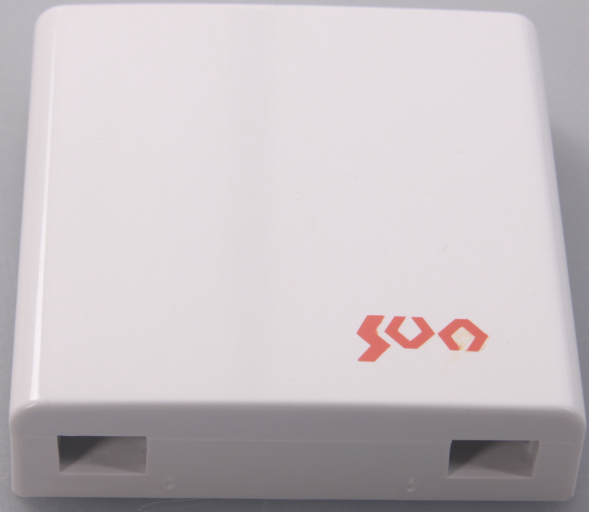

　Sun Telecom’s SUN-ODN-H fiber optic distribution box is light and compact, especially suitable for protective connection of fiber cables and pigtails in FTTH.

Specifications

Parameters	Specification
Model	SUN-ODN-H-O
Max. No. of Adapters	2
Adaptor Type	SC, DLC (SC type)
Cable Clamper	Not included
Box Material	ABS
Max. Cable Diameter (mm)	3
Environmental Temperature (°C)	-25 ~ +55
Weight (kg)	0.06
Dimensions (mm)	86(L) x 86(W) × 25(H)

Standard Package

No.	Product	Unit	Quantity
1	Box	set	1

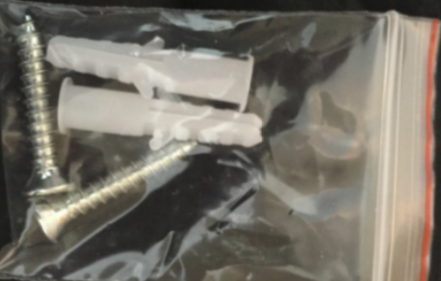

2	Fixing Screw	set	1

Model Name Description

SUN-ODN-H-O Fiber Optic Distribution Box Suitable for 2 pieces of SC or duplex LC (SC type) adapters; Without cable clamper; Adapters NOT included
● FTTH access networks
● Telecommunication networks
● CATV networks
● Local Area Networks
