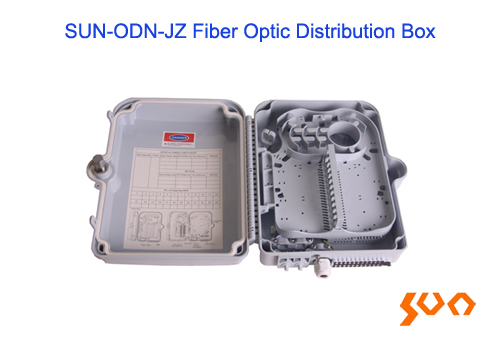

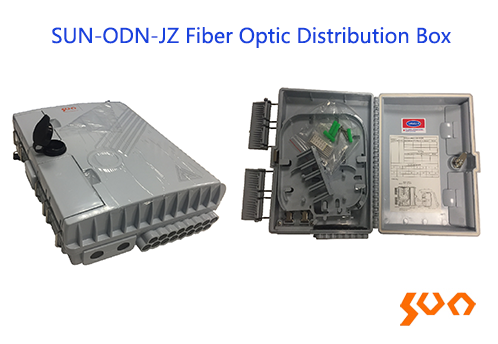

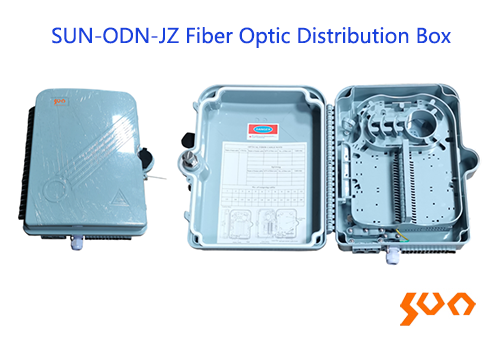

SUN-ODN-JZ Distribution Box

Model: SUN-ODN-JZ

Outdoor, 1 1:16 or 2 1:8 splitters, Max adaptors: 16 ⁄ 24, SC, DLC adaptor

    Key Features

  • Protection rating IP65
  • Moisture-proof, water-proof and anti-aging
  • Wall or pole mount
  • SC adapter panel
  • Fast connector applicable
  • Suitable for one 1x16 PLC splitter or two 1x8 PLC splitters
  • Indoor or outdoor use
  • Description
  • Specifications
  • Ordering Information
  • Applications
  • FAQ
  • Product Video
  • Sun Telecom’s SUN-ODN-JZ series fiber optic distribution boxes are widely used as a termination point for the feeder cable to connect with the drop cable in the FTTx communication network system. The fiber splicing, splitting and distribution can be done in these boxes. These series of boxes provide solid protection and management for the FTTx networks.
  • Specifications
    Parameters Specification
    Model SUN-ODN-JZ16 SUN-ODN-JZ24
    Max. No. of Adapters 16 24
    Adaptor Type SC, DLC (SC type)
    Splitter Type Blockless PLC splitter
    No. of Inlet and Outlet Ports 1 in (mid-span) 16 out  2 in (1*mid-span,1*cable gland) 24 out
    Max. Cable Diameter (mm) 18
    Material PC + ABS
    Color Gray or black
    Operating Temp (°C) -25 ~ +55
    Dimensions (mm) 293 (L) × 219 (W) × 84 (H) 320 (L) × 240 (W) × 100 (H)
    Weight (kg) 1.4 1.8

    Standard Package
    No. Name Unit Quantity
    (SUN-ODN-JZ16)    		 Quantity
    (SUN-ODN-JZ24)
    1 Fiber Optic Distribution Box set 1 1
    2 Protective Tube piece 1 1
    3 Protective Sleeves (SUS304 steel rod) pieces 16 24
    4 Ties pieces 10 10
    5 Screw for Adapter piece \ 48
    6 Key piece 1 1
    7 Wall Mounting Accessories (SUS304) set 1 1

    Optional Accessories
    No. Name Unit Quantity
    (SUN-ODN-JZ16)    		 Quantity
    (SUN-ODN-JZ24)
    1 Pole Mounting Accessories (SUS304) set 1 1

  • Ordering Information
    Model Name Description
    SUN-ODN-JZ16-BW Fiber Optic Distribution Box Black; Suitable for 1 piece of 1 × 16 (or two pieces of 1 × 8) blockless type PLC splitter; With the adaptor panel for max. 16 pieces of SC or duplex LC (SC type); Adaptors and PLC splitter NOT included; Dimensions (mm): 293(L)×219(W)×84(H); Wall mounting accessories included
    SUN-ODN-JZ16-BPW Fiber Optic Distribution Box Black; Suitable for 1 piece of 1 × 16 (or two pieces of 1 × 8) blockless type PLC splitter; With the adaptor panel for max. 16 pieces of SC or duplex LC (SC type); Adaptors and PLC splitter NOT included; Dimensions (mm): 293(L)×219(W)×84(H); Wall and pole mounting (SUS304) accessories included
    SUN-ODN-JZ16-GW Fiber Optic Distribution Box Gray; Suitable for 1 piece of 1 × 16 (or two pieces of 1 × 8) blockless type PLC splitters; With the adaptor panel for max. 16 pieces of SC or duplex LC (SC type); Adaptors and PLC splitter NOT included; Dimensions (mm): 293(L)×219(W)×84(H); Wall mounting accessories included
    SUN-ODN-JZ16-GPW Fiber Optic Distribution Box Gray; Suitable for 1 piece of 1 × 16 (or two pieces of 1 × 8) blockless type PLC splitters; With the adaptor panel for max. 16 pieces of SC or duplex LC (SC type); Adaptors and PLC splitter NOT included; Dimensions (mm): 293(L)×219(W)×84(H); Wall and pole mounting (SUS304) accessories included
    SUN-ODN-JZ24-BW Fiber Optic Distribution Box Black; Suitable for 1 piece of 1 × 16 (or two pieces of 1 × 8) blockless type PLC splitter; With the adaptor panel for max. 24 pieces of SC or duplex LC (SC type); Adaptors and PLC splitter NOT included; Dimensions (mm): 320(L)×240(W)×100(H); Wall mounting accessories included
    SUN-ODN-JZ24-BPW Fiber Optic Distribution Box Black; Suitable for 1 piece of 1 × 16 (or two pieces of 1 × 8) blockless type PLC splitter; With the adaptor panel for max. 24 pieces of SC or duplex LC (SC type); Adaptors and PLC splitter NOT included; Dimensions (mm): 320(L)×240(W)×100(H); Wall and pole mounting (SUS304) accessories included
    SUN-ODN-JZ24-GW Fiber Optic Distribution Box Gray; Suitable for 1 piece of 1 × 16 (or two pieces of 1 × 8) blockless type PLC splitter; With the adaptor panel for max. 24 pieces of SC or duplex LC (SC type); Adaptors and PLC splitter NOT included; Dimensions (mm): 320(L)×240(W)×100(H); Wall mounting accessories included
    SUN-ODN-JZ24-GPW Fiber Optic Distribution Box Gray; Suitable for 1 piece of 1 × 16 (or two pieces of 1 × 8) blockless type PLC splitter; With the adaptor panel for max. 24 pieces of SC or duplex LC (SC type); Adaptors and PLC splitter NOT included; Dimensions (mm): 320(L)×240(W)×100(H); Wall and pole mounting (SUS304) accessories included

  • ● FTTH access networks
    ● Telecommunication networks
    ● CATV networks
    ● Local Area Networks
