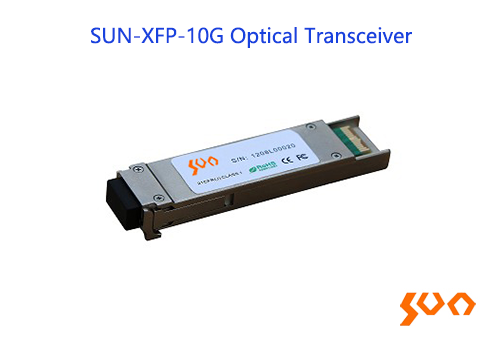

SUN-XFP-10G Optical Transceiver

Model: SUN-XFP-10G

10Gbps, LC or SC interface Dist: MM: 300m~2km, SM: 20~80km

    Key Features

  • XFP package with LC interface
  • Up to 80km transmission on single mode fiber
  • Up to 300m transmission on multimode fiber
  • DDM Function
  • Compatible with ROHS
  • Compatible with SFF-8472
  • Operating temperature: Non-industrial: 0 ~ +70°C, Industrial: -40 ~ +85°C
  • Description
  • Specifications
  • Ordering Information
  • Applications
  • FAQ
  • Product Video
  • Sun Telecom's SUN-XFP-10G series of optical transceivers are XFP optical transceiver modules and support data-rate of 10Gbps. These transceivers consist of three sections: DBF laser transmitter, PIN photodiode integrated with a Trans-Impedance Preamplifier (TIA) and MCU control unit, satisfy class-I laser safety requirements and are compatible with XFP Multi-Source Agreement (MSA).
  • Absolute Maximum Ratings
    Parameters Symbol Min. Max.
    Storage Temperature (°C) Tst -40 85
    Supply Voltage (V) Vcc 0 3.6
    Operating Relative Humidity (%)  RH 0 85

    Operation Environment
    Parameters Symbol Min. Typical Max.
    Supply Voltage (V) Vcc 3.15 - 3.45
    Operating Temperature (°C) Non-industrial Tc 0 - 70
    Industrial Tc -40   85
    Power Dissipation (W) - - - 2
    Data Rate (Gbps) - 9.95   11.3

    Optical Specifications
    (Ambient Operating Temperature 0°C to +70°C, Vcc =3.3 V)
    Parameters Symbol Min. Typical Max.
    Transmitter Section
    Center Wavelength (nm) lo 1290 1310 1330
    Side-Mode Suppression Ratio SMSR 35 - -
    Average Output Power (dBm) Po -8 - 0.5
    Extinction Ratio (dB) Er 5 - -
    Jitter (p-p) (UI)   - 0.1 -
    Relative Intensity Noise (dB/Hz) RIN12OMA - - -130
    Receiver Section
    Center Wavelength (nm) lo - 1310 -
    Receiver Sensitivity (dBm) Rsen - - -14.5
    Stressed Sensitivity (dBm) Rsen -   -13.5
    Receiver Overload (dBm) Rov 0 - -
    Return Loss (dB) - 12 - -
    LOS Assert (dBm) LOSA -25 - -
    LOS De-Assert (dBm) LOSD - - -16
    LOS Hysteresis (dBm) - 0.5 - 4

    Electrical Specifications
    (Ambient Operating Temperature 0°C to +70°C, Vcc =3.3 V)
    Parameters Symbol Min. Typical Max.
    Transmitter Section
    Input Differential Impendence (Ohm) Zin 90 100 110
    Data Input Swing Differential (mV) Vin 120 - 850
    TX Disable (V) Disable - 2.0 - Vcc
    Enable - 0 - 0.8
    TX Fault (V) Assert - 2.0 - Vcc
    De-Assert - 0 - 0.8
    Receiver Section
    Output Differential Impendence (Ohm) Zout   100 -
    Data Input Swing Differential (mV) Vout 340 650 850
    Rx LOS (V) Assert - 2.0 - Vcc
    De-Assert - 0 - 0.8

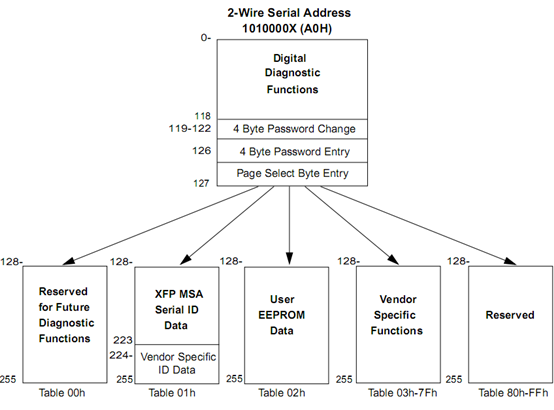

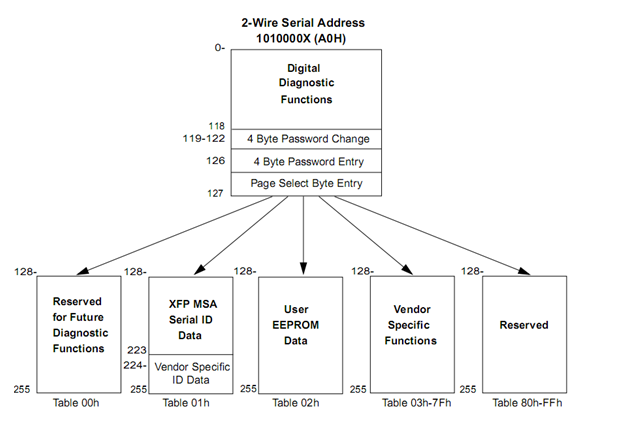

    EEPROM Information（A0）

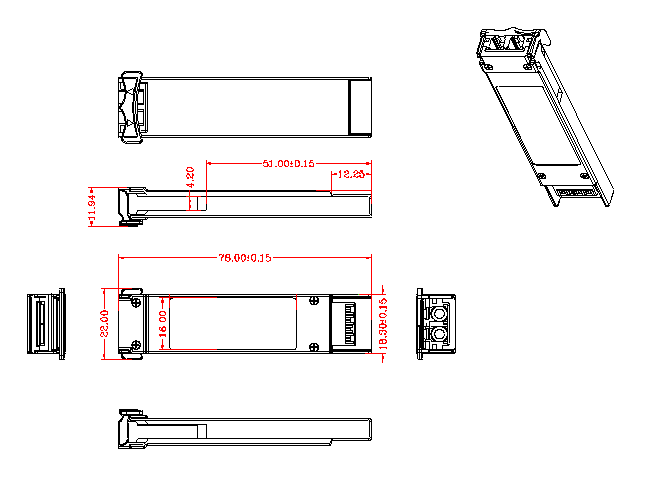

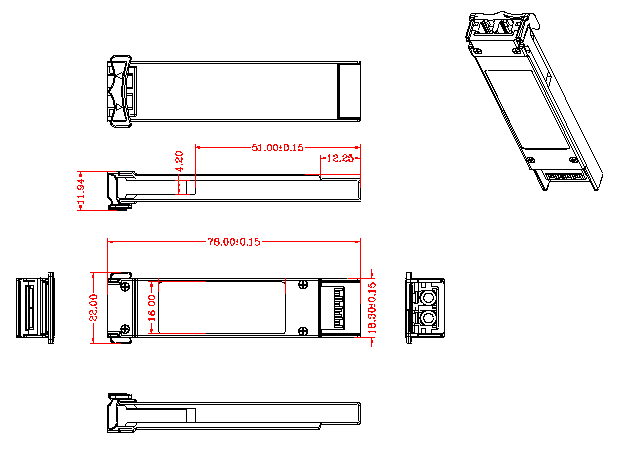

    Outline Drawing (mm)

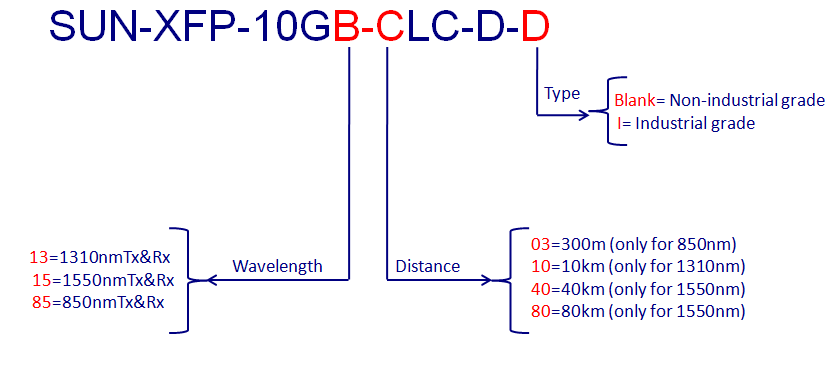

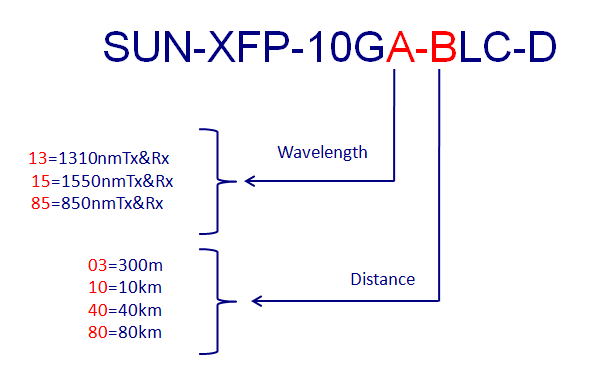

  • Example: SUN-XFP-10G15-80LC-D
    XFP, 10Gbps, 1550nm; SM, dual fiber, max transmission distance: 80km; LC interface, with DDM; Non-industrial grade
  • ● Switch to Switch interface
    ● Router/Server interface
    ● Other optical transmission systems
