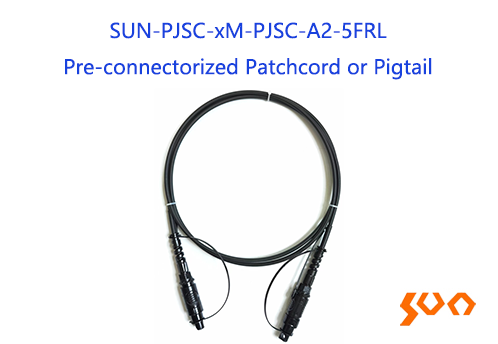

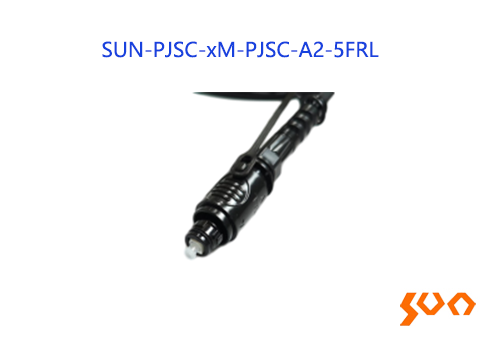

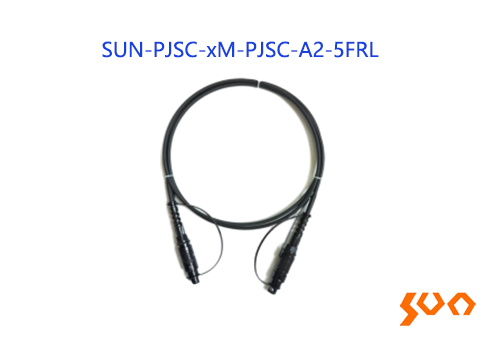

SUN-PJSC-xM-PJSC-A2-5FRL Pre-connectorized Patchcord or Pigtail

Model: SUN-PJSC-xM-PJSC-A2-5FRL

Fiber Optic Pigtail Pre-connectorized pigtail, Type J (SC/APC); Length: 50m (tolerance: 0~0.5m); 5.0mm round cable (1core, G657A2, black flame retardant LSZH jacket)

    Key Features

  • Flame retardant low smoke, zero halogen (LSZH) sheath
  • Simple structure, light weight and flexible
  • Description
  • Specifications
  • Ordering Information
  • Applications
  • FAQ
  • Product Video

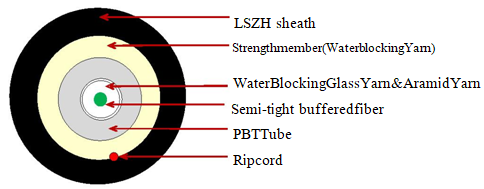

  • 　Cable Construction

    \

  • 1. Optical Fiber Characteristics(ITU-T G657A2)
    Parameters
    Specification
    Before Cable
    After Cable
    Fiber Type
    SM G657A2
    Mode Field Diameter (um)
    8.6~9.2±0.4 (@1310nm)
    Cladding Diameter (um)
    125±0.7
    Coating Diameter (um)
    245±10
    Core Concentricity Error (um)
    ≤0.5
    Cladding Non-circularity (%)
    ≤1.0
    Zero Dispersion Wavelength (nm)
    1300~1324
    Cable Cut-off Wavelength (nm)
    ≤1260
    Fiber Attenuation (dB/km)
    @ 1310nm
    ≤0.35
    ≤0.4
    @ 1550nm
    ≤0.21
    ≤0.3
    Macro bending Loss (dB)
    7.5mm radius, 1 turn
    ≤0.5 @1550nm
    7.5mm radius, 1 turn
    ≤1.0 @1625nm
    10mm radius, 1 turn
    ≤0.1 @1550nm
    10mm radius, 1 turn
    ≤0.2 @1625nm
    15mm radius, 10 turns
    ≤0.03 @1550nm
    15mm radius, 10 turns
    ≤0.1 @1625nm

    2. Cable Specifications
    Parameters
    Specifications
    Fiber Count
    1
    Semi-tight Buffered Fiber
    Buffer Material
    LSZH
    Color
    Natural or White
    Diameter (mm)
    0.9±0.05
    Loose Tube
    Material
    PBT
    Outer Diameter (mm)
    2.1±0.1
    Tube Filling Material
    Water blocking glass yarn and Aramid yarn
    Strength Member (outside PBT Tube)
    Water blocking yarn
    Outer Jacket
    Material
    Flame retardant LSZH
    Thickness (mm)
    0.8±0.2
    Color
    Black
    Nominal Cable Diameter (mm)
    5.0±0.2
    Cable Flame Retardant Characteristic
    IEC 60332-1-2 (single cable vertical flame test)
    Tensile Strength (N)Short Term
    1200
    Crush Resistance (N/100mm)Short Term
    800
    Min. Bending Radius(mm)
    Dynamic
    20D
    Static
    10D
    Cable Attenuation (dB/KM)
    At 1310nm
    ≤0.4
    At 1550nm
    ≤0.3
    Operating Temperature (°C)
    -25~ +70
    Storage Temperature (°C)
    -25 ~ +70

    3. Patch cord Specification
    Parameters
    Specifications
    Connector Type
    Side A
    Type J pre-connectorized connector (SC/UPC or SC/APC)
    Side B
    Type J pre-connectorized connector (SC/UPC or SC/APC) or open end
    Insertion Loss (dB)
    ≤0.3
    Return Loss (dB)
    ≥50 (UPC); ≥60 (APC)
    Length (m)
    As request
    Tolerance (m)
    0~+0.1, L≤10,
    0~+0.2, 10~20,
    1%×L, L≥20, L=patchcord length
    Temperature Range (°C)
    -20~+60

  • Ordering Information (for example)
    SUN-PJASC-50M-PJASC-A2-5FRL
    Fiber Optic Patchcord
    Pre-connectorized patchcord, Type J (SC/APC); Length: 50m (tolerance: 0~0.5m); 5.0mm round cable (1core, G657A2, black flame retardant LSZH jacket)
  • ●FTTH access networks
    ●Telecommunication networks
    ●CATV networks
    ●Local area networks
