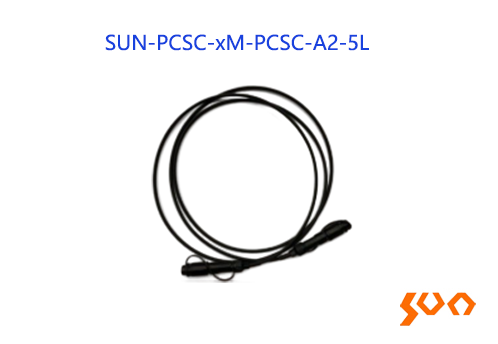

SUN-PCSC-xM-PCSC-A2-5FRL Pre-connectorized Patchcord

Model: SUN-PCSC-xM-PCSC-A2-5FRL

Pre-connectorized patchcord, Type C (SC/APC)

    Key Features

  • Flame retardant low smoke, zero halogen (LSZH) sheath
  • Simple structure, light weight and flexible
  • Description
  • Specifications
  • Ordering Information
  • Applications
  • FAQ
  • Product Video

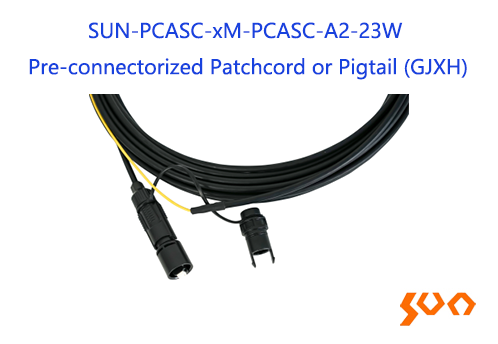

  • Sun Telecom's Type C pre-connectorized patchcords and pigtails are made by adding Type C pre-connectorized connectors to one or both ends of a traditional fiber optic cable. They are terminated and rigorously tested at the factory, ensuring a guaranteed level of quality.
    The fiber connection is a simple plug-and-play mechanism, eliminating the need for splicing throughout the process.
    Type C pre-connectorized connector has IP65-rated water and dust resistance to ensure the reliability of fiber connections in severe weather conditions.
  • Cable Construction



    1. Optical Fiber Characteristics(ITU-T G657A2)
    Parameters Specification
    Before Cable After Cable
    Fiber Type SM G657A2
    Mode Field Diameter (um) 8.6~9.2±0.4 (@1310nm)
    Cladding Diameter (um) 125±0.7
    Coating Diameter (um) 245±10
    Core Concentricity Error (um) ≤0.5
    Cladding Non-circularity (%) ≤1.0
    Zero Dispersion Wavelength (nm) 1300~1324
    Cable Cut-off Wavelength (nm) ≤1260
    Fiber Attenuation (dB/km) @ 1310nm ≤0.35 ≤0.4
    @ 1550nm ≤0.21 ≤0.3
    Macro bending Loss (dB) 7.5mm radius, 1 turn ≤0.5 @1550nm
    7.5mm radius, 1 turn ≤1.0 @1625nm
    10mm radius, 1 turn ≤0.1 @1550nm
    10mm radius, 1 turn ≤0.2 @1625nm
    15mm radius, 10 turns ≤0.03 @1550nm
    15mm radius, 10 turns ≤0.1 @1625nm

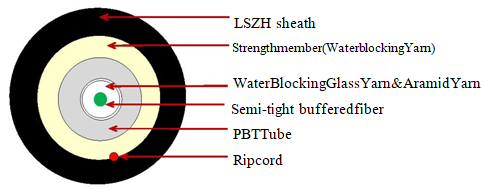

    2. Cable Specifications
    Parameters Specifications
    Fiber Count 1
    Semi-tight Buffered Fiber Buffer Material LSZH
    Color Natural or White
    Diameter (mm) 0.9±0.05
    Loose Tube Material PBT
    Outer Diameter (mm) 2.1±0.1
    Tube Filling Material Water blocking glass yarn and Aramid yarn
    Strength Member (outside PBT Tube) Water blocking yarn
    Outer Jacket Material Flame retardant LSZH
    Thickness (mm) 0.8±0.2
    Color Black
    Nominal Cable Diameter (mm) 5.0±0.2
    Cable Flame Retardant Characteristic IEC 60332-1-2 (single cable vertical flame test)
    Tensile Strength (N)Short Term 1200
    Crush Resistance (N/100mm)Short Term 800
    Min. Bending Radius(mm) Dynamic 20D
    Static 10D
    Cable Attenuation (dB/KM) At 1310nm ≤0.4
    At 1550nm ≤0.3
    Operating Temperature (°C) -25~ +70
    Storage Temperature (°C) -25 ~ +70

    3. Patch cord/ pigtail Specification
    Parameters Specifications
    Connector Type Side A Type C pre-connectorized connector (SC/UPC or SC/APC)
    Side B Type C pre-connectorized connector (SC/UPC or SC/APC) or open end
    Insertion Loss (dB) ≤0.3
    Return Loss (dB) ≥50 (UPC); ≥60 (APC)
    Length (m) As request
    Tolerance (m) 0~+0.1, L≤10,
    0~+0.2, 10~20,
    1%×L, L≥20, L=patchcord length
    Temperature Range (°C) -20~+60

  • Ordering Information (for example)
    SUN-PCASC-50M-PCASC-A2-5FRL
    Fiber Optic Patchcord
    Pre-connectorized patchcord, Type C (SC/APC); Length: 50m (tolerance: 0~0.5m); 5.0mm round cable (1core, G657A2, black flame retardant LSZH jacket)

    SUN-PCASC-50M-PCASC-A2-5FRL
    Fiber Optic Pigtail
    Pre-connectorized pigtail, Type C (SC/APC); Length: 50m (tolerance: 0~0.5m); 5.0mm round cable (1core, G657A2, black flame retardant LSZH jacket)
  • Applications
    ● FTTH access networks
    ● Telecommunication networks
    ● CATV networks
    ● Local area networks
