SUN-PCASC-xM-PCASC-A2-23W Pre-connectorized Patchcord or Pigtail (GJXH)

Model: SUN-PCASC-xM-PCASC-A2-23W

Pre-connectorized patchcord, Type C (SC/APC)

    Key Features

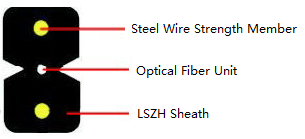

  • Good crush resistance ensured by parallel strength member
  • Good tensile strength ensured by steel wire
  • Low smoke, zero halogen (LSZH) sheath
  • Simple structure, lightweight, and flexible
  • Description
  • Specifications
  • Ordering Information
  • Applications
  • FAQ
  • Product Video
  • Sun Telecom's Type C pre-connectorized patchcords and pigtails are made by adding Type C pre-connectorized connectors to one or both ends of a traditional fiber optic cable. They are terminated and rigorously tested at the factory, ensuring a guaranteed level of quality.
    The fiber connection is a simple plug-and-play mechanism, eliminating the need for splicing throughout the process.
    Type C pre-connectorized connector has IP65-rated water and dust resistance to ensure the reliability of fiber connections in severe weather conditions.
  • Cable Construction



    1. Optical Fiber Characteristics(ITU-T G657A2)
    Parameters Specification
    Before Cable After Cable
    Fiber Type SM G657A2
    Mode Field Diameter (um) 8.6~9.2±0.4 (@1310nm)
    Cladding Diameter (um) 125±0.7
    Coating Diameter (um) 245±10
    Core Concentricity Error (um) ≤0.5
    Cladding Non-circularity (%) ≤1.0
    Zero Dispersion Wavelength (nm) 1300~1324
    Cable Cut-off Wavelength (nm) ≤1260
    Fiber Attenuation (dB/km) @ 1310nm ≤0.35 ≤0.4
    @ 1550nm ≤0.21 ≤0.3
    Macro bending Loss (dB) 7.5mm radius, 1 turn ≤0.5 @1550nm
    7.5mm radius, 1 turn ≤1.0 @1625nm
    10mm radius, 1 turn ≤0.1 @1550nm
    10mm radius, 1 turn ≤0.2 @1625nm
    15mm radius, 10 turns ≤0.03 @1550nm
    15mm radius, 10 turns ≤0.1 @1625nm

    2. Cable Specifications
    Parameters Specifications
    Fiber Count 1
    Strength Member Material Steel Wire
    Number 2
    Diameter (mm) 0.4
    Outer Jacket Material LSZH
    Color Black
    Nominal Cable Dimension (mm) (W×H) (2.0±0.1) x (3.0±0.1)
    Tensile Strength (N) Short Term 200
    Long Term 100
    Crush Resistance (N/100mm) Short Term 1000
    Long Term 300
    Min. Bending Radius(mm) Dynamic 60
    Static 30
    Cable Attenuation (dB/KM) At 1310nm ≤0.4
    At 1550nm ≤0.3
    Operating Temperature (°C) -20 ~ +60
    Storage Temperature (°C) -20 ~ +60

    3. Patchcord/ pigtail Specification
    Parameters Specifications
    Connector Type Side A Type K pre-connectorized connector (SC/UPC or SC/APC)
    Side B Type K pre-connectorized connector (SC/UPC or SC/APC) or open end
    Insertion Loss (dB) ≤0.3
    Return Loss (dB) ≥50 (UPC); ≥60 (APC)
    Length (m) As request
    Tolerance (m) 0~+0.1, L≤10,
    0~+0.2, 10~20,
    1%×L, L≥20, L=patchcord length
    Temperature Range (°C) -20~+60

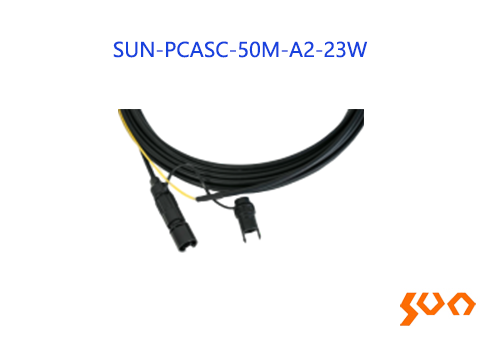

  • SUN-PCASC-50M-PCASC-A2-23W
    Fiber Optic Patchcord
    Pre-connectorized patchcord, Type C (SC/APC); Length: 50m (tolerance: 0~0.5m); GJXH (1core,G657A2 fiber, steel wire strength member, black LSZH jacket, 2×3mm)

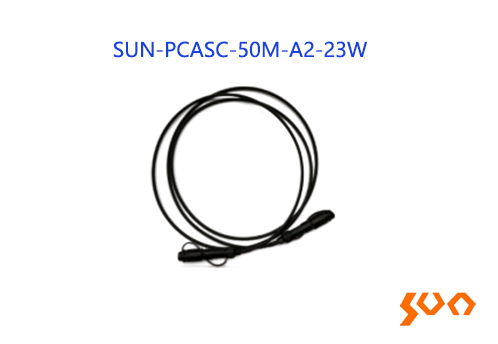

    SUN-PCASC-50M-A2-23W
    Fiber Optic Pigtail
    Pre-connectorized patchcord, Type C (SC/APC); Length: 50m (tolerance: 0~0.5m); GJXH (1core,G657A2 fiber, steel wire strength member, black LSZH jacket, 2×3mm)
  • Applications
    ● FTTH access networks
    ● Telecommunication networks
    ● CATV networks
    ● Local area networks
