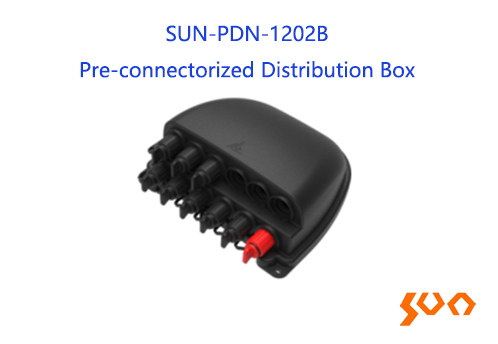

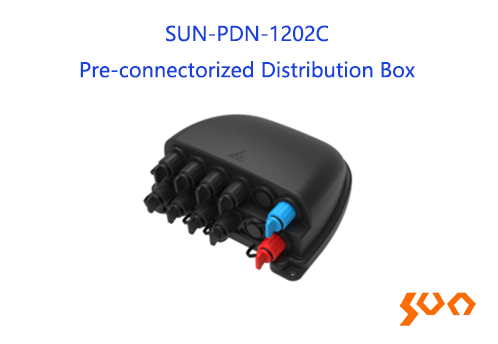

SUN-PDN-1202 Series Pre-connectorized Distribution Box

Model: SUN-PDN-1202

IP68; Max. 12 pre-connectorized adapters

    Key Features

  • Advanced structure design, easy operation and reasonable routing
  • Material PP
  • Moisture-proof, waterproof, dust-proof, anti-aging
  • IP68
  • Max. 12 pre-connectorized adapters
  • Wall/ Pole/ Aerial mounted
  • Description
  • Specifications
  • Ordering Information
  • Applications
  • FAQ
  • Product Video
  • Sun Telecom’s SUN-PDN-1202 series fiber optic pre-connectorized distribution box is used as a distribution point for the feeder cable to connect with the drop cable in the FTTx communication network system. The fiber splicing, splitting, and distribution can be done in this box, and it provides solid protection and management for the FTTx network building.
    　
  • Parameters
    Specification
    Model
    SUN-PDN-1202A
    SUN-PDN-1202B
    SUN-PDN-1202C
    Material
    Box
    PP
    Pre-connectorized Adapter3
    Number
    12
    9
    10

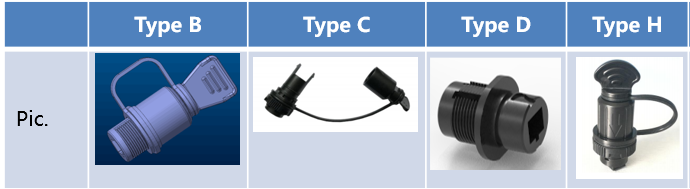

    Adapter Type
    B/C/D/E/H
    Suitable Splitter Type
    1x4+1x8 blockless type PLC splitter
    1x8 blockless type PLC splitter
    1x2 FBT (70/301) + 1x8 blockless type PLC splitter
    IP
    IP68
    Color
    Black
    Temperature Range (°C)
    -40 ~ +85
    Relative Humidity (%) (+30°C)
    ≤85
    Atmospheric Pressure (Kpa)
    70~106
    Dimensions (mm)
    199(L) x 193(W) x 78.5(H)
    Installation Method
    Wall/ pole/ aerial
    Note: 1. 1x2 FBT (70/30), other splitting rations are optional, for example: 90/10, 80/20, 70/30, 60/40, 50/50
    2. Pre-connectorized adapters


    Structure Drawing
    (A*B*C:199*193*78.5mm; D*E: 180*180mm)
    IMG_256
    Installation
    IMG_256  IMG_256  IMG_256

  • SUN-PDN-1202A-CSC-BPW
    Fiber Optic Distribution Box
    Pre-connectorized multiport distribution box; Loaded with 1pc 1×4+1×8 PLC splitter and 12pcs type C adapters (SC); Black color, dimensions (mm): 198 (L) x 193 (W) x 78.5 (H); Including wall and pole mounting accessories

    SUN-PDN-1202B-CSC-BPW
    Fiber Optic Distribution Box
    Pre-connectorized multiport distribution box; Loaded with 1pc 1×8 PLC splitter and 9pcs type C adapters (SC); Black color, dimensions (mm): 198 (L) x 193 (W) x 78.5 (H); Including wall and pole mounting accessories


  • ● FTTH access networks
    ● Telecommunication networks
    ● CATV networks
    ● Local area networks
