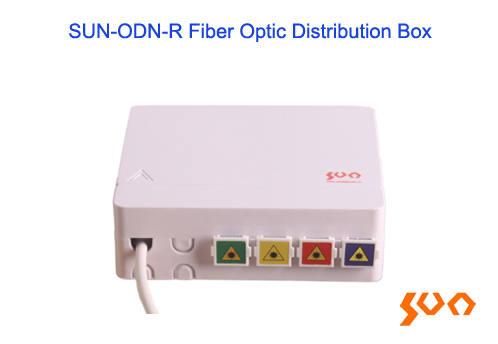

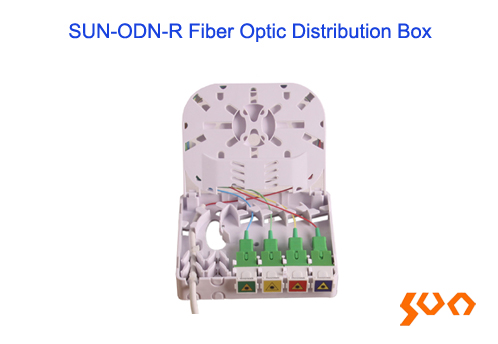

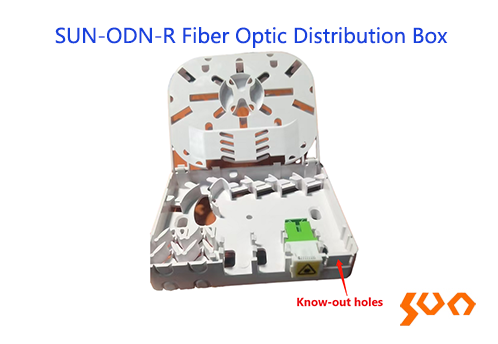

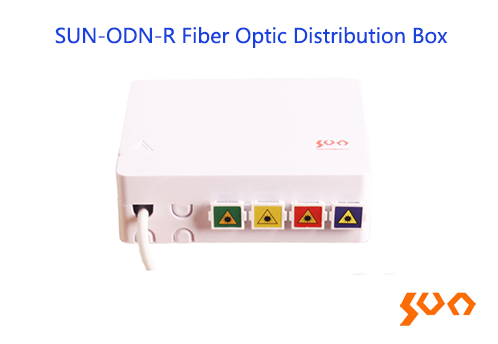

SUN-ODN-R Fiber Optic Distribution Box

Model: SUN-ODN-R

Indoor, Max adaptors: 4, SC, DLC adaptors

    Key Features

  • Indoor wall mount
  • SC adapter panel
  • Fast connector applicable
  • Description
  • Specifications
  • Ordering Information
  • Applications
  • FAQ
  • Product Video
  • Sun Telecom's SUN-ODN-R fiber optic distribution box is light and compact, especially suitable for protective connection of fiber cables and pigtails in FTTH.
  • Specifications
    Parameters Specification
    Max. No. of Adapters 4
    Adaptor Type SC, DLC (SC type)
    No. of Inlet and Outlet Ports 4 in 4 out
    Max. Cable Diameter (mm) 3
    Material ABS
    Operating Temp (°C) -25 ~ +55
    Dimensions (mm) 100 (L) × 80 (W) × 32 (H)
    Weight (kg) 0.15

    Standard Package

    No. Name Unit Quantity
    1 Fiber Optic Distribution Box set 1
    2 Protective Sleeves pieces 4
    3 Ties pieces 4
    4 Fixing Screw pieces 2

  • Model Name Description
    SUN-ODN-R Fiber Optic Distribution Box Suitable for 4 pieces of SC or duplex LC (SC type) adapters; Adapters NOT included

  • ● FTTH access networks
    ● Telecommunication networks
    ● CATV networks
    ● Local Area Networks
