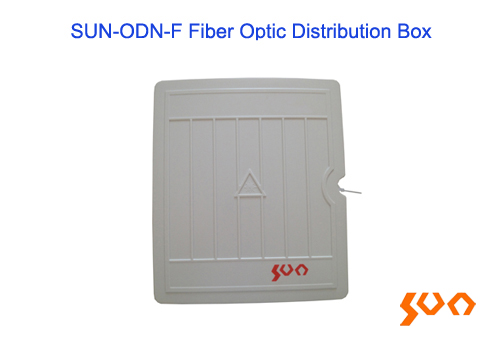

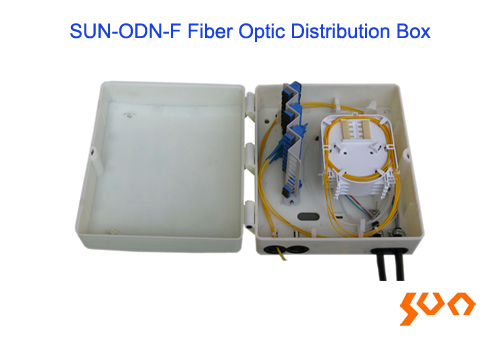

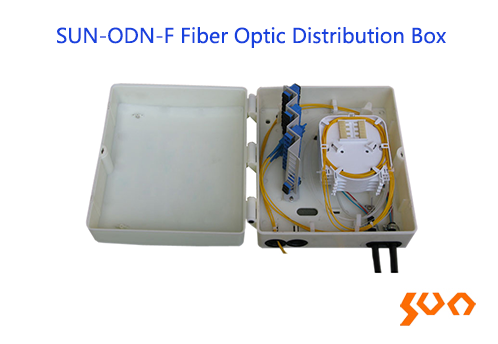

Outdoor, 1 2:32,2 1:16, 4 1:8 splitters, 5 splicing trays, Max Adaptors: 36
| Parameters | Specification |
| Max. No. of Adapters | 36 |
| Adaptor Type | SC, DLC (SC type) |
| Box Material | ABS |
| Splitter Type | Blockless PLC splitter |
| No. of Inlet and Outlet Ports | 2 in 2 out |
| Max. Cable Diameter (mm) | 24 |
| Environmental Temperature (°C) | -25 ~ +55 |
| Weight (kg) | 1.6 |
| Dimensions (mm) | 280(L) x 250(W) ×125(H) |
| No. | Product | Unit | Quantity |
| 1 | Box | set | 1 |
| 2 | Splice Trays | pieces | 5 |
| 3 | Protective Sleeves | pieces | 60 |
| 4 | Ties | pieces | 16 |
| 5 | Protective Tube | piece | 1 |
| 6 | Insulation Tape | piece | 1 |
| 7 | Screw Set | set | 1 |
| Model | Name | Description |
| SUN-ODN-F | Fiber Optic Distribution Box | Suitable for 1 piece of 2x32 (or 2 pieces of 1x16 or 4 pieces of 1x8) PLC splitter; With the adapter panel for max. 36 pieces of SC or duplex LC (SC type); Adapters and PLC splitter NOT included |
