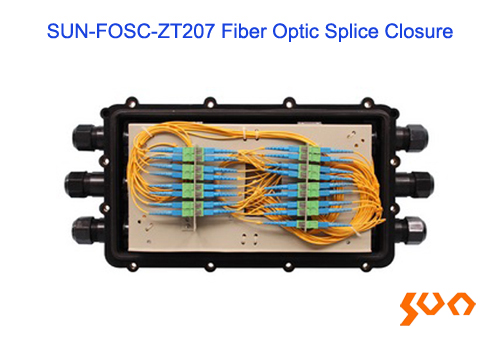

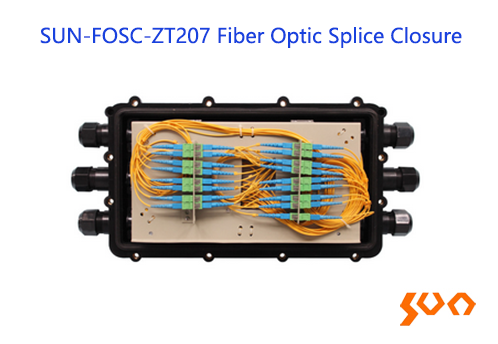

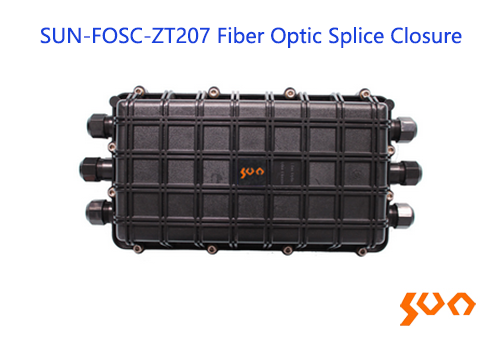

SUN-FOSC-ZT207 Fiber Optic Splice Closure

Model: SUN-FOSC-ZT207

Max 72 fibers, 24 fibers tray, 8~20mm cables, 6 ports, screw fastening

    Key Features

  • Advanced internal design with enough space for fiber splicing and storage
  • Long lasting body with high-strength PC plastic material
  • Suitable for 2 pieces of 1*8 Blockless or 1 piece of 1*32 module PLC splitter (2.0mm jacket)
  • Protection rating IP68
  • Usable for multiple number of times
  • Lower and upper cases with screw fastening locking
  • Description
  • Specifications
  • Ordering Information
  • Applications
  • FAQ
  • Product Video
  • Sun Telecom's SUN-FOSC-ZT207 fiber optic splice closure is used for not only splicing and branching but also splitting and distribution. This type of closure is suitable for the installation of backbone cables and drop cables with different diameters.
  • Specifications
    Parameters Specification
    Max. Capacity of Fibers 72
    No. of Fibers/Tray 24
    No. of In-out Ports 6
    Adapter Type SC
    Max. No. of Adapters 32
    Splitter Type 1×8 or 1×32  Blockless or 1×32 module PLC splitter (2.0mm jacket)
    Cable Diameter 8~20 mm cables or 3/5 mm drop cables
    Protection Rating IP68
    Material PC
    Dimensions (mm) 504 (L) × 242 (W) × 195 (H)

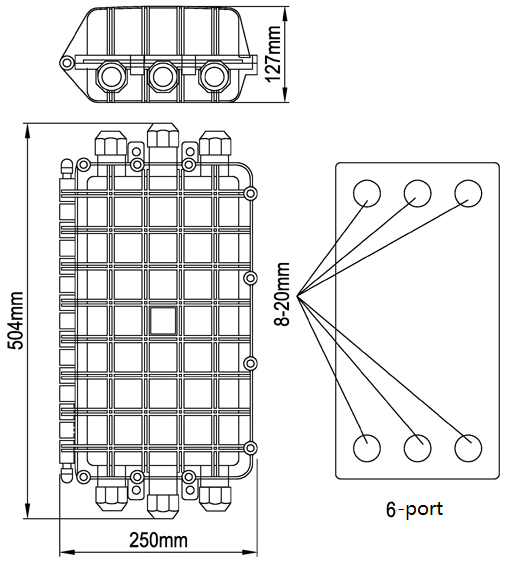

    Structural Drawing


    Standard Package
    No. Name Unit Quantity
    1 Fiber Optic Splice Closure set 1
    2 Protective Sleeves pieces According to no. of fibers
    3 Ties pieces According to no. of trays
    4 Insulation Tape piece 1
    5 Drying Agent piece 1
    6 Ground Wire piece 1
    7 Emery Cloth piece 1
    8 Numbering Paper piece According to no. of fibers
    9 Special Wrenches pieces 3 (butterfly style wrench, small plastic wrench for cable in/out ports, and Allen wrench)

    Optional Accessories
    No. Name Unit Quantity
    1 Earthing Deriving Device set 1
    2 Valve piece 1
    3 Protection Tube piece 1
    4 Port Plug (For Drop Cables) piece 1
    5 Aerial Mounting set 1
    6 Wall Mounting set 1

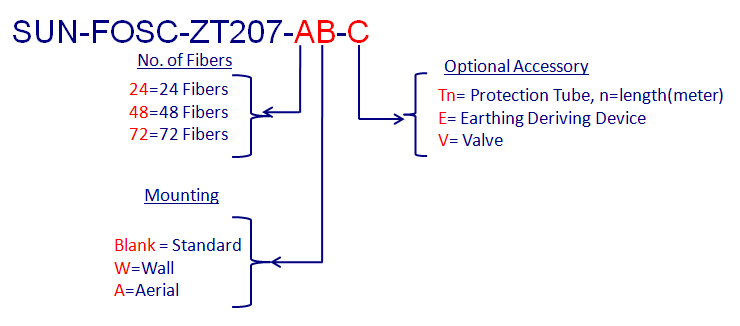

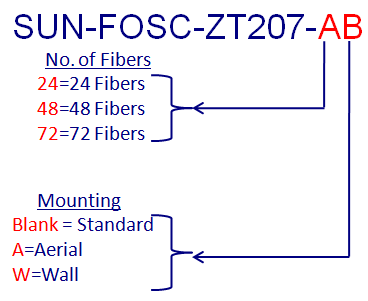

  • Example 1: SUN-FOSC-ZT207-24A
    In-line type, screw fastening, mechanical sealing; 24 fibers, 2 trays of 24 fibers/tray (12 slots/tray) included: 1 tray for splicing and 1 tray for PLC splitter; 6 cable ports, max capacity: 72 fibers, max adapters: 32pcs of SC, max 2 pieces of 1×8 Blockless or 1 piece of 1:32 blockless or 1 piece of 1×32 module PLC splitter (2.0mm jacket); IP68, material: PC, dimensions (mm): 504 (L) × 242 (W) × 195 (H); With accessories for aerial application; Adapters, pigtails and PLC splitters NOT included

    Example 2: SUN-FOSC-ZT207-48W
    In-line type, screw fastening, mechanical sealing; 48 fibers, 3 trays of 24 fibers/tray (12 slots/tray) included: 2 trays for splicing and 1 tray for PLC splitter; 6 cable ports, max capacity: 72  fibers, max adapters: 32pcs of SC, max 2 pieces of 1×8 Blockless or 1 piece of 1:32 blockless or 1 piece of 1×32 module PLC splitter (2.0mm jacket); IP68, material: PC, dimensions (mm): 504 (L) × 242 (W) × 195 (H); With accessories for wall mounting; Adapters, pigtails and PLC splitters NOT included
  • ● FTTH access networks
    ● Telecommunication networks
    ● CATV networks
    ● Local Area Networks
