SUN-FOSC-DH-CL5 Fiber Optic Splice Closure

Model: SUN-FOSC-DH-CL5

Dome type, heat shrink sealing, max capacity: 144 fibers

    Key Features

  • Advanced internal design with enough space for fiber splicing and storage
  • Protection rating IP68
  • Cable ports with heat shrink sealing
  • One oval-shaped port for straight-through cabling
  • Description
  • Specifications
  • Ordering Information
  • Applications
  • FAQ
  • Product Video
  • Sun Telecom's SUN-FOSC-DH-CL5 fiber optic splice closure is used for outdoor cable distribution, splicing, storage and splicing point protection. This type of closure can be used in aerial mounting, wall mounting, pole mounting and pipeline laying installations.

  • Specifications
    Parameters Specification
    Material PP+GF
    Sealing Method Heat shrink sealing
    Protection Rating IP68
    No. of Cable Ports 5
    Cable Diameter (mm) 1 big port: φ 8~18
    4 small ports: φ 8~18
    Tray Capacity (cores) 24
    Max. no of Splice Tray (pcs) 6
    Max. Capacity of Fibers 144
    Installation Method Pole/ wall/ Aerial mounting or others
    Dimensions (mm) 460 (H) × φ225 (D)

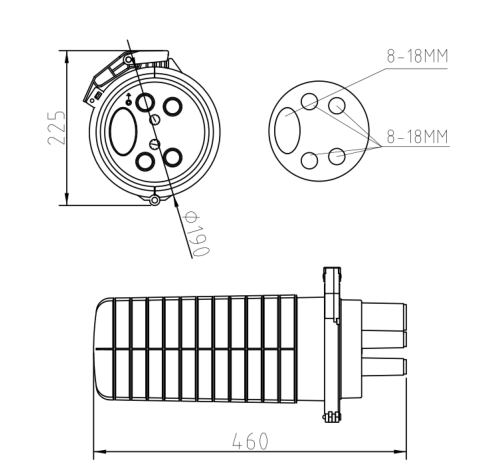

    Dimensions (mm)


    Standard Package
    No. Name Unit Quantity
    1 Fiber Optic Splice Closure set 1
    2 Protective Sleeves pieces According to no. of fibers
    3 Cable Ties pieces According to no. of trays
    4 Insulation Tape piece 1
    5 Eva Tube Piece 1
    6 Aluminum Foil pc 1
    7 Numbering Paper piece According to no. of fibers
    8 Emery Cloth pc 1
    9 Heat Shrinkable Fixing Sleeves pcs 5
    10 Cable Branch Clip pc 1

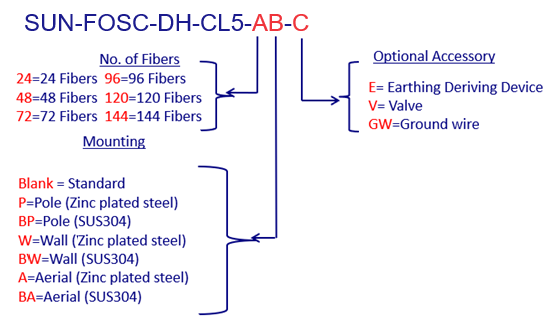

  • Ordering Information


    For example
    SUN-FOSC-DH-CL5-96BPBW
    Dome type, heat shrink sealing; 96 fibers, 4 trays of 24 fibers/tray (12 slots/tray) included; 5 cable ports, max capacity: 144 fibers; IP68, material: PP+GF, dimensions (mm): 255 (D) x 460 (H); Pole mounting (SUS304) and wall mounting accessories (SUS304) included.

  • ●FTTH access networks
    ●Telecommunication networks
    ●CATV networks
    ●Local Area Networks
