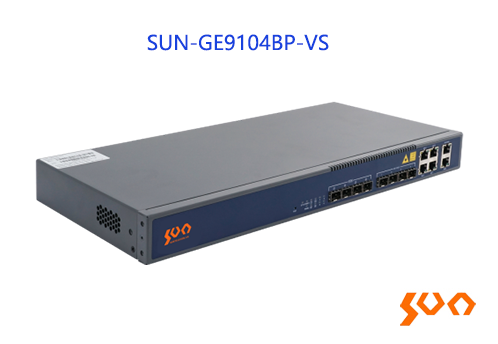

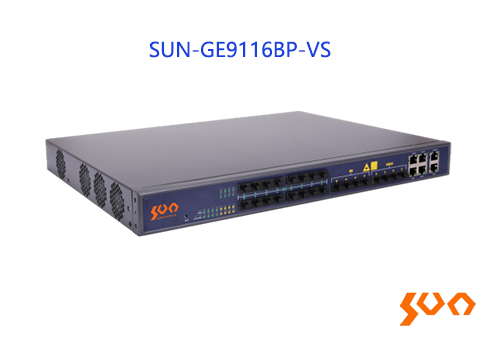

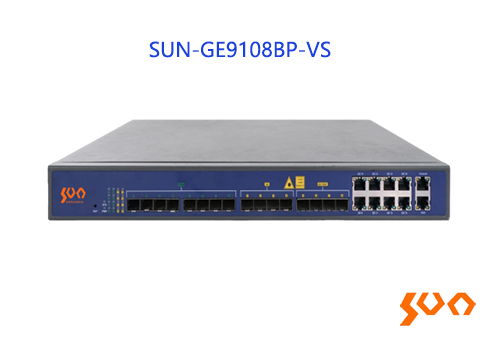

1U rack mount, 2/4/8/16 PON ports, up to 1024 users (under 1:64 split ratio) for ONU access
| Parameters | Specification | ||
| Model | SUN-GE9104BP-VS | SUN-GE9108BP-VS | SUN-GE9116BP-VS |
| Package | 1U rack mount | ||
| Hot-swappbale | Support | ||
| Power Supply (V) | AC: 100~240 (single or dual power optional) DC: -36 ~ -75 (single or dual power optional) |
||
| Power Consumption (W) | 30 | 55 | 95 |
| Working Temperature (°C) | -20~+60 | ||
| Storage Temperature (°C) | -40~+70 | ||
| Humidity (%) | 5~95, no condensing | ||
| Backplane Bandwidth (Gbps) | 128 | ||
| Dimensions (mm) | 442 (L) × 200 (W) × 43.6 (H) | 442 (L) × 320 (W) × 43 (H) | 442 (L) × 320 (W) × 43 (H) |
| Weight (kg) | 3.2 | 4.5 | 6.5 |
| Port Forwarding Rate(Mpps) | 71.424 | 89.280 | 95.232 |
| Item | Feature | |||
| Model | SUN-GE9104BP-VS | SUN-GE9108BP-VS | SUN-GE9116BP-VS | |
| Uplink Ports | QTY | 8 | 16 | 12 |
| Ethernet Interface | 4×10/100/1000M RJ45 Ports, auto-negotiable | 8×10/100/1000M RJ45 Ports, auto-negotiable | 4×10/100/1000M RJ45 Ports, auto-negotiable | |
| Optical Interface | 4×SFP/SFP+ slots | 4×SFP and 4×SFP+ slots | 4×SFP and 4×SFP+ slots | |
| PON Ports | QTY | 4 | 8 | 16 |
| Interface | SFP slots | |||
| Max Splitting Ratio |
1:64 | |||
| Supported PON Module Level | PX20, PX20+, PX20++, PX20+++ | |||
| Max Transmission (km) | 20 | |||
| Speed (Gbps) | 1.25 | |||
| Wavelengths (nm) | 1310 (RX )/1490 (TX) | |||
| Optical Port | SC/UPC | |||
| Fiber Type | 9/125um SMF | |||
| Management Modes | SNMP/Telnet/CLI/WEB/SSH v2 | |||
| Layer-2 Switch | VLAN port and VLAN protocol VLAN TAG/UNTAG, VLAN transparent, VLAN transmission, QinQ 4096 VLAN 802.3dd trunk RSTP, MSTP QOS based on port, VID, TOS and MAC address IGMP snooping 802.x flow control Port stability statistic and monitoring 16K MAC address 256 IP MulticastGroups P2P function |
|||
| EPON Functions | Port-based rate limitation and bandwidth control In compliance with IEEE802.3ah standard Data encryption, multi-cast, port VLAN, separation, RSTP, etc Dynamic Bandwidth Allocation (DBA) ONU auto-discovery/Link detection/remote upgrade of software VLAN division and user separation to avoid broadcast storm Various LLID configuration and single LLID configuration Different user and different service could provide different QoS by means of different LLID channels Power-off alarm function, easy for link problem detection Broadcasting storm resistance function Port isolation between different ports ACL to configure data packet filter flexibly Specialized design for system breakdown prevention to maintain stable system Dynamic distance calculation on EMS online |
|||
| Management Functions | Fan Group Control Port Status monitoring and configuration management Online ONU configuration and management User management, Alarm management |
|||
| No. | Name | Unit | Quantity |
| 1 | Optical Line Terminal (OLT) | set | 1 |
| 2 | Power Line | piece | 1 |
| 3 | Console Line | piece | 1 |
| 4 | USB Disk | piece | 1 |
| No. | Name | Unit | Quantity |
| 1 | Downlink 1.25G Optical Transceiver | pieces | 1~8 |
| 2 | Uplink 1.25G Optical Transceiver | pieces | 1~8 |
| 3 | Uplink 10G Optical Transceiver | pieces | 1~4 |
| Model | Name | Description |
| SUN-GE9104BP-AC-VS | Optical Line Terminal (OLT) | 1U rack mount; 4 ports of uplink 10/100/1000M RJ45, 4 slots for uplink optical SFP/SFP+ modules and 4 slots for downlink optical SFP modules; 1 port of CONSOLE and 1 port of management; Free EMS software; Single power supply: AC100-240V |
| SUN-GE9104BP-DC-VS | Optical Line Terminal (OLT) | 1U rack mount; 4 ports of uplink 10/100/1000M RJ45, 4 slots for uplink optical SFP/SFP+ modules and 4 slots for downlink optical SFP modules; 1 port of CONSOLE and 1 port of management; Free EMS software; Single power supply: DC-36~-75V |
| SUN-GE9104BP-2AC-VS | Optical Line Terminal (OLT) | 1U rack mount; 4 ports of uplink 10/100/1000M RJ45, 4 slots for uplink optical SFP/SFP+ modules and 4 slots for downlink optical SFP modules; 1 port of CONSOLE and 1 port of management; Free EMS software; Dual power supply: AC100-240V |
| SUN-GE9104BP-2DC-VS | Optical Line Terminal (OLT) | 1U rack mount; 4 ports of uplink 10/100/1000M RJ45, 4 slots for uplink optical SFP/SFP+ modules and 4 slots for downlink optical SFP modules; 1 port of CONSOLE and 1 port of management; Free EMS software; Dual power supply: DC-36~-75V |
| SUN-GE9108BP-AC-VS | Optical Line Terminal (OLT) | 1U rack mount; 8 ports of uplink 10/100/1000M RJ45, 4 slots for uplink optical SFP modules and 4 slots for uplink optical SFP+ modules, 8 slots for downlink optical SFP modules; 1 port of CONSOLE and 1 port of management; Free EMS software; Single power supply: AC100-240V |
| SUN-GE9108BP-DC-VS | Optical Line Terminal (OLT) | 1U rack mount; 8 ports of uplink 10/100/1000M RJ45, 4 slots for uplink optical SFP modules and 4 slots for uplink optical SFP+ modules, 8 slots for downlink optical SFP modules; 1 port of CONSOLE and 1 port of management; Free EMS software; Single power supply: DC-36~-75V |
| SUN-GE9108BP-2AC-VS | Optical Line Terminal (OLT) | 1U rack mount; 8 ports of uplink 10/100/1000M RJ45, 4 slots for uplink optical SFP modules and 4 slots for uplink optical SFP+ modules, 8 slots for downlink optical SFP modules; 1 port of CONSOLE and 1 port of management; Free EMS software; Dual power supply: AC100-240V |
| SUN-GE9108BP-2DC-VS | Optical Line Terminal (OLT) | 1U rack mount; 8 ports of uplink 10/100/1000M RJ45, 4 slots for uplink optical SFP modules and 4 slots for uplink optical SFP+ modules, 8 slots for downlink optical SFP modules; 1 port of CONSOLE and 1 port of management; Free EMS software; Dual power supply: DC-36~-75V |
| SUN-GE9116BP-AC-VS | Optical Line Terminal (OLT) | 1U rack mount; 4 ports of uplink 10/100/1000M RJ45, 4 slots for uplink optical SFP modules and 4 slots for uplink optical SFP+ modules, 16 slots for downlink optical SFP modules; 1 port of CONSOLE and 1 port of management; Free EMS software; Single power supply: AC100-240V |
| SUN-GE9116BP-DC-VS | Optical Line Terminal (OLT) | 1U rack mount; 4 ports of uplink 10/100/1000M RJ45, 4 slots for uplink optical SFP modules and 4 slots for uplink optical SFP+ modules, 16 slots for downlink optical SFP modules; 1 port of CONSOLE and 1 port of management; Free EMS software; Single power supply: DC-36~-75V |
| SUN-GE9116BP-2AC-VS | Optical Line Terminal (OLT) | 1U rack mount; 4 ports of uplink 10/100/1000M RJ45, 4 slots for uplink optical SFP modules and 4 slots for uplink optical SFP+ modules, 16 slots for downlink optical SFP modules; 1 port of CONSOLE and 1 port of management; Free EMS software; Dual power supply: AC100-240V |
| SUN-GE9116BP-2DC-VS | Optical Line Terminal (OLT) | 1U rack mount; 4 ports of uplink 10/100/1000M RJ45, 4 slots for uplink optical SFP modules and 4 slots for uplink optical SFP+ modules, 16 slots for downlink optical SFP modules; 1 port of CONSOLE and 1 port of management; Free EMS software; Dual power supply: DC-36~-75V |
| SUN-SFP-125013-20LC | Optical Transceiver | 1.25Gb/s, 1310nm; SM, dual fiber, 20km; LC/UPC port, without DDM |
| SUN-SFP-10G13-10LC-D | Optical Transceiver | SFP+, 10Gbps, 1310nm; SM, dual fiber, 10km; LC/UPC port, with DDM |
| SUN-GE9100B-GS20D-VS | Optical Transceiver | Downlink optical SFP module, 1.25G, single-mode single fiber, 1490nm TX/1310nm RX, SC/UPC port, 20km; Used in SUN-GE9100B-VS series OLT |

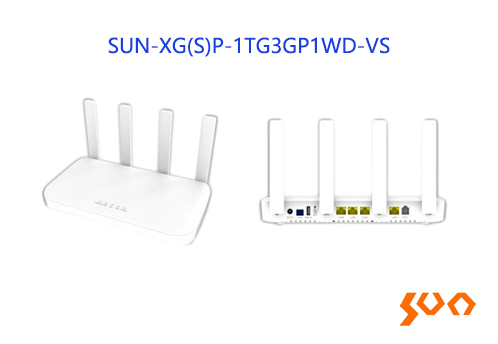

SUN-XG(S)P-1TG3GP1WD-VS Optical Network Unit (ONU)
Model: SUN-XG(S)P-1TG3GP1WD-VS
Features
10G PON Solution Realtek Chipset Next-Gen Gigabit WiFi6, 2.4GHz & 5GHz Dual Band, Speed up to 1.8 G IPv4/IPv6 Dual Stack USB3.0 Interface For Shared Storage/Printer

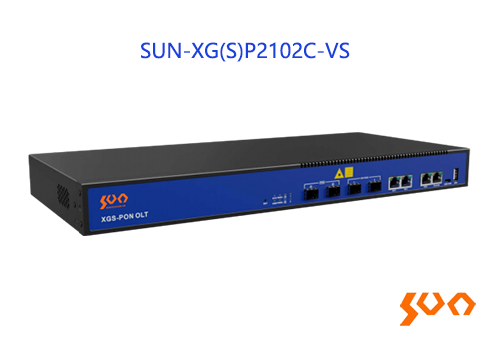

SUN-XG(S)P2102C-VS Optical Line Terminal (OLT)
Model: SUN-XG(S)P2102C-VS
Features
GPON/XGPON/XGSPON selectable 10Gbps high-speed rate Space saving Convenient for installation and maintenance Maximum 2×PON ports and 2×10GE/GE optical uplink ports

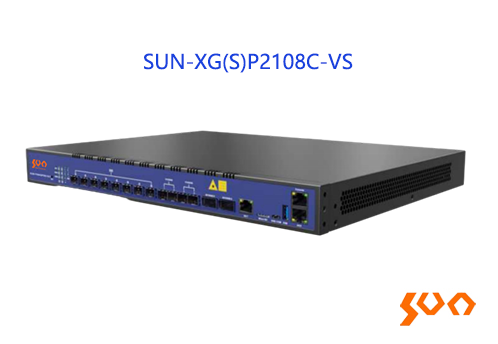

SUN-XG(S)P2108C-VS Optical Line Terminal (OLT)
