| Parameters | Specification |
| Package | 1U 19” rack mount |
| Hot-swappable | Support |
| Power Supply (V) | AC: 100~240 (single or dual power optional) |
| Power Consumption (W) | 150 |
| Working Temperature (°C) | -20~+60 |
| Storage Temperature (°C) | -40~+70 |
| Humidity (%) | 5~95, no condensing |
| Backplane Bandwidth (Gbps) | 1960 |
| Dimensions (mm) | 442 (L) × 330 (W) × 43.6 (H) |
| Weight (kg) | 4.8 |
| Port Forwarding Rate(Mpps) | 566.928 |

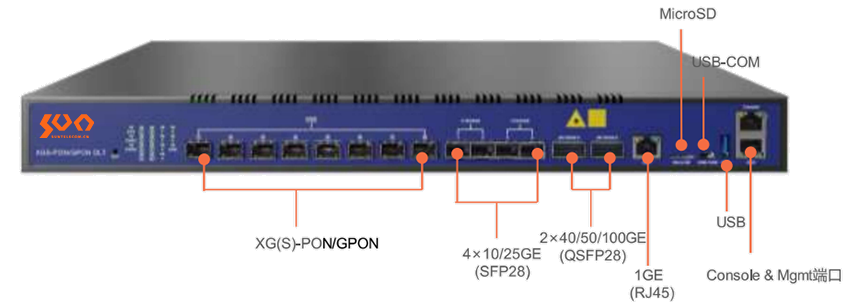

| Item | Feature | |
| Uplink Ports | QTY | 7 |
| Ethernet Interface | 1×10/100/1000M RJ45 Ports, auto-negotiable | |
| Optical Interface | 4×SFP28 (25GE) 2×QSFP28 (25GE/50GE/100GE) |
|
| PON Ports | QTY | 8 |
| Interface | SFP+ slots | |
| Connector Type | XG(S)PON & GPON Combo mode: N2_C+ GPON mode: Class B+/C/C+/C++/C+++/C++++ |
|
| Max Splitting Ratio | 1:128 | |
| Rate (Gbps) | GPON: 1.244(uplink), 2.488(downlink) XGPON: 2.488(uplink), 9.953(downlink) XGSPON: 9.953(uplink), 9.953(downlink) |
|
| Max Transmission (km) | 20 | |
| Wavelength (nm) | GPON: 1310(uplink)/1490(downlink) XG(S)PON: 1270(uplink)/1577(downlink) |
|
| Support PON Ports | PON 1~8 (The default 8 PON ports are in XG(S)PON & GPON Combo mode, and each PON port can be manually hot-switched to GPON mode) | |
| Power Supply Lightning Protection (KV) | 6 | |
| Interface Lightning Protection (KV) | 4 | |
| Fan | Number | 4 |
| Management Port | 1*10/100/1000 BASE-T out-of-band port, 1 *Console port, 1*Type-C USB console port, 1* USB3.0 port, 1*MicroSD port | |
| Management Mode | CLI(Console/Telnet/SSH)/WEB/SNMP | |
| Layer-2 Function | 32K MAC address 4096 VLAN VLAN port VLAN TAG/UNTAG, VLAN transparent transmission, VLAN conversion and QinQ Port-based storm control Port isolation and port rate limiting 802.1D and 802.1W Static/Dynamic LACP based on port, VID, TOS and MAC address QoS Access control list IEEE802.x flow control Port stability statistic and monitoring |
|
| Multicast | IGMP snooping 2048 IP multicast groups |
|
| DHCP | DHCP server, DHCP relay, DHCP snooping DHCP option82 |
|
| Layer-3 Route | ARP proxy 4096 hardware host routing and 512 hardware subnet routing Radius,Tacacs+ IP source protection Static routes, dynamic routes RIP v1/v2, RIPng and OSPF v2/v3 |
|
| IPv6 | NDP IPv6 Ping, IPv6 Telnet, IPv6 routing ACL based on source IPv6 address, destination IPv6 address, L4 port, protocol type, etc MLD v1/v2 snooping |
|
| PON Function | T-cont DBA x-GEM flow rate Compliant with ITU-T G.9807 (XGSPON), ITU-TG.987 (XGPON) and ITU-T G.984.x Data encryption, multi-cast, port VLAN, segregation, RSTP, etc. ONT automatic discovery / link detection / software remote upgrade lVLAN division and user separation to avoid broadcast storm Power-off alarm function, easy for link problem detection Broadcasting storm resistance function Port isolation between different ports ACL and SNMP to configure data packet filter flexibly Specialized design for system breakdown prevention to maintain stable system RSTP, IGMP agent |
|
| Management Function | SNMP, Telnet, CLI, WEB, SSH v2 Fan Group Control Port Status monitoring and configuration management Online ONU configuration and management User management, Alarm management |
|
| No. | Name | Unit | Quantity |
| 1 | Optical Line Terminal (OLT) | set | 1 |
| 2 | Power Line | piece | 1 |
| 3 | Console Line | piece | 1 |
| 4 | USB Disk | piece | 1 |
| No. | Name | Unit | Quantity |
| 1 | Downlink 10G Optical Transceiver | pieces | 8 |
| 2 | Uplink 25G Optical Transceiver | pieces | 4 |
| 3 | Uplink 100G Optical Transceiver | pieces | 2 |
| Model | Name | Description |

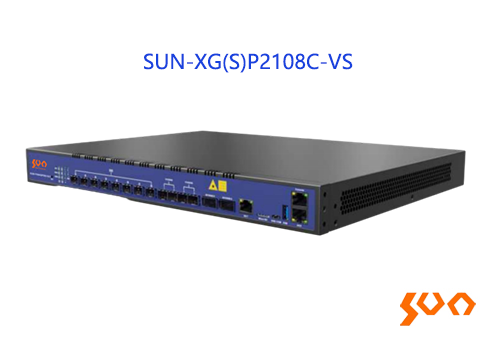

| SUN-XG(S)P2108C-VS-AC | Optical Line Terminal (OLT) | 1U rack mount; 1 port of uplink 10/100/1000M RJ45, 4 slots for uplink optical 25GE SFP28 modules, 2 slots for uplink optical 25/50/100GE QSFP28 modules and 8 slots for downlink optical SFP+ modules (support 10G Combo/GPON module, optical module not included); 1 port of CONSOLE and 1 port of AUX; EMS software Included; Single power supply: AC100-240V |
| SUN-XG(S)P2108C-VS-2AC | Optical Line Terminal (OLT) | 1U rack mount; 1 port of uplink 10/100/1000M RJ45, 4 slots for uplink optical 25GE SFP28 modules, 2 slots for uplink optical 25/50/100GE QSFP28 modules and 8 slots for downlink optical SFP+ modules (support 10G Combo/GPON module, optical module not included); 1 port of CONSOLE and 1 port of AUX; EMS software Included; Dual power supply: AC100-240V |
| SUN-XGSP2100-10D-Combo-VS | Optical Transceiver | Downlink Combo optical SFP+ (support XGSPON/XGPON/GPON), 10G, single mode and single fiber, 1577nm Tx/1270nm Rx, 1490nm Tx/1310nm Rx, SC/UPC port, 20km |
| SUN-SFP28-25G-LR | Optical Transceiver | SFP28, 25Gbps, 1310nm; SM, dual fiber, max transmission distance: 10km; LC interface, with DDM; Neutral code |
| SUN-QSFP28-LR4 | Optical Transceiver | QSFP28, 100Gbps, 1310nm; SM, dual fiber, max transmission distance: 10km; LC interface, with DDM; Neutral code |
