| Parameters | Specification |
| Package | 1U 19” rack mount |
| Hot-swappable | Support |
| Power Supply (V) | AC: 100~240 (single or dual power optional) DC: -36 ~ -75 (single or dual power optional) |
| Power Consumption (W) | 40 |
| Working Temperature (°C) | -20~+60 |
| Storage Temperature (°C) | -40~+70 |
| Humidity (%) | 5~95, no condensing |
| Backplane Bandwidth (Gbps) | 208 |
| Dimensions (mm) | 442 (L) × 200 (W) × 43.6 (H) |
| Weight (kg) | 2.485 |
| Port Forwarding Rate (Mpps) | 124.992 |
| Item | Feature | |

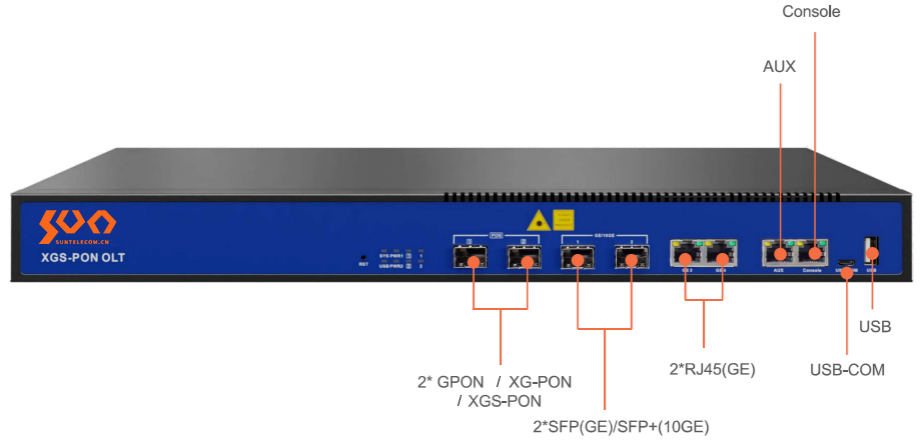

| Uplink Ports | QTY | 4 |
| Ethernet Interface | 2×10/100/1000M RJ45 Ports, auto-negotiable | |
| Optical Interface | 2×SFP/SFP+ slot | |
| PON Ports | QTY | 2 |
| Interface | SFP+ slots | |
| Max Splitting Ratio | 1:128 | |
| Rate (Gbps) | GPON: 1.244(uplink), 2.488(downlink) XGPON: 2.488(uplink), 9.953(downlink) XGSPON: 9.953(uplink), 9.953(downlink) |
|
| Max Transmission (km) | 20 | |
| Wavelength (nm) | GPON: 1490(TX)/1310(RX) XG(S)PON: 1577(TX)/1270(RX) |
|
| Connector Type | SC/UPC | |
| Fiber Type | 9/125um SMF | |
| Management Port | 1*10/100/1000M BASE-T out-of-band management port, 1 *CONSOLE port, 1*USB-COM, 1* USB2.0 port | |
| Management Mode | Telnet/CLI/WEB | |
| Layer-2 Function | 16K MAC address 4096 VLAN VLAN port VLAN TAG/UNTAG, VLAN transparent, VLAN transmission, QinQ Port-based storm control Port isolation and port rate limiting 802.1D and 802.1W Static LACP, dynamic LACP Access control list IEEE802.x flow control Port stability statistic and monitoring |
|
| Multicast | IGMP snooping 1k L2 multicast and 1k L3 multicast |
|
| DHCP | DHCP server, DHCP relay, DHCP snooping DHCP option82 |
|
| Layer-3 Route | ARP proxy 16k hardware host routing and 1024 hardware subnet routing Static route |
|
| IPv6 | NDP IPv6 Ping, IPv6 Telnet, IPv6 routing ACL based on source IPv6 address, destination IPv6 address, L4 port, protocol type, etc MLD v1/v2 snooping (Multicast Listener Discovery snooping) |
|
| PON Function | T-cont DBA Gemport traffic Compliant with ITU-T G.984 (GPON), ITU-TG.987 (XGPON), ITU-T G.9807 (XGSPON) Data encryption, multi-cast, port VLAN, segregation, RSTP, etc. ONT automatic discovery / link detection / software remote upgrade VLAN division and user separation to avoid broadcast storm Power-off alarm function, easy for link problem detection Broadcasting storm resistance function Port isolation between different ports ACL to configure data packet filter flexibly Specialized design for system breakdown prevention to maintain stable system |
|
| Management Function | Fan Group Control Port Status monitoring and configuration management Online ONU configuration and management User management, Alarm management |
|
| No. | Name | Unit | Quantity |
| 1 | Optical Line Terminal (OLT) | Set | 1 |
| 2 | Power Line | Piece | 1 |
| 3 | Console Line | Piece | 1 |
| 4 | USB Disk | Piece | 1 |
| No. | Name | Unit | Quantity |
| 1 | Downlink 10G Optical Transceiver | Pieces | 2 |
| 2 | Downlink 2.5G Optical Transceiver | Pieces | 2 |
| 3 | Uplink 1.25G Optical Transceiver | Pieces | 2 |
| 4 | Uplink 10G Optical Transceiver | Pieces | 2 |
| Model | Name | Description |

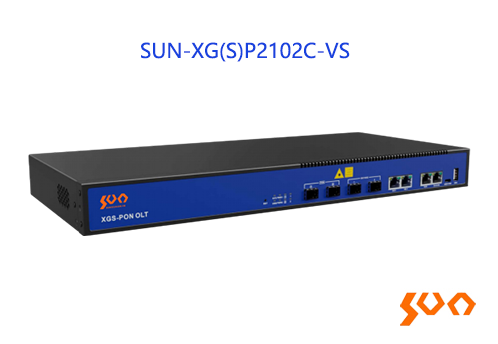

| SUN-XG(S)P2102C-VS-AC | Optical Line Terminal (OLT) | 1U rack mount; 2 ports of uplink 10/100/1000M RJ45, 2 slots for uplink optical SFP/SFP+ modules and 2 slots for downlink optical SFP+ modules (support manual switching of 10G Combo/GPON modules, optical module not included); 1 port of CONSOLE and 1 port of AUX; EMS software Included; Single power supply: AC100-240V |
| SUN-XG(S)P2102C-VS-DC | Optical Line Terminal (OLT) | 1U rack mount; 2 ports of uplink 10/100/1000M RJ45, 2 slots for uplink optical SFP/SFP+ modules and 2 slots for downlink optical SFP+ modules (support manual switching of 10G Combo/GPON modules, optical module not included); 1 port of CONSOLE and 1 port of AUX; EMS software Included; Single power supply: DC-36~-75V |
| SUN-XG(S)P2102C-VS-2AC | Optical Line Terminal (OLT) | 1U rack mount; 2 ports of uplink 10/100/1000M RJ45, 2 slots for uplink optical SFP/SFP+ modules and 2 slots for downlink optical SFP+ modules (support manual switching of 10G Combo/GPON modules, optical module not included); 1 port of CONSOLE and 1 port of AUX; EMS software Included; Dual power supply: AC100-240V |
| SUN-XG(S)P2102C-VS-2DC | Optical Line Terminal (OLT) | 1U rack mount; 2 ports of uplink 10/100/1000M RJ45, 2 slots for uplink optical SFP/SFP+ modules and 2 slots for downlink optical SFP+ modules (support manual switching of 10G Combo/GPON modules, optical module not included); 1 port of CONSOLE and 1 port of AUX; EMS software Included; Dual power supply: DC-36~-75V |
| SUN-XG(S)P2102C-VS-AC-DC | Optical Line Terminal (OLT) | 1U rack mount; 2 ports of uplink 10/100/1000M RJ45, 2 slots for uplink optical SFP/SFP+ modules and 2 slots for downlink optical SFP+ modules (support manual switching of 10G Combo/GPON modules, optical module not included); 1 port of CONSOLE and 1 port of AUX; EMS software Included; Dual power supply: AC100-240V and DC-36~-75V |
| SUN-XGSP2100-10D-Combo-VS | Optical Transceiver | Downlink Combo optical SFP+ (support XGSPON/XGPON/GPON), 10G, single mode and single fiber, 1577nm Tx/1270nm Rx, 1490nm Tx/1310nm Rx, SC/UPC port, 20km |
| SUN-GP1100-25D-C4+ | Optical Transceiver | Downlink optical SFP, 2.5G, single mode and single fiber, 1490nmTX/1310nm RX, SC/UPC port, 20km, Class C++++; Suitable OLT for VS |
| SUN-SFP-125013-20LC-D | Optical Transceiver | SFP, 1.25Gbps, 1310nm; SM, dual fiber, max transmission distance: 20km; LC interface, with DDM; Neutral code |
| SUN-SFP-10G13-10LC-D | Optical Transceiver | SFP+, 10Gbps, 1310nm; SM, dual fiber, 10km; LC/UPC port, with DDM |
SUN-XG(S)P-1TG3GP1WD-VS Optical Network Unit (ONU)
Model: SUN-XG(S)P-1TG3GP1WD-VS
Features
10G PON Solution Realtek Chipset Next-Gen Gigabit WiFi6, 2.4GHz & 5GHz Dual Band, Speed up to 1.8 G IPv4/IPv6 Dual Stack USB3.0 Interface For Shared Storage/Printer
SUN-GPE1201G1FRW-VS Optical Network Unit (ONU)
Model: SUN-GPE1201G1FRW-VS
Dual mode (GPON/EPON), 1 port of SC/APC, 1 port of 10/100/1000M, 1 port of 10/100M RJ45 and 1 port of CATV (British), with wifi
Features
Dual Mode( can access gpon/epon olts ). Plug and play, features auto-detecting, auto-configuration, and auto firmware upgrade, etc. Integrated OMCI remote configuration and maintenance function. Support rich QinQ VLAN functions and IGMP Snooping multicast features. Fully compatibility with OLT based on Broadcom/PMC/Cortina chipset. Support 802.11n WiFi (2T2R) function. Support NAT, Firewall function. Support IPv4 and IPv6 dual stack.
SUN-GPE1201G1FP1RW-VS Optical Network Unit (ONU)
Model: SUN-GPE1201G1FP1RW-VS
Dual mode (GPON/EPON), 1 port of SC/APC, 1 port of 10/100/1000M, 1 port of 10/100M RJ45, 1 port of VOIP POTS and 1 port of CATV (British), with wifi
Features
Dual Mode( can access gpon/epon olts ). Plug and play, features auto-detecting, auto-configuration, and auto firmware upgrade, etc. Integrated OMCI remote configuration and maintenance function. Support rich QinQ VLAN functions and IGMP Snooping multicast features. Fully compatibility with OLT based on Broadcom/PMC/Cortina chipset. Support 802.11n WiFi (2T2R) function. Support NAT, Firewall function. Support IPv4 and IPv6 dual stack. Integrated line testing compliant with GR-909 on POTS.

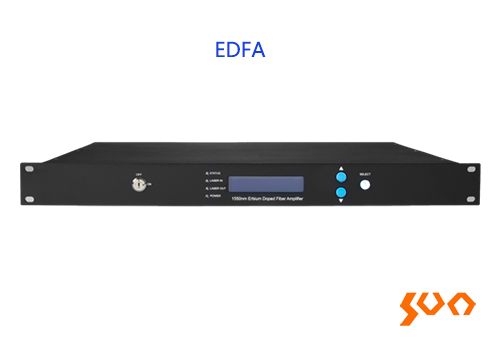

SUN-FA Fiber Amplifier
