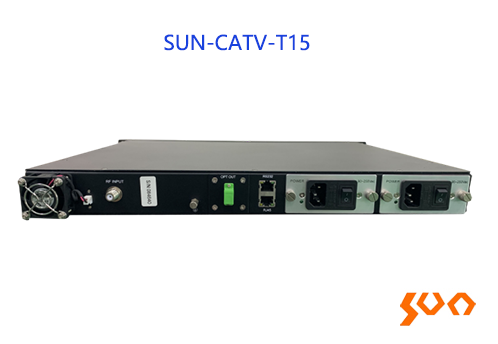

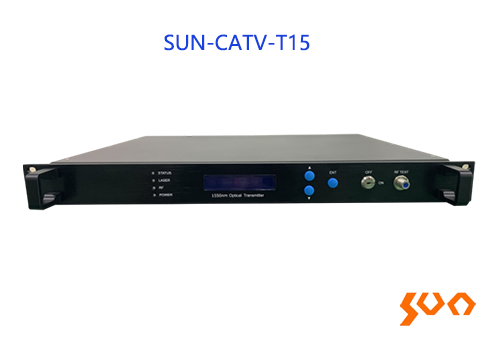

SUN-CATV-T15 Optical Transmitter

Model: SUN-CATV-T15

CATV transmitter, RF input, multiple fiber ports output

    Key Features

  • DFB lasers support maximum output power 16mW
  • Perfect pre-distortion circuit
  • AGC automatic gain control
  • LED displays the working conditions and trouble alarm
  • Description
  • Specifications
  • Ordering Information
  • Applications
  • FAQ
  • Product Video
  • Sun Telecom's SUN-CATV-T15 series of optical transmitter is a transmission equipment of CATV used in the FTTH project and it changes RF signal to optical signal that can transmit maximum 20km distance instead of 400m.
  • Specifications
    Parameters Specification
    Optic Power (mW ) 2 ~ 16
    Wavelength (nm ) 1310/1550
    Optical Connector FC/APC, SC/APC (optional)
    Max. Transmission (km) 20
    Working Bandwidth (MHz) 45 ~ 1000
    CNR (dB) 51
    CTB (dB) ≥ 65
    CSO (dB) ≥ 60
    RF Input Power (dBµV) AGC 78 ± 5
    Non AGC 70 ~ 110
    Band Unflatness (dB) ≤ 0.75
    Power Loss (W) ≤ 30
    Working Voltage (V) AC: 90 ~ 265V
    DC: -48V (Optional)
    Working Temperature (°C) -20 ~ +85
    Dimensions (mm) 483(L) x 380(W) x 44.5(H)
    Weight (kg) 5.0

    Standard Accessories

    No. Name Unit Quantity
    1 Optical Transmitter set 1
    2 Power Adapter piece 1 or 2

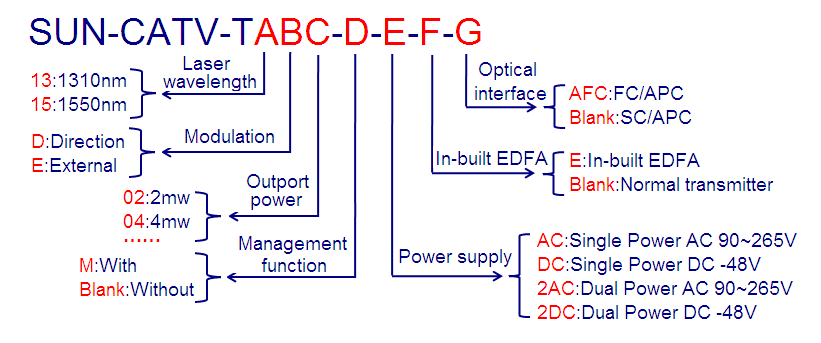

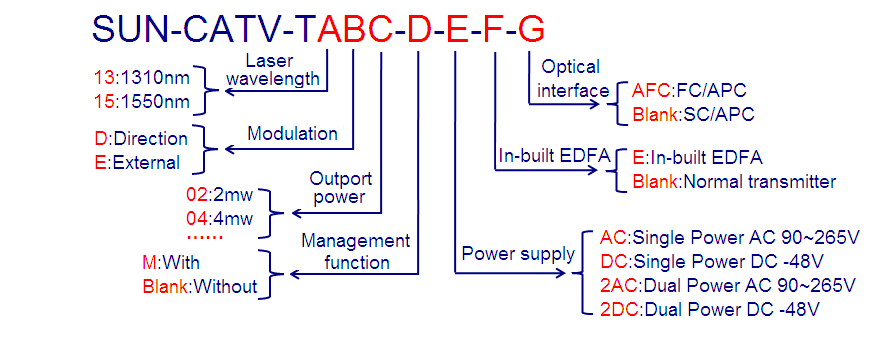

  • Example: SUN-CATV-T15D02-AC
    Direct Modulation; Laser Wavelength: 1550nm; Optical Interface: SC/APC or FC/APC optional; One Output port, Output Power: ≥2mW; Transmission distance: < 20km; Single Power supply: 90~265V

  • ● FTTH solutions
    ● Cable television distribution network
    ● EOC network
