Dual Mode(GPON/EPON), 1 port of SC/UPC, 1 port of 10/100/1000M RJ45
| Parameters | Specification |
| Rate (Gbps) | Uplink: 1.244 Downlink: 2.488 |
| PON Interface | 1 GPON/EPON port(EPON PX20+ and GPON Class B+) |
| Optical Output Rate (dBm) | 0~4 |
| Receiving Sensitivity (dBm) | -28 |
| Receiving Saturability (dBm) | -8 |
| PON Interface | 1 |
| Data Interface | 1*10/100/1000Base-T |
| Power Supply | External power adapter, 12V/0.5A |
| Working Temperature (ºC) | 0~50 |
| Humidity (%) | 5~95 (no condensing) |
| Dimensions (mm) | 82(L) × 82(W) × 25(H) |
| Weight (g) | 85 |
| No. | Product | Unit | Quantity |
| 1 | Optical Network Unit (ONU) | set | 1 |
| 2 | Power Adapter | set | 1 |
| 3 | UTP Patch Cord | piece | 1 |
| Model | Name | Description |
| SUN-GPE1201G-VS | Optical Network Unit (ONU) | Dual Mode(GPON/EPON), 1 port of SC/UPC, 1 port of 10/100/1000M RJ45; AC110~220V external power supply |
SUN-GPE1201G-VS Optical Network Unit (ONU)
Model: SUN-GPE1201G-VS
Dual Mode(GPON/EPON), 1 port of SC/UPC, 1 port of 10/100/1000M RJ45
Features
Full compatible with ITU-T G.984 Support 1 GE auto-adapting Ethernet ports Support OMCI and TR069 for remote management Support Auto-negotiation and MDI/MDIX Support the Ethernet interface rate, working mode and flows control configuration Support packet filtering and illegal message attack protection Support performance statistics of Ethernet link Support VLAN tagged label processing, traffic classification and packet filtering,. Support DHCP Option60 reporting the location information of the Ethernet interface
SUN-GPE1201G1FP1RW-VS Optical Network Unit (ONU)
Model: SUN-GPE1201G1FP1RW-VS
Dual mode (GPON/EPON), 1 port of SC/APC, 1 port of 10/100/1000M, 1 port of 10/100M RJ45, 1 port of VOIP POTS and 1 port of CATV (British), with wifi
Features
Dual Mode( can access gpon/epon olts ). Plug and play, features auto-detecting, auto-configuration, and auto firmware upgrade, etc. Integrated OMCI remote configuration and maintenance function. Support rich QinQ VLAN functions and IGMP Snooping multicast features. Fully compatibility with OLT based on Broadcom/PMC/Cortina chipset. Support 802.11n WiFi (2T2R) function. Support NAT, Firewall function. Support IPv4 and IPv6 dual stack. Integrated line testing compliant with GR-909 on POTS.
SUN-GPE1201G1FRW-VS Optical Network Unit (ONU)
Model: SUN-GPE1201G1FRW-VS
Dual mode (GPON/EPON), 1 port of SC/APC, 1 port of 10/100/1000M, 1 port of 10/100M RJ45 and 1 port of CATV (British), with wifi
Features
Dual Mode( can access gpon/epon olts ). Plug and play, features auto-detecting, auto-configuration, and auto firmware upgrade, etc. Integrated OMCI remote configuration and maintenance function. Support rich QinQ VLAN functions and IGMP Snooping multicast features. Fully compatibility with OLT based on Broadcom/PMC/Cortina chipset. Support 802.11n WiFi (2T2R) function. Support NAT, Firewall function. Support IPv4 and IPv6 dual stack.
SUN-GPE1201G3FP2W-VS Optical Network Unit (ONU)
Model: SUN-GPE1201G3FP2W-VS
Dual Mode(GPON/EPON), 1 port of SC/UPC, 1 port of 10/100/1000M RJ45, 3 ports of 10/100M RJ45, 2 ports of VoIP POT, with Wi-Fi
Features
Dual Mode( can access gpon/epon olts ). Plug and play, features auto-detecting, auto-configuration, and auto firmware upgrade, etc. Integrated OMCI remote configuration and maintenance function. Support rich QinQ VLAN functions and IGMP Snooping multicast features. Fully compatibility with OLT based on Broadcom/PMC/Cortina chipset. Support 802.11n WiFi (2T2R) function. Support NAT, Firewall function. Support IPv4 and IPv6 dual stack. Integrated line testing compliant with GR-909 on POTS.

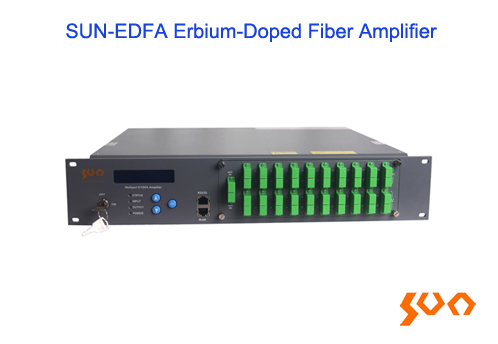

SUN-EDFA Erbium-Doped Fiber Amplifier
Model: SUN-EDFA
EDFA with low power input, high optic power output
Features
VFD or LED displays the working conditions and trouble alarm RJ45 port for SNMP remote management RS232 for local management

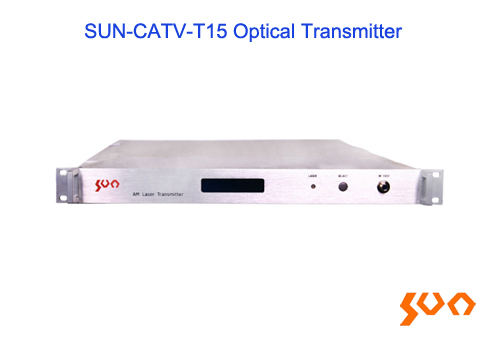

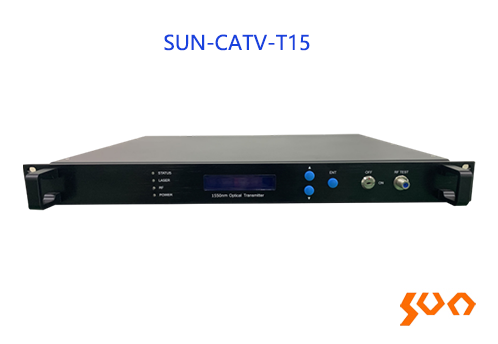

SUN-CATV-T15 Optical Transmitter
Model: SUN-CATV-T15
CATV transmitter, RF input, multiple fiber ports output
Features
DFB lasers support maximum output power 16mW Perfect pre-distortion circuit to guarantee the perfect CTB and CSO when C/N in high standard With AGC automatic gain control to maintain the same output performance of different RF input level VFD or LED displays the correct working condition Standard RS232 port for local management and monitoring Standard RJ 45 port for remote management
