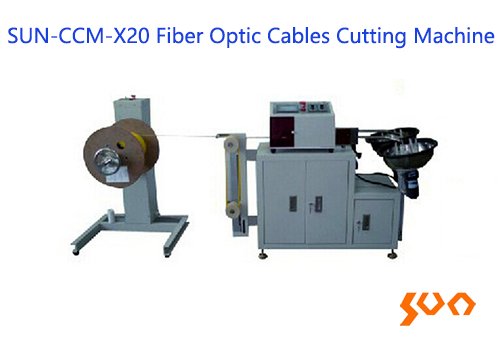

SUN-CCM-X20 Cables Cutting Machine

Model: SUN-CCM-X20

Max cable cutting length: 200m; Applicable cables: 0.9 ~ 7mm

    Key Features

  • Max 200m cable length cutting

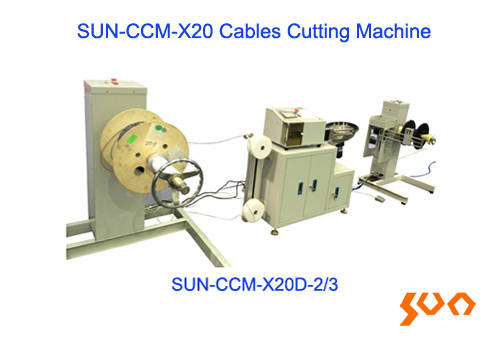

  • Cable arrange function optional (Only for SUN-CCM-X20D-2/3)
  • Touch Screen
  • Description
  • Specifications
  • Ordering Information
  • Applications
  • FAQ
  • Product Video
  • Sun Telecom's SUN-CCM-X20 series touch screen automatic cutting machine is used for fiber optic cable length measurement, cutting, counting and rolling for fiber optic patch cord production. It has the features of automatic and easy to operate, and high efficiency.
  • Specifications
    Parameters Specification
    Model SUN-CCM-X20 SUN-CCM-X20D-2 SUN-CCM-X20D-3
    Cable Receiving Machine N/A With receiving machine (With Normal Cable Arrange function) With receiving machine (With Precision Cable Arrange function)
    Operation Interface Touch screen
    Cutting Speed (m/s) ≤ 1.5
    Cable Length After Cutting (m) 0.3 ~ 200
    Cutting Accuracy (mm) ± (2+ cable length x 0.003)
    Cutting Cable Specifications (mm) φ0.9 ~ 4 φ2 ~ 7
    Power Supply (V) AC 220
    Power Consumption (KW) 1.8
    Gas Source (MPa) ≥ 0.5
    Dimensions (m) 2 (L) x 0.85 (W) x 1.1 (H) 3 (L) x 1 (W) x 1.2 (H)
    Weight (kg) 50 150

    Standard Package
    No. Name Unit Quantity
    1 Cables Cutting Machine piece 1
    2 Power Cable piece 1
    3 USB Disk piece 1

  • Model Name Description
    SUN-CCM-X20 Cables Cutting Machine Max cable cutting length: 0.3 ~ 200m; Applicable cables: 0.9 ~ 4mm; Include two coiling spools (Without cable arrange function) ; Power supply: AC 220V
    SUN-CCM-X20D-2 Cables Cutting Machine Max cable cutting length: 0.3 ~ 200m; Applicable cables: 2 ~ 7mm; Include one cable receiving machine (With Normal cable arrange function) and one coiling spool; Power supply: AC 220V
    SUN-CCM-X20D-2 Cables Cutting Machine Max cable cutting length: 0.3m ~ 200m; Applicable cables: 2 ~ 7mm; Include one cable receiving machine(With Precision cable arrange function) and one coiling spool; Power supply: AC 220V
    SUN-CCM-X20-B Blade Used for SUN-CCM-X20 series cable cutting machine

  • ● Fiber optic patchcord production line
