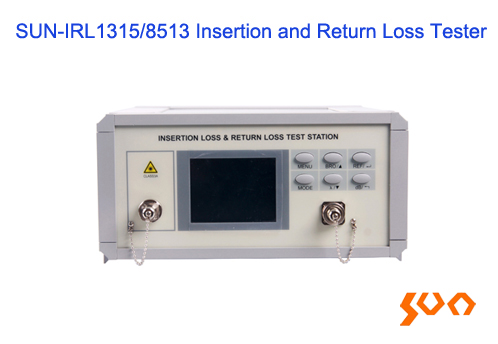

SUN-IRL-A Insertion and Return Loss Tester

Position: Home > Products > Test Equipment > Insertion & Return Loss Testers

Model: SUN-IRL-A

In-built multiple-wavelength light source: 650/850/1310/1550nm

Key Features

Intelligent microprocessor-controlled equipment
Insertion and return loss testing of the optical active devices and passive components
In-built multiple-wavelength light source: 650/850/1310/1550nm
In-built high stability light source (US import detector)
Large color LCD screen

Description
Specifications
Ordering Information
Applications
FAQ
Product Video

Sun Telecom's SUN-IRL-A series of insertion and return loss tester is a multifunctional test instrument composed of a stable light source, high-precision optical power meter and an insertion and return loss tester. It is widely used in the insertion and return loss testing of fiber optic cables, passive devices and communication systems.

Specifications

Parameters		Specification
Model		SUN-IRL851315-V-A	SUN-IRL1315-A
Fiber Type (um)		9/125 and 62.5/125	9/125
Return Loss Test	Interface	FC/APC
	Wavelength (nm)	1310/1550
	Output Power (dBm)	≥-6
	Range (dB)	0 ~ 75
	Absolute Accuracy (dB)	± 1.0
	Relative Accuracy (dB)	± 0.4
Insertion Loss Test	Interface	Interchangeable Interface(FC/SC/ST/LC)
	Wavelength (nm)	850/1310/1550 (1300 optional)
	Detector	InGaAs (φ2 mm probe of U.S. imports)
	Range (dBm)	-80 ~ +10
	Total Uncertainty (%)	± 5
	Linearity (dB)	± 0.02
Multimode test & break detection function only for SUN-IRL851315-V-A
Multimode Test	Multimode Test	Multimode Test
Break Detection	Break Detection	Break Detection
Display		λ: nm, RL: dB, P: dBm (Synchronous display)
Processing Functions		Processing system calibration, auto range, auto-zero, average processing, wavelength selection
Interface Function		RS-232
Power Supply		AC 220V (AC 110V optional)
Operating Temperature (℃)		0 ~ +50
Humidity		< 95%
Dimensions (mm)		95 (H) x 223 (W) x 300 (D)
Weight (kg)		≤ 4

Standard Package

No.	Name	Unit	Quantity
1	Insertion and Return Loss Tester	set	1
2	Power Line	piece	1
3	FC/APC-FC/UPC Patch Cord	piece	2
4	FC Connector	piece	1
5	Adapter (2.5 mm Universal)	piece	1
6	Adapter (1.25 mm Universal)	piece	1
7	FC Adapter	piece	1
8	Bobbin Winder	piece	1
9	USB Disk	piece	1

Model	Name	Description
SUN-IRL851315-V-A	Insertion and return Loss Testers	SM&MM; Return Loss: 1310/1550 nm, 0 ~ 75 dB, FC/APC; Insertion Loss: 850/1310/1550 nm, -80 ~ +10 dBm, FC/2.5 mm universal/1.25 mm universal; Multimode Light Source: 850 nm, FC/PC, only insertion loss; Including VFL function; Power supply: AC 220V
SUN-IRL1315-A	Insertion and return Loss Testers	SM; Return Loss: 1310/1550 nm, 0 ~ 75 dB, FC/APC; Insertion Loss: 1310/1550 nm, -80 ~ +10 dBm, FC/2.5 mm universal/1.25 mm universal; Power supply: AC 220V

● Patch cord production line
● Passive devices production line
● Education and research in optical communication
