Position: Home > Products > Fiber Optic Cable Management > Fiber Optic Splice Closures

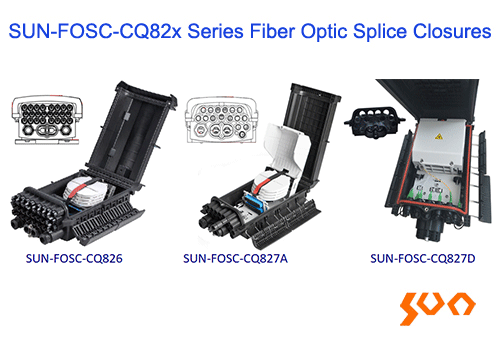

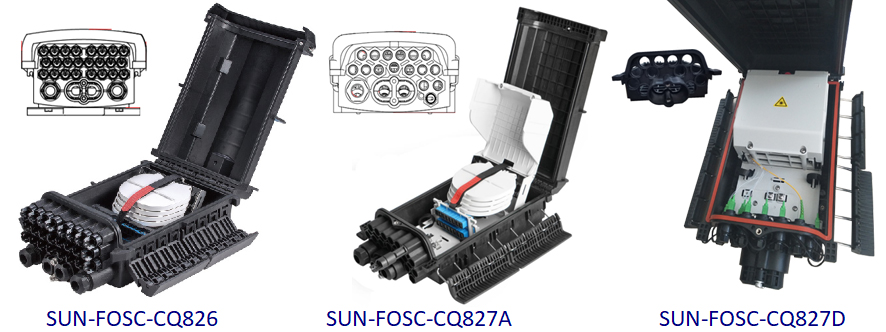

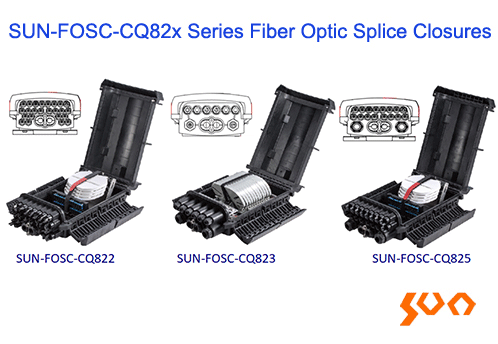

SUN-FOSC-CQ82x Series Fiber Optic Splice Closures

Model: SUN-FOSC-CQ82x

Flip-over type, mechanical sealing, outdoor wall, pole or aerial mounting

    Key Features

  • Compact size and flip-over design without screws, easy to operation
  • Advanced internal design with enough space for fiber splicing and storage
  • Can be installed with blockless type PLC splitters and outdoor adapters (not applied for all modules)
  • Protection rating IP68
  • Outdoor wall, pole or aerial mounting
  • Different type of cable sealing grommets for choice
  • Description
  • Specifications
  • Ordering Information
  • Applications
  • FAQ
  • Product Video
  • Sun Telecom's SUN-FOSC-CQ82x series flip-over type fiber optic splice closures are used for outdoor cable distribution, splicing, storage and splicing point protection. This series of closure can be used on wall mounting or pole mounting.　
  • Parameters
    Specification
    Model
    SUN-FOSC-CQ822
    SUN-FOSC-CQ823
    SUN-FOSC-CQ825
    SUN-FOSC-CQ826
    SUN-FOSC-CQ827A
    SUN-FOSC-CQ827D
    No. of In-out Ports
    1 in 24 out
    3 in 6 out
    3 in 16 out
    3 in 24 out
    2 in 16 out
    1 in 12 out
    Cable Diameter Range (mm)
    1 uncut cable port: (10~17.5): φ8~φ14 &
    φ14~φ17.5

    No branch ports




    24 outlet ports: 2*3
    1 uncut cable port (10~17.5): φ8~φ14 &
    φ14~φ17.5

    2 branch ports:
    (8~13):
    φ8~13


    6 outlet ports: φ6~8
    1 uncut cable port:
    (14~17.5)
    φ14~φ17.5


    2 branch ports: (8~17.5): φ8~φ13 &
    φ13~φ17.5,

    16 outlet ports: 2*3 & φ7 round cable
    1 uncut cable port: (10~17.5)
    φ8~φ14 &
    φ14~φ17.5

    2 branch ports: (8~17.5): φ8~φ13 &
    φ13~φ17.5,

    24 outlet ports: 2*3 & φ7 round cable
    1 uncut
    cable port: (14~17.5)
    φ14~φ17.5


    1 branch ports: (8~17.5): φ8~φ13 &
    φ13~φ17.5,

    16 outlet ports: 2*3
    1 uncut cable port: (14~17.5)
    φ14~φ17.5


    No branch ports




    12 outdoor adapter ports
    Max. Fibers/Tray
    24 (12slots)
    12 (6slots)
    24 (12slots)
    24 (12slots)
    24 (12slots)
    24 (12slots)
    Max. No. of Tray (pcs)
    4
    12
    4
    4
    4
    4
    Max. Capacity (F)
    96
    144
    96
    96
    96
    96
    Max. No. of Adapter (pcs)
    24SC
    /
    16SC
    24SC
    16SC
    12 outdoor waterproof adapters1
    Splitter Type
    1×16 or 1×8 blockless type (micro type)
    Material
    PP+GF
    Sealing Method
    Mechanical sealing
    Protection Rating
    IP68
    Installation Method
    Pole mounting or wall mounting
    Dimensions (mm)
    380×245×130
    380×245×
    155
    370×210×124

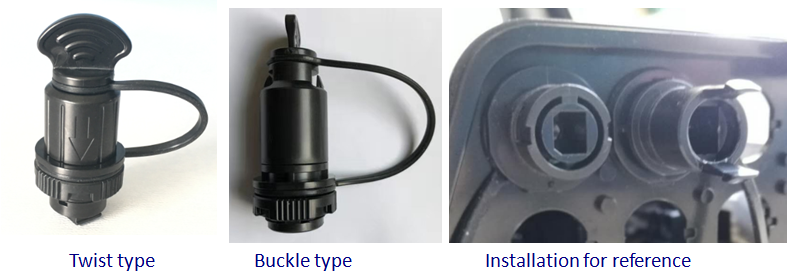

    Note: 1. Available outdoor waterproof adapters as below pictures show
    • Twist type
    •  Buckle type


    Installation

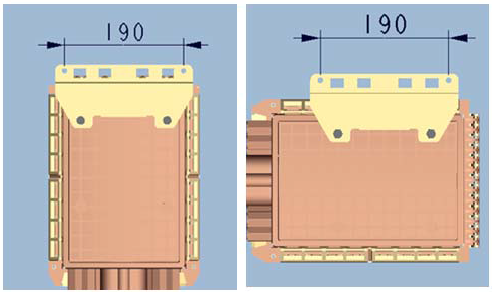

    ● Wall Mounting

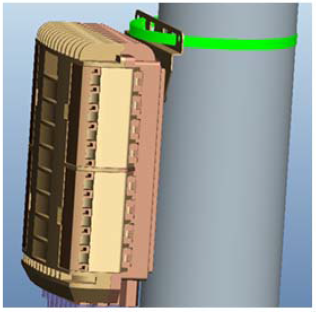

    ● Pole Mounting

    ● Wall Mounting

  • ● FTTH access networks
    ● Telecommunication networks
    ● CATV networks
    ● Local Area Networks
