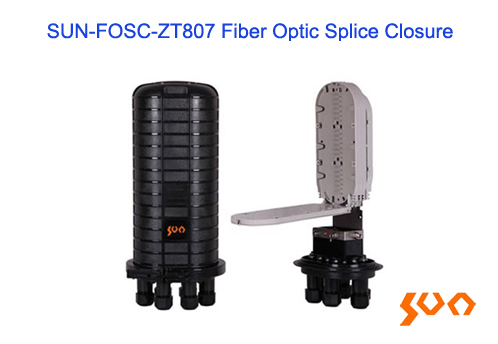

SUN-FOSC-ZT807 Fiber Optic Splice Closure

Model: SUN-FOSC-ZT807

Max 288 fibers, 48 fiber tray, 8~20mm cable, 6 ports, mechanical sealing

    Key Features

  • Advanced internal design with enough space for fiber splicing and storage
  • Long lasting body with high-strength PC plastic material
  • Protection rating IP68
  • Cable ports with mechanical sealing
  • Description
  • Specifications
  • Ordering Information
  • Applications
  • FAQ
  • Product Video
  • Sun Telecom's SUN-FOSC-ZT807 fiber optic splice closure is used for outdoor cable distribution, splicing, storage and splicing point protection. This type of closure can be used in aerial mounting, wall mounting, pole mounting, direct buried and pipeline laying installations.
  • Specifications
    Parameters Specification
    Material PC
    Protection Rating IP68
    No. of In-out Ports 6
    Cable Diameter (mm) 4 holes: 8~16
    2 holes: 8~20
    No. of Fibers/Tray 48
    Max. Capacity of Fibers 288
    Dimensions (mm) 216 (D) × 490 (H)

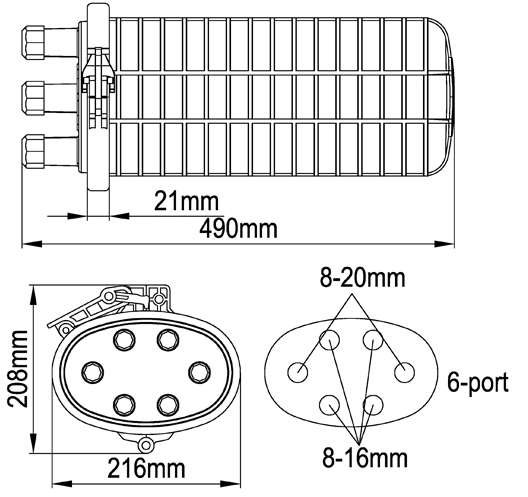

    Structural Drawing


    Standard Package
    No. Name Unit Quantity
    1 Fiber Optic Splice Closure set 1
    2 Protective Sleeves pieces According to no. of fibers
    3 Ties pieces 4× no. of trays+4
    4 Insulation Tape piece 1
    5 Drying Agent piece 1
    6 Ground Wire piece 1
    7 Emery Cloth piece 1
    8 Numbering Paper piece According to no. of fibers
    9 Special Wrenches pieces 2 (butterfly style wrench and small plastic wrench for cable in/out ports)

    Optional Accessories
    No. Name Unit Quantity
    1 Earthing Deriving Device set 1
    2 Valve piece 1
    3 Protection Tube piece 1
    4 Aerial Mounting (Customized) set 1
    5 Wall Mounting (Vertical) set 1
    6 Wall Mounting (Horizontal) (Customized) set 1
    7 Pole Mounting set 1

    Installation
      Application Remark

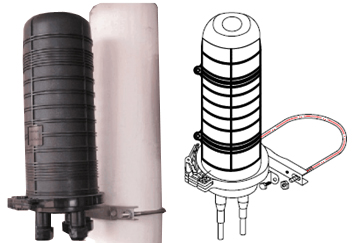

    Pole mounted Another pole mounted method as below picture show, it's designed for the situation some dome type closure whose bottom without screw holes to install mounting bracket, or as customer request.

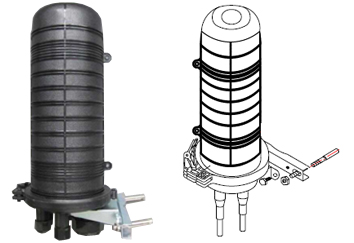

    Wall Mounted (Vertical)

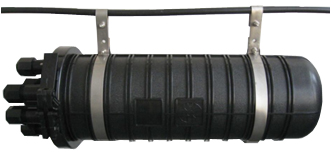

    Aerial
    (MOQ: 200pcs)
    Wall mounted
    (Horizontal, MOQ: 200pcs)    		 For some dome type closure whose bottom without screw holes to install mounting bracket, it only can horizontal wall mounted by this way.

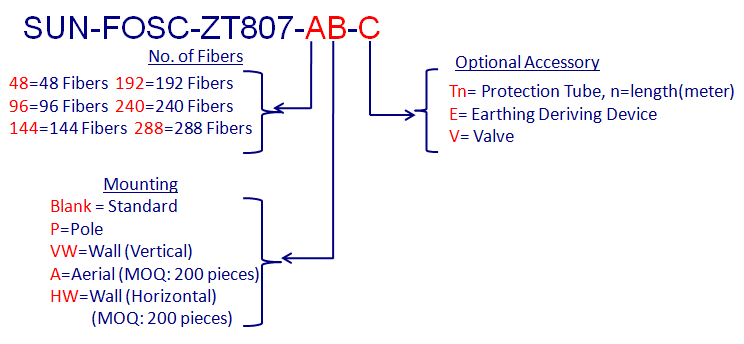

  • Example 1: SUN-FOSC-ZT807-48P
    Dome type, mechanical sealing; 48 fibers, 1 tray of 48 fibers/tray (24 slots/tray) included; 6 cable ports, max capacity: 288 fibers; IP68, material: PC, dimensions (mm): 216 (D)×490 (H); With accessories for pole mounting

    Example 2: SUN-FOSC-ZT807-48VW
    Dome type, mechanical sealing; 48 fibers, 1 tray of 48 fibers/tray (24 slots/tray) included; 6 cable ports, max capacity: 288 fibers; IP68, material: PC, dimensions (mm): 216 (D)×490 (H); With accessories for wall mounting (vertical)
  • ● FTTH access networks
    ● Telecommunication networks
    ● CATV networks
    ● Local Area Networks
