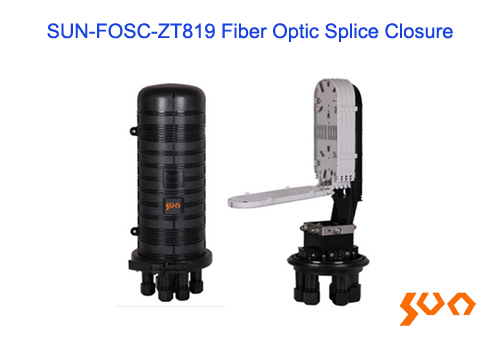

SUN-FOSC-ZT819 Fiber Optic Splice Closures

Model: SUN-FOSC-ZT819

Max 192 fibers, 24 fiber tray, 8~30mm cable, 5 ports, mechanical sealing

    Key Features

  • Advanced internal design with enough space for fiber splicing and storage
  • Long lasting body with high-strength PC plastic material
  • Protection rating IP68
  • Cable ports with mechanical sealing
  • One big round port for straight-through cabling
  • Description
  • Specifications
  • Ordering Information
  • Applications
  • FAQ
  • Product Video
  • Sun Telecom's SUN-FOSC-ZT819 fiber optic splice closure is used for outdoor cable distribution, splicing, storage and splicing point protection. This type of closure can be used in aerial mounting, wall mounting, pole mounting, direct buried and pipeline laying installations.
  • Specifications
    Parameters Specification
    Material PC
    Protection Rating IP68
    No. of In-out Ports 5
    Cable Diameter (mm) 4 holes: 8~13 mm fiber optic cables
    1 big hole: 1 fiber optic  cable 8~30 mm, 2 fiber optic  cables 8~20 mm or 1 fiber optic  cable 14 mm + 2 fiber optic cables 8 mm
    No. of Fibers/Tray 24
    Max. Capacity of Fibers 192
    Dimensions (mm) 228 (D) × 500 (H)

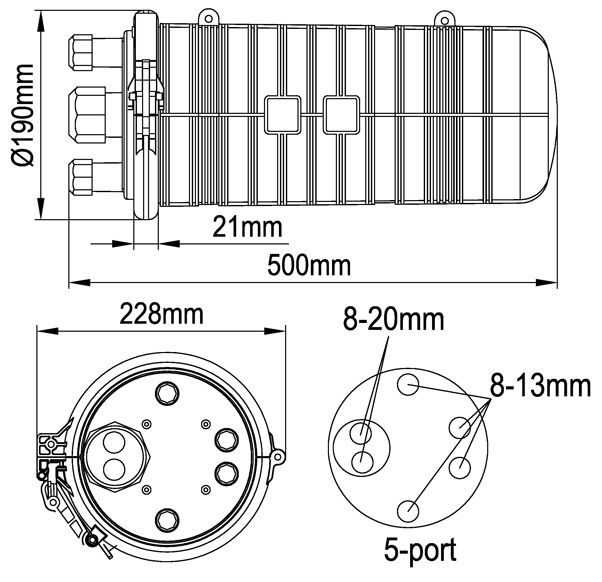

    Structural Drawing


    Standard Package
    No. Name Unit Quantity
    1 Fiber Optic Splice Closure set 1
    2 Protective Sleeves pieces According to no. of fibers
    3 Ties pieces 4×no. of trays+4
    4 Insulation Tape piece 1
    5 Drying Agent piece 1
    6 Ground Wire piece 1
    7 Emery Cloth piece 1
    8 Numbering Paper piece According to no. of fibers
    9 Special Wrenches pieces 2 (butterfly style wrench and small metal wrench for cable in/out ports)

    Optional Accessories
    No. Name Unit Quantity
    1 Earthing Deriving Device set 1
    2 Valve piece 1
    3 Protection Tube piece 1
    4 Aerial Mounting (Customized) set 1
    5 Wall Mounting (Vertical) set 1
    6 Wall Mounting (Horizontal) (Customized) set 1
    7 Pole Mounting set 1
    8 Big Metal Wrench piece Nominal 1 piece in each carton, more quantity is optional

    Installation
      Application Remark

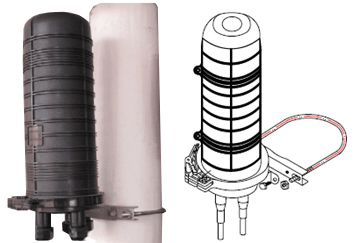

    Pole mounted Another pole mounted method as below picture show, it's designed for the situation some dome type closure whose bottom without screw holes to install mounting bracket, or as customer request.

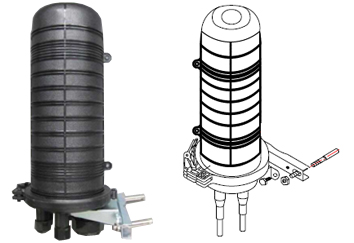

    Wall Mounted (Vertical)

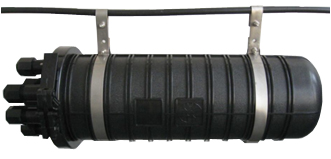

    Aerial
    (MOQ: 200pcs)
    Wall mounted
    (Horizontal, MOQ: 200pcs)    		 For some dome type closure whose bottom without screw holes to install mounting bracket, it only can horizontal wall mounted by this way.

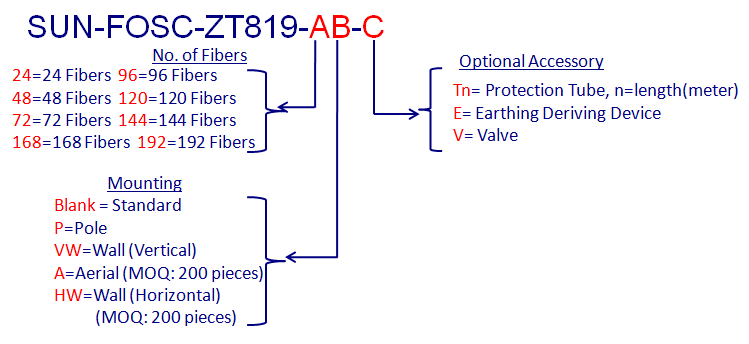

  • Example 1: SUN-FOSC-ZT819-24P
    Dome type, mechanical sealing; 24 fibers, 1 tray of 24 fibers/tray (12 slots/tray) included; 5 cable ports, max capacity: 192 fibers; IP68, material: PC, dimensions (mm): 228 (D)×500 (H); With accessories for pole mounting

    Example 2: SUN-FOSC-ZT819-48VW
    Dome type, mechanical sealing; 48 fibers, 2 trays of 24 fibers/tray (12 slots/tray) included; 5 cable ports, max capacity: 192 fibers; IP68, material: PC, dimensions (mm): 228 (D)×500 (H); With accessories for wall mounting (vertical)
  • ● FTTH access networks
    ● Telecommunication networks
    ● CATV networks
    ● Local Area Networks
