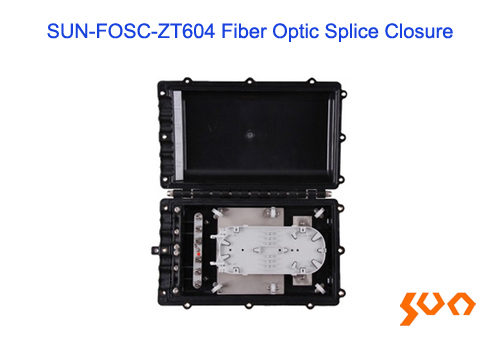

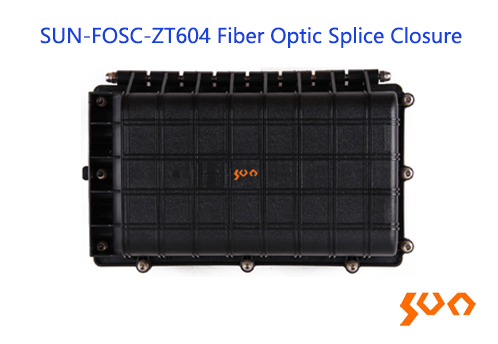

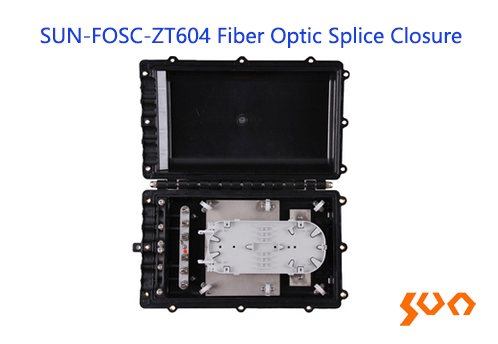

SUN-FOSC-ZT604 Splice Closure

Model: SUN-FOSC-ZT604

Max 288 fibers, 48 fiber tray, 8-23mm cable, 6 ports, screw fastening

    Key Features

  • Advanced internal design with enough space for fiber splicing and storage
  • Long lasting body with high-strength PC plastic material
  • Protection rating IP68
  • Usable for multiple number of times
  • Lower and upper cases with screw fastening locking
  • Description
  • Specifications
  • Ordering Information
  • Applications
  • FAQ
  • Product Video
  • 　Sun Telecom's SUN-FOSC-ZT604 fiber optic splice closure is used for outdoor cable distribution, splicing, storage and splicing point protection. This type of closure can be used in aerial mounting, wall mounting, direct buried and pipeline laying installations.
  • Specifications
    Parameters Specification
    Material PC
    Protection Rating IP68
    No. of In-out Ports 6
    Cable Diameter (mm) 2 holes: 8~16
    2 holes: 8~20
    2 holes: 8~23
    No. of Fibers/Tray 48
    Max. Capacity of Fibers 288
    Dimensions (mm) 385(L) × 248(W) × 120(H)

    Standard Package
    No. Product Unit Quantity
    1 Closure Box set 1
    2 Protective Sleeves pieces According to no. of fibers
    3 Ties pieces 4* no. of trays
    4 Insulation Tape piece 1
    5 Sealing Tape piece 1
    6 Drying Agent piece 1
    7 Ground Wire piece 1
    8 Emery Cloth piece 1
    9 Numbering Paper piece According to no. of fibers
    10 Special Wrenches pieces 3 (butterfly style wrench, and 2pcs Allen wrenches)

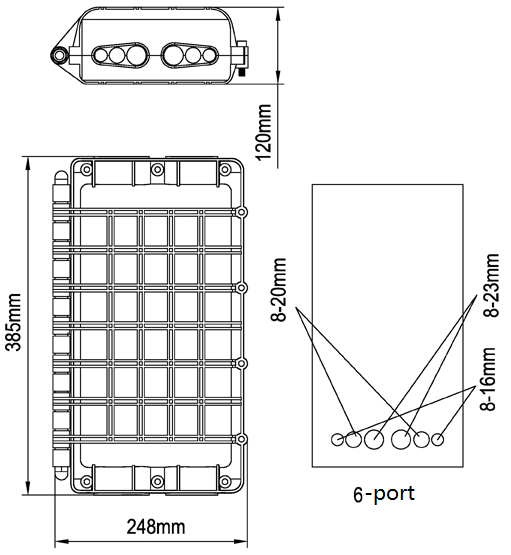

    Structural Drawing


    Optional Accessories
    No. Product Unit Quantity
    1 Earthing Deriving Device set 1
    2 Valve piece 1
    3 Protection Tube piece 1
    4 Aerial Mounting set 1
    5 Wall Mounting set 1

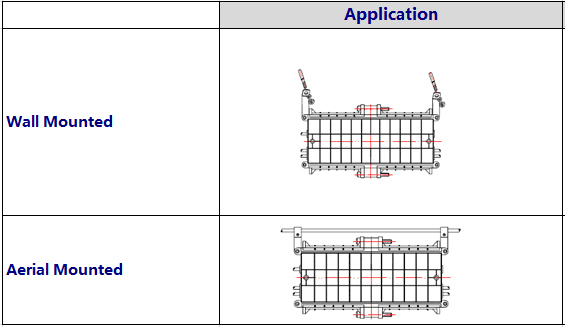

    Installation

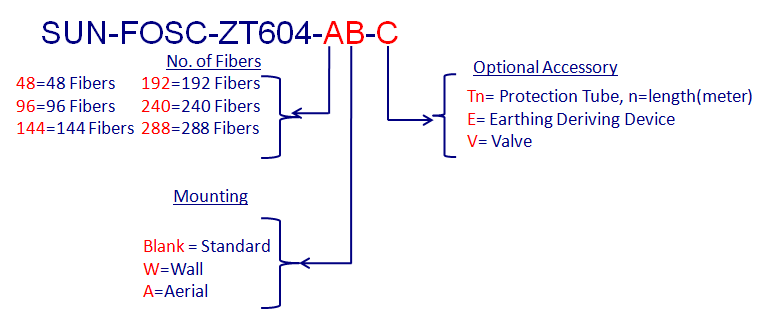

  • Example 1:
    Model Name Description
    SUN-FOSC-ZT604-48A Fiber Optic Splice Closure In-line type, screw fastening; 48 fibers, 1 tray of 48 fibers/tray (24 slots/tray) included; 6 cable ports, max capacity: 288 fibers; IP68, material: PC, dimensions (mm): 385 (L) x 248 (W) x 120 (H); With accessories for aerial application

     Example 2:
    Model Name Description
    SUN-FOSC-ZT604-48W Fiber Optic Splice Closure In-line type, screw fastening; 48 fibers, 1 tray of 48 fibers/tray (24 slots/tray) included; 6 cable ports, max capacity: 288 fibers; IP68, material: PC, dimensions (mm): 385 (L) x 248 (W) x 120 (H); With accessories for wall mounting


  • ● FTTH access networks
    ● Telecommunication networks
    ● CATV networks
    ● Local Area Networks
