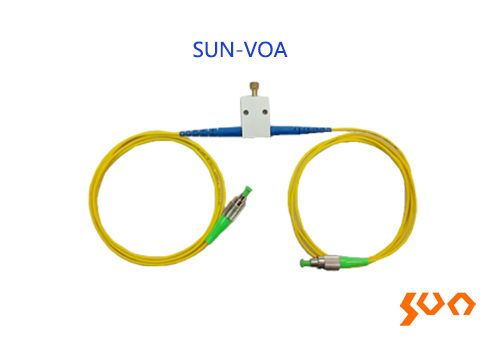

Collimator Type Variable Attenuation
| Parameters | Specification | |||
| Attenuation range (dB) | 0.6 ~ 60 | 0.6 ~ 60 | 0.8 ~ 60 | 0.8 ~ 40 |
| Central Wavelength (nm) | 1310 | 1550 | 1310&1550 | 850&1310 |
| Wavelength Range (nm) | 1310 ± 50 | 1550 ± 50 | 1260 ~ 1650 | 850 & 1310 ± 40 |
| Insertion Loss (dB) | ≤ 0.6 | ≤ 0.8 | ||
| Return Loss (dB) | ≥ 50 | ≥ 35 | ||
| Interface | SC/FC/LC/ST, etc | |||
| Adjustment Precision (dB) | 0.02 | |||
| Operating Temperature (°C) | 0 ~ +70 | |||
| Storage Temperature (°C) | -40 ~ +85 | |||
| Dimensions (mm) | 26 (L) × 18 (W) × 8 (H) | |||
SUN-ODB-OD2BS Terminal Box
Model: SUN-ODB-OD2BS
Outdoor wall mount, Max cores: 36 ⁄ 72, IP65, 1:32 1:64 Splitter
Features
Material: cold-rolled steel Protection Rating IP65 Outdoor wall mount FC square/SC/ST adapter panel Suitable for 1:32 or 1:64 PLC splitter
SUN-OC-SLT-SP Stranded Loose Tube Light-armored (Steel Tape) Cable (GYTS)
Model: SUN-OC-SLT-SP
GYTS, Loose Tube Light-armored (Steel Tape) Cable, 2-144cores
Features
Good mechanical and temperature performance High hydrolysis resistance and high strength loose tube Good crush resistance and flexibility High tensile strength ensured by steel wire Good moisture-proof ensured by PSP Gopher protected cable
SUN-OPM200 Optical Power Meter
Model: SUN-OPM200
FC ⁄ SC ⁄ ST, REF, backlight control, USB port
Features
User self-calibration function Power measurements in dBm or mW Auto power off after 10 minutes without operation Standard FC/SC/ST interchangeable port Backlight LCD display for night operation REF setting function Intelligent backlight control Auto wavelength and frequency identification High storage capacity USB communication port for data transfer
SUN-1000 Ethernet Media Converter
Model: SUN-1000
10 ⁄ 100 ⁄ 1000Mbps, 1xRJ45, 1xOptical port
Features
Compliance with IEEE standards MTBF of more than 50000 hours Full & half duplex operation and auto-negotiation Electric interface self-adapting parallel/crossover connections Longest 1552 byte data packet transmission QoS ensuring VoIP data packet transmission STP Spanning Tree forming a redundant network Low power consumption and low heat for longtime stable operation Single/Multi mode and Single/Dual fiber transmission modes Network Management Function (optional)
SUN-HMS Fiber Optic Microscope
Model: SUN-HMS
200X 400X Optical Magnification, FC ⁄ SC ⁄ ST, LC ⁄ MU, SMA905 interfaces
Features
UPC or APC end face inspection Built-in infrared attenuation filter for safety and reliability On/off switch control Precise focal length adjustment Suitable for various of fiber optic connector end faces inspection
