Position: Home > Products > Fiber Optic Cable Management > Pre-connectorized Distribution Box
IP68; Max. 4 pre-connectorized adapters
Parameters | Specification | |||
Model | SUN-PDN-401A | SUN-PDN-401B | SUN-PDN-401C | |
Material | Box | PP | ||
Metallic Parts | High quality stainless steel | |||
Pre-connectorized Adapter | Number | 5 | 4 | 4 |
Adapter Type | B/C/D/H1 | |||
Suitable Splitter Type | 1x4 blockless type PLC splitter (60*7*4mm) | |||
Type of Input Cable Port | Pre-connectorized adapter*1 | Cable gland*1 | Heat shrinking tube*1*** | |
IP Rating | IP68 | |||
Re-open | Support | |||
Color | Black | |||
Temperature Range (°C) | -40 ~ +85 | |||
Relative Humidity (%) (+30°C) | ≤85 | |||
Atmospheric Pressure (Kpa) | 70~106 | |||
Dimensions (mm) | 198(L) x 101(W) x 70(H) | |||
Installation Method | Wall/ pole/ Aerial |
SUN-PKSC-xM-PKSC-A2-23W Pre-connectorized Patchcord or Pigtail (GJXH)
Model: SUN-PKSC-xM-PKSC-A2-23W
Type K pre-connectorized connector; Flat drop cable (without messenger wire)
Features

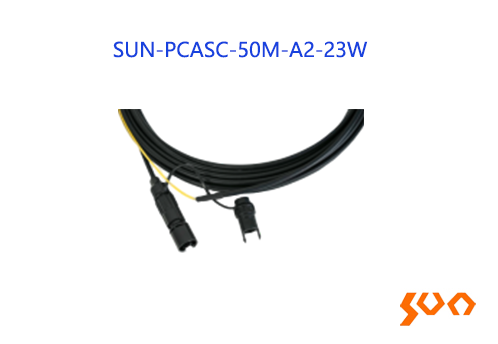

SUN-PCASC-xM-PCASC-A2-23W Pre-connectorized Patchcord or Pigtail (GJXH)
Model: SUN-PCASC-xM-PCASC-A2-23W
Type C pre-connectorized connector; Flat drop cable (without messenger wire)
Features
SUN-PJSC-xM-PJSC-A2-25W Pre-connectorized Patchcord or Pigtail (GJYXCH)
Model: SUN-PJSC-xM-PJSC-A2-25W
Type J pre-connectorized connector; Flat drop cable (with messenger wire)
Features
SUN-PDN-1202 Series Pre-connectorized Distribution Box
Model: SUN-PDN-1202
IP68; Max. 12 pre-connectorized adapters
Features
SUN-PDN-1201 Series Pre-connectorized Distribution Box
Model: SUN-PDN-1201
IP68; Max. 12 pre-connectorized adapters; Fully sealed design
Features
SUN-PDN-1603 Pre-connectorized Distribution Box
Model: SUN-PDN-1603
IP68; Max. 16 pre-connectorized adapters; 8 cable inlet ports
Features
SUN-PDN-302A Pre-connectorized Distribution Box
Model: SUN-PDN-302A
IP68; Max. 3 pre-connectorized adapters
Features
SUN-PDN-801 Pre-connectorized Distribution Box
Model: SUN-PDN-801
IP68; Max. 10 pre-connectorized adapters; Fully sealed design
Features
SUN-PDN-809A Pre-connectorized Distribution Box
Model: SUN-PDN-809A
IP65; 1 oval cable entry, 2 branch cable entries, and 8 pre-connectorized adapters
Features
SUN-PDN-1803 Pre-connectorized Distribution Box
Model: SUN-PDN-1803
IP68; Max. 18 pre-connectorized adapters; Fully sealed design
Features
SUN-PDN-1604 Pre-connectorized Distribution Box
Model: SUN-PDN-1604
IP68; 1 oval cable entry, 2 branch cable entries, and 16 pre-connectorized adapters
Features
SUN-PDN-1802 Series Pre-connectorized Distribution Box
Model: SUN-PDN-1802
IP68; Max. 18 pre-connectorized adapters
Features
