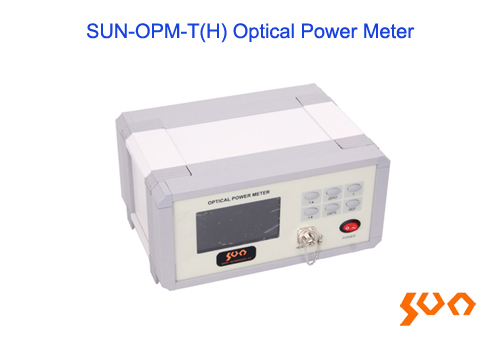

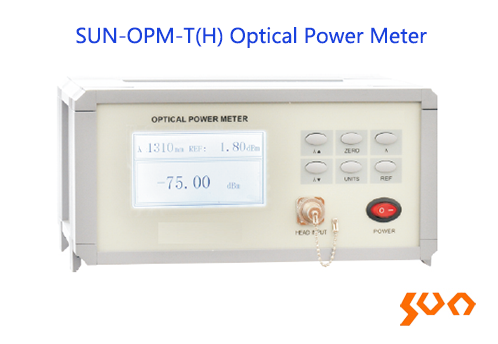

SUN-OPM-T (H) Optical Power Meter

Model: SUN-OPM-T (H)

RS232 port, microprocessor control

    Key Features

  • Intelligent microprocessor control
  • High precision and high stability
  • Wide wavelength range and automatic switching
  • High sensitivity
  • Simple calibration
  • Optional bare fiber clamp and base for SUN-OPM-TH Optical Power Meter
  • Description
  • Specifications
  • Ordering Information
  • Applications
  • FAQ
  • Product Video
  • Sun Telecom's SUN-OPM-T (H) bench-top optical power meter is a high precision and wide measurement range test instrument. It can be widely used in optical fiber and device production testing, R&D and telecom construction and maintenance projects.
  • Specifications
    Parameters Specification
    Wavelength Range (nm) 850 ~ 1700
    Calibrated Wavelengths (nm) 850/980/1300/1310/1480/1490/1550/1625
    Detector Type InGaAs
    Measurement Range (dBm) -75 ~ +5
    Measurement Unit dB/dBm/xW
    Display Resolution (dB) 0.01/0.001
    Uncertainty ± 3%
    Communication Interface RS232
    Power AC 90 ~ 260V
    Operation Temperature (°C) -10 ~ +60
    Storage Temperature (°C) -25 ~ +70
    Dimensions (mm) 260 (L) x 190 (W) x 120 (H)
    Weight (kg) 2.6

    Standard Package

    No. Name Unit Quantity
    1 Optical Power Meter set 1
    2 RS232 Data Transfer Cable pieces 3
    3 USB Disk piece 1
    4 Power Line piece 1
    5 Fuse pieces 2
    6 Cleaning Swabs pack 1

    Optional Accessories

    No. Name Unit Quantity
    1 Bare Fiber Clamp and Base set 1

  • Model Name Description
    SUN-OPM-T Optical Power Meter Bench-top, 850/980/1300/1310/1480/1490/1550/1625 nm, measurement range: -75 ~ +5dBm, FC port; In-built detector
    SUN-OPM-TH Optical Power Meter Bench-top, 850/980/1300/1310/1480/1490/1550/1625 nm, measurement range: -75~+5dBm, FC port; Horizontal external detector
    SUN-OPM-TEB Bare Fiber Clamp and Base Used with SUN-OPM-TH optical power meter only

  • ● Telecommunication networks
    ● CATV networks
    ● Other fiber optic networks
    ● Education and research in optical communication
