Position: Home > Products > Fiber Optic Test Equipment > Light Sources

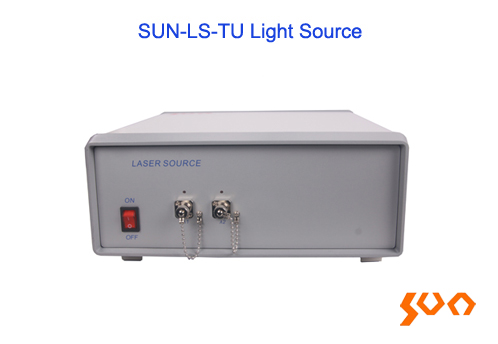

SUN-LS-TU Light Source

Model: SUN-LS-TU

FC ⁄ APC (SM), FC ⁄ UPC (MM), low return loss effect

    Key Features

  • Highly stable wavelength
  • Highly stable output power
  • Low return loss effect
  • Description
  • Specifications
  • Ordering Information
  • Applications
  • FAQ
  • Product Video
  •  Sun Telecom’s SUN-LS-TU series of bench top light source uses automatic power control and temperature control technology. It can be widely used in optical fiber and device production testing, R&D and telecom construction and maintenance projects.
  • Specifications
    Parameters Specification
    Model SUN-LS-TU650 SUN-LS-TU850/980----
    Operating Wavelengths (nm) 650 850/980/1300/1310/1490/1550/1625
    Fiber Type Multimode 50/125 or 62.5/125 Single Mode 9/125
    Multimode 50/125 or 62.5/125 (optional)
    Output Power (dBm) ≥10 ≥0
    No. of Output Optical Ports Max. 4 Max. 3 (according to the no. of wavelengths)
    Laser Type FP-LD FP-LD
    Output Power Stability (dB/30min) / ±0.02
    Output Power Stability (dB/24h) / ±0.05
    Optical Port FC/UPC FC/APC (SM), FC/UPC (MM)
    Output Mode CW
    Operation Temperature (°C) 10~50
    Storage Temperature (°C) -10~+60
    Power Supply (V) AC: 90~260
    Weight (kg) 2.6
    Dimensions (mm) 305(L) x 260(W) x 120(H)

    Standard Accessories

    No. Product Unit Quantity
    1 Light Source set 1
    2 Power Line piece 1

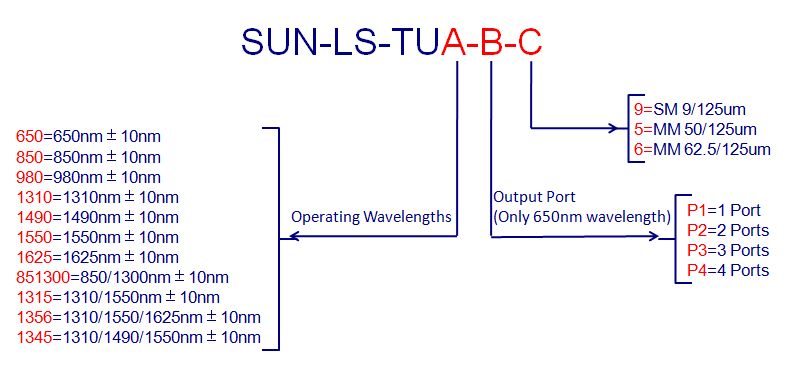

  • Example 1: SUN-LS-TU650-P1
    Red light source; 650±10nm, 1x optical port: FC/PC

    Example 2: SUN-LS-TU1356-9
    Light source; 1310/1550/1625±10nm, 3x optical port: FC/APC, Single mode 9/125 um


  • ● Manufacture and research in optical communication
    ● Telecommunication networks
    ● Other fiber optic networks
