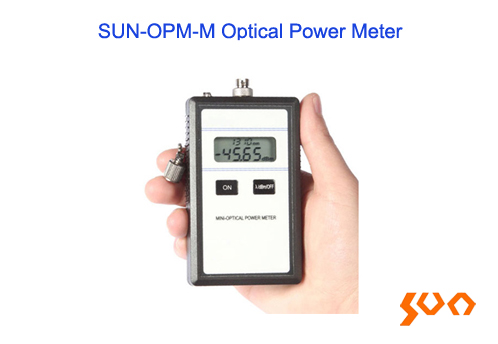

SUN-OPM-M Optical Power Meter

Model: SUN-OPM-M

FC, compact and easy to carry

    Key Features

  • User self-calibration function
  • Auto power off after 10 minutes without operation
  • FC port
  • Compact and easy to carry
  • Description
  • Specifications
  • Ordering Information
  • Applications
  • FAQ
  • Product Video
  • Sun Telecom's SUN-OPM-M series of handheld mini optical power meter provides testing for 5 output wavelengths. It is a cost-effective testing solution for the fiber optic network together with a light source.
  • Specifications
    Parameters Specification
    Model SUN-OPM-MA SUN-OPM-MC
    Wavelength Range (nm) 800 ~ 1700
    Calibrated Wavelengths (nm) 850/1300/1310/1490/1550/1625
    Detector Type InGaAs
    Optical Interface FC port
    Measurement Range (dBm) -70 ~ +6 -50 ~ +26
    Uncertainty ± 5%
    Display Resolution (dB) 0.01
    Power 3 x AAA 1.5V batteries
    Battery Operation Time (h) 360
    Auto Power off Time (min) 10
    Operation Temperature (°C) -10 ~ +60
    Storage Temperature (°C) -25 ~ +70
    Dimensions (mm) 115 (L) x 60 (W) x 20 (H)
    Weight (g) 105 (without battery)

    Standard Package

    No. Name Unit Quantity
    1 Optical Power Meter set 1
    2 AAA 1.5V Battery pieces 3
    3 Soft Bag piece 1
    4 USB Disk piece 1

  • Model Name Description
    SUN-OPM-MA Optical Power Meter Mini type handheld, 850/1300/1310/1490/1550/1625 nm; Measurement range: -70 ~ +6 dBm; FC port
    SUN-OPM-MC Optical Power Meter Mini type handheld, 850/1300/1310/1490/1550/1625 nm; Measurement range: -50 ~ +26 dBm; FC port

  • ● Telecommunication networks
    ● CATV networks
    ● Other fiber optic networks
    ● Education and research in optical communication
