Position: Home > Products > Fiber Optic Test Equipment > Light Sources

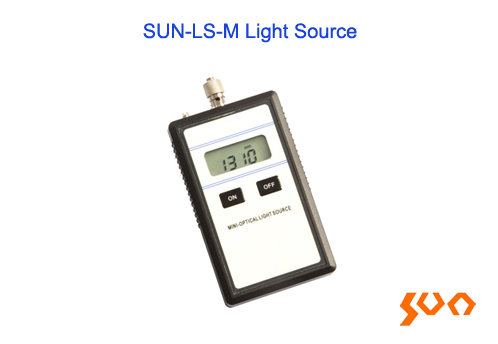

SUN-LS-M Light Source

Model: SUN-LS-M

FC ⁄ PC, compact design and easy to carry

    Key Features

  • High stable output power and wavelength
  • Long working hours
  • Compact design and easy to carry
  • Description
  • Specifications
  • Ordering Information
  • Applications
  • FAQ
  • Product Video
  •  Sun Telecom’s SUN-LS-M series of handheld mini light source uses FP-LD laser source. It is a cost-effective testing solution for the fiber optic network together with an optical power meter.
  • Specifications
    Parameters Specification
    Wavelength (nm) 1310 or 1550
    Fiber Type SM
    Emitter Type FP-LD
    Output Power (dBm) -7~-6
    Output Stability (dB ,20 °C) ±0.05dB/15
    Output Light CW
    Optical Port FC/PC
    Power Supply 3*AAA 1.5V batteries
    Battery Life (Hours) 40
    Operating Temperature (°C) -10~60
    Storage Temperature (°C) -25~70
    Dimensions (mm) 115(L) x 60(W) x 20(H)
    Weight (g) 110 (without battery)
    Standard Accessories

    No. Product Unit Quantity
    1 Light Source set 1
    2 AAA 1.5V Battery pieces 3
    3 Cleaning Swabs pack 1
    4 Soft Bag piece 1
  • Model Name Description
    SUN-LS-M1310 Light Source Mini type handheld, 1310±20nm, FC port
    SUN-LS-M1550 Light Source Mini type handheld, 1550±20nm, FC port

  • ● Telecommunication networks
    ● CATV networks
    ● Other fiber optic networks
    ● Education and research in optical communication
