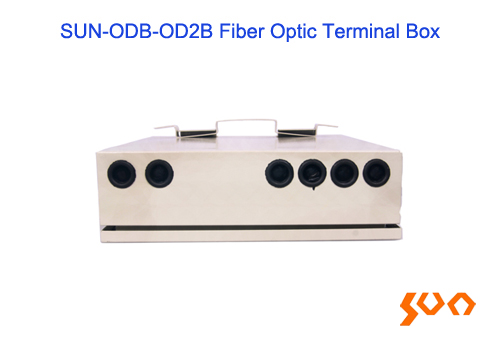

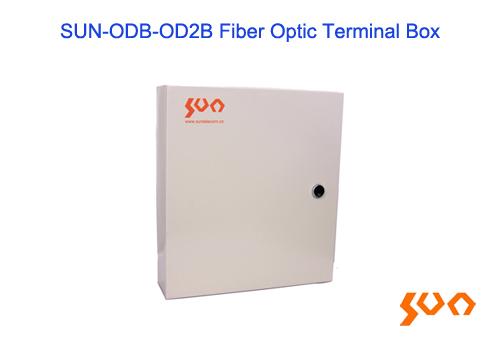

Outdoor wall mount, Max Cores: 24 ⁄ 48 ⁄ 72 cores, IP65

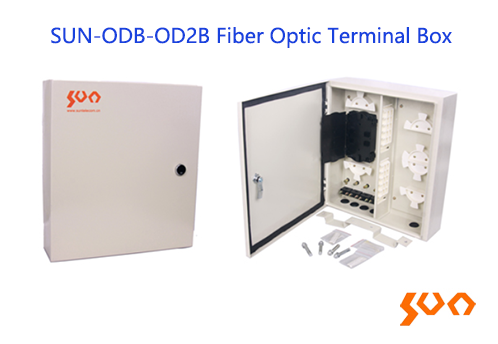

Sun Telecom's SUN-ODB-OD2B series fiber optic terminal boxes are suitable for small-capacity fiber optic communication engineering. Construction of boxes is divided into two parts. Left part is for splicing of pigtails and fiber optic cables. Right part is for connecting patch cords.
| Parameters | Specification | ||
| Model | SUN-ODB-OD2B-24 | SUN-ODB-OD2B-48 | SUN-ODB-OD2B-72 |
| Maximum Number of Cores | 24 | 48 | 72 |
| Adapter Type | FC square, SC, DLC (SC type), ST | ||
| Box Material | Cold-rolled steel | ||
| Dimensions(mm) | 455 (L) × 405 (W) × 80 (H) | 455 (L) × 405 (W) × 120 (H) | 455 (L) × 405 (W) × 150 (H) |
| Weight (kg) | 7.4 | 8.4 | 9.7 |
| No. | Name | Unit | Quantity |
| 1 | Fiber Optic Terminal Box | set | 1 |
| 2 | Protective Sleeves | pieces | 24, 48 or 72 |
| 3 | Keys | pieces | 2 |
| 4 | Wall Bracket | set | 1 |
| 5 | Screw Set | set | 1 |
| Model | Name | Description |
| SUN-ODB-OD2B-24FC | Fiber Optic Terminal Box | Outdoor type; Max. 24 cores, FC square panel; Adapters NOT included |
| SUN-ODB-OD2B-24SC | Fiber Optic Terminal Box | Outdoor type; Max. 24 cores, SC/duplex LC (SC type) panel; Adapters NOT included |
| SUN-ODB-OD2B-24ST | Fiber Optic Terminal Box | Outdoor type; Max. 24 cores, ST panel; Adapters NOT included |
| SUN-ODB-OD2B-48FC | Fiber Optic Terminal Box | Outdoor type; Max. 48 cores, FC square panel; Adapters NOT included |
| SUN-ODB-OD2B-48SC | Fiber Optic Terminal Box | Outdoor type; Max. 48 cores, SC/duplex LC (SC type) panel; Adapters NOT included |
| SUN-ODB-OD2B-48ST | Fiber Optic Terminal Box | Outdoor type; Max. 48 cores, ST panel; Adapters NOT included |
| SUN-ODB-OD2B-72FC | Fiber Optic Terminal Box | Outdoor type; Max. 72 cores; FC square panel; Adapters NOT included |
| SUN-ODB-OD2B-72SC | Fiber Optic Terminal Box | Outdoor type; Max. 72 cores, SC or duplex LC (SC type) panel; Adapters NOT included |
| SUN-ODB-OD2B-72ST | Fiber Optic Terminal Box | Outdoor type; Max. 72 cores, ST panel; Adapters NOT included |
