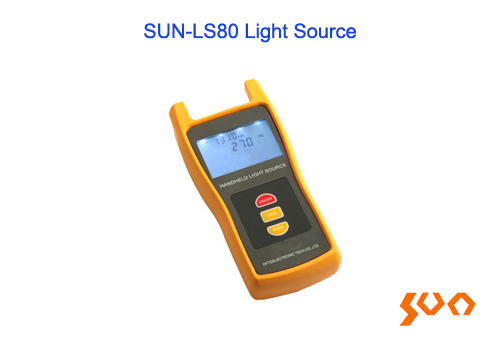

SUN-LS80 Light Source

Model: SUN-LS80

FC, cost-effective

    Key Features

  • Laser output with high-stability, multi-wavelength and single/multi mode
  • Large LCD display
  • Switch button for changing operating wavelength and easy to operate
  • Long working hours
  • Standard FC port or customizable FC/SC/ST interchangeable port
  • Description
  • Specifications

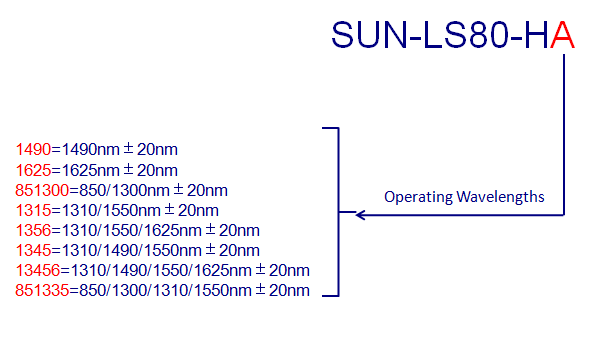

  • Ordering Information
  • Applications
  • FAQ
  • Product Video
  •  Sun Telecom’s SUN-LS80 series of handheld light source provides 1~4 output wavelengths to meet specific requirements and other wavelengths according to customer’s needs. It provides highly stable output power and wavelengths. It is a cost-effective testing solution for the fiber optic network together with an optical power meter.
  • Specifications
    Parameters Specification
    Wavelength (nm) 850/1300/1310/1490/1550/1625, up to 4 selectable wavelengths
    Fiber Type SM/MM
    Emitter Type FP-LD
    Output Power (dBm) -7~-6
    Modulation Frequency CW (Hz) 270/330/1K/2K
    Optical Port FC port (default) or FC/SC/ST interchangeable port (customized)
    Power Supply 3*AA 1.5V batteries
    Battery Life (Hours) 45
    Operating Temperature (°C) -10~60
    Storage Temperature (°C) -25~70
    Dimensions (mm) 151(L) x 73(W) x 26(H)
    Weight (g) 170 (without battery)
    Standard Accessories

    No. Product Unit Quantity
    1 Light Source set 1
    2 AA 1.5V Battery pieces 3
    3 Cleaning Swabs pack 1
    4 Soft Bag piece 1

  • ● Telecommunication networks
    ● CATV networks
    ● Other fiber optic networks
    ● Education and research in optical communication
