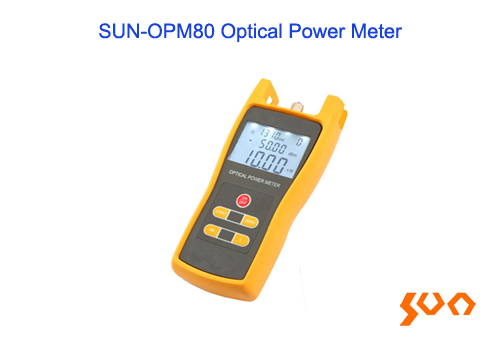

SUN-OPM80 Optical Power Meter

Model: SUN-OPM80

FC, Calibrated Wavelengths: 850/980/1300/1310/1490/1550nm

    Key Features

  • User self-calibration function
  • Power measurements in dBm or mW
  • Auto power off after 10 minutes without operation
  • FC port
  • Backlight LCD display for night operation
  • Description
  • Specifications
  • Ordering Information
  • Applications
  • FAQ
  • Product Video
  • Sun Telecom's SUN-OPM80 series of handheld optical power meter provides testing for 6 output wavelengths. It is a cost-effective testing solution for the fiber optic network together with a light source.
  • Specifications
    Parameters Specification
    Model SUN-OPM80-TC SUN-OPM80-BC
    Wavelength Range (nm) 800 ~ 1700
    Calibrated Wavelengths (nm) 850/980/1300/1310/1490/1550
    Detector Type InGaAs
    Optical Interface FC port
    Measurement Range (dBm) -70 ~ +6 -50 ~ +26
    Uncertainty ± 5%
    Display Resolution (dB) 0.01
    Power 3 x AA 1.5V batteries
    Battery Operation Time (h) 130
    Auto Power off Time (min) 10
    Operation Temperature (°C) -10 ~ +60
    Storage Temperature (°C) -25 ~ +70
    Dimensions (mm) 152 (L) x 74 (W) x 26 (H)
    Weight (g) 160 (without battery)

    Standard Package

    No. Name Unit Quantity
    1 Optical Power Meter set 1
    2 AA 1.5V Battery pieces 3
    3 Soft Bag piece 1
    4 USB Disk piece 1

  • Model Name Description
    SUN-OPM80-TC Optical Power Meter Handheld, 850/980/1300/1310/1490/1550 nm; Measurement range: -70 ~ +6 dBm; FC port
    SUN-OPM80-BC Optical Power Meter Handheld, 850/980/1300/1310/1490/1550 nm; Measurement range: -50 ~ +26 dBm; FC port

  • ● Telecommunication networks
    ● CATV networks
    ● Other fiber optic networks
    ● Education and research in optical communication
