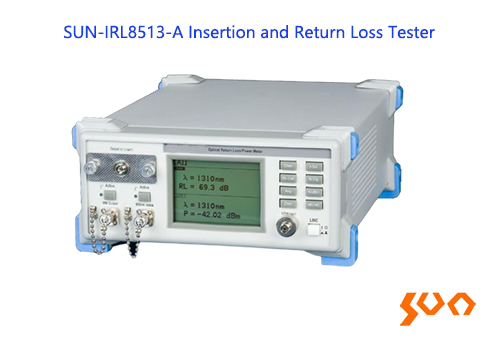

SUN-IRL8513-A Insertion and Return Loss Tester

Model: SUN-IRL8513-A

    Key Features

  • Intelligent microprocessor-controlled equipment
  • Insertion and return loss testing of the optical active devices and passive components
  • In-built multiple-wavelength light source: 850/1300nm
  • In-built high stability light source (US import detector)
  • Large color LCD screen
  • Description
  • Specifications
  • Ordering Information
  • Applications
  • FAQ
  • Product Video
  • Sun Telecom’s SUN-IRL8513-A series of insertion and return loss tester is a multifunctional test instrument composed of a stable light source, high-precision optical power meter and an insertion and return loss tester. It is widely used in the insertion and return loss testing of fiber optic cables, passive devices and communication systems.
  • Parameters Specification
    Model SUN-IRL8513-62.5-A SUN-IRL8513-50-A
    Fiber Type (um) 62.5/125 50/125
    Return Loss Test Interface FC/APC
    Test Wavelength (nm) 850/1300
    Output Power (dBm) ≥-6
    Range (dB) 0 ~ 55
    Absolute accuracy (dB) ± 1.0
    Relative accuracy (dB) ± 0.4
    Insertion Loss Test Interface Interchangeable Interface (FC/SC/ST/LC)
    Wavelength (nm) 850/1300
    Detector InGaAs(φ2mm probe of U.S. imports)
    Range (dBm) -80 ~ +10
    Total uncertainty (%) ±5
    Linearity (dB) ±0.02
    Display λ: nm, RL: dB, P: dBm (Synchronous display)
    Processing Functions Processing system calibration, auto range, auto-zero, average processing, wavelength selection
    Interface Function RS-232
    Power Supply (V) AC220 (AC110 optional)
    Operating Temperature () 0 ~ +50
    Humidity <95%
    Dimensions (mm) 95 (H) x 223 (W) x 300 (D)
    Weight (kg) ≤4

    Standard Package

    No. Product Unit Qty
    1 Insertion and Return Loss Tester set 1
    2 Power Line piece 1
    3 FC/APC-FC/UPC Patch Cord
    For SUN-IRL8513-62.5-A (OM1 3m)
    For SUN-IRL8513-50-A (OM3 3m)
    pieces 2
    4 FC Connector piece 1
    5 Adapter (2.5mm Universal) piece 1
    6 Adapter (1.25mm Universal) piece 1
    7 FC Adapter  piece 1
    8 Bobbin Winder piece 1
    9 USB Disk piece 1

  • Model Name Description
    SUN-IRL8513-62.5-A-AC220 Insertion and Return Loss Tester   Return Loss: 850/1300nm, 0~55dB, FC/APC; Fiber Type: 62.5/125um; Insertion Loss: 850/1300nm, -80~+10dBm, FC/2.5mm universal/1.25mm universal; Power supply: AC 220V
    SUN-IRL8513-62.5-A-AC110 Insertion and Return Loss Tester   Return Loss: 850/1300nm, 0~55dB, FC/APC; Fiber Type: 62.5/125um; Insertion Loss: 850/1300nm, -80~+10dBm, FC/2.5mm universal/1.25mm universal; Power supply: AC 110V
    SUN-IRL8513-50-A-AC110 Insertion and Return Loss Tester   Return Loss: 850/1300nm, 0~55dB, FC/APC; Fiber Type: 50/125um; Insertion Loss: 850/1300nm, -80~+10dBm, FC/2.5mm universal/1.25mm universal; Power supply: AC 110V
    SUN-IRL8513-50-A-AC220 Insertion and Return Loss Tester   Return Loss: 850/1300nm, 0~55dB, FC/APC; Fiber Type: 50/125um; Insertion Loss: 850/1300nm, -80~+10dBm, FC/2.5mm universal/1.25mm universal; Power supply: AC 220V

  • ● Patch cord production line
    ● Passive devices production line
    ● Education and research in optical communication
