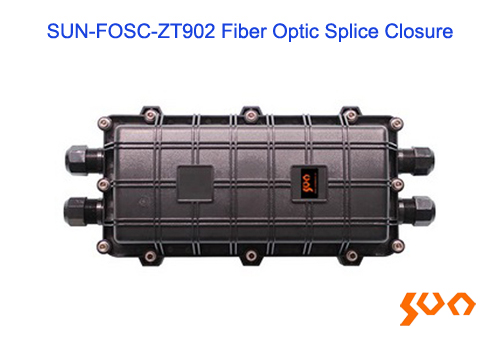

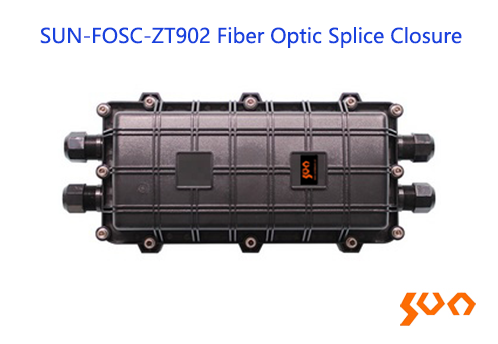

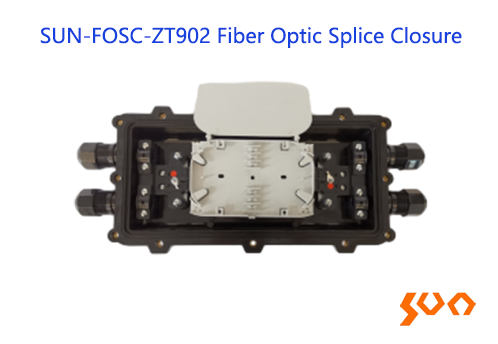

SUN-FOSC-ZT902 Splice Closure

Model: SUN-FOSC-ZT902

Max 96 fibers, 24 fibers tray, 8-20mm cables, 4 ports, screw fastening

    Key Features

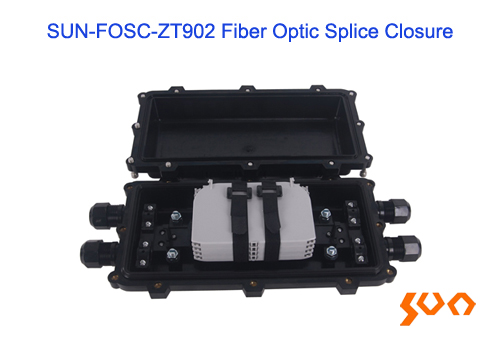

  • Advanced internal design with enough space for fiber splicing and storage
  • Long lasting body with high-strength PC plastic material
  • Protection rating IP68
  • Usable for multiple number of times
  • Lower and upper cases with screw fastening locking
  • Description
  • Specifications
  • Ordering Information
  • Applications
  • FAQ
  • Product Video
  • Sun Telecom's SUN-FOSC-ZT902 fiber optic splice closure is used for outdoor cable distribution, splicing, storage and splicing point protection. This type of closure can be used in aerial mounting, wall mounting, direct buried and pipeline laying installations.
  • Specifications
    Parameters Specification
    Material PC
    Protection Rating IP68
    No. of In-out Ports 4
    Cable Diameter (mm) 8~20
    No. of Fibers/Tray 24
    Max. Capacity of Fibers 96
    Dimensions (mm) 470(L) × 200 (W) × 120(H)

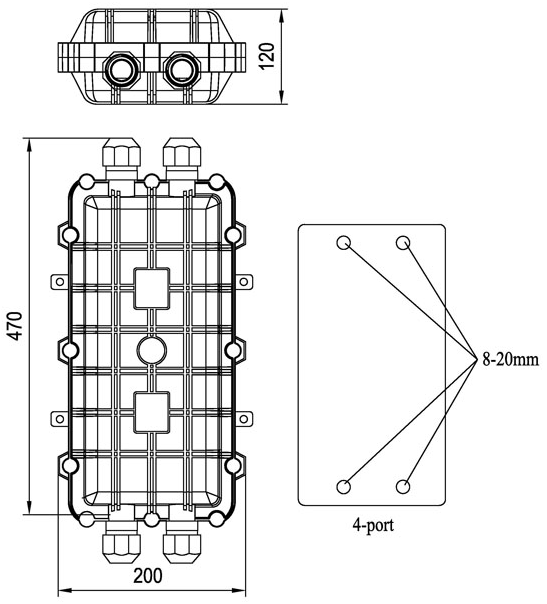

    Structural Drawing


    Standard Package
    No. Name Unit Quantity
    1 Fiber Optic Splice Closure set 1
    2 Protective Sleeves pieces According to no. of fibers
    3 Ties pieces 4×no. of trays
    4 Insulation Tape piece 1
    5 Ground Wire piece 1
    6 Emery Cloth piece 1
    7 Numbering Paper piece According to no. of fibers
    8 Special Wrenches pieces 2 (Small plastic wrench for cable in/out ports, and Allen wrench)
    9 φ15mm Sealing Grommet pieces 4
    10 φ15mm Sealing Grommet Plug pieces 4
    11 φ16.5mm Plastic Washer pieces 4

    Optional Accessories
    No. Name Unit Quantity
    1 Earthing Deriving Device set 1
    2 Valve piece 1
    3 Protection Tube piece 1
    4 Aerial Mounting set 1
    5 Wall Mounting set 1
    6 φ21mm Sealing Grommet pieces 1~4
    7 φ22mm Plastic Washer pieces 1~4

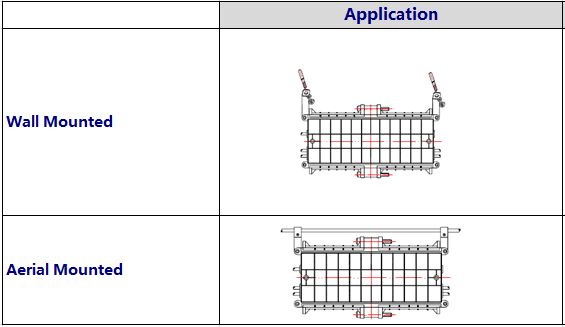

    Installation

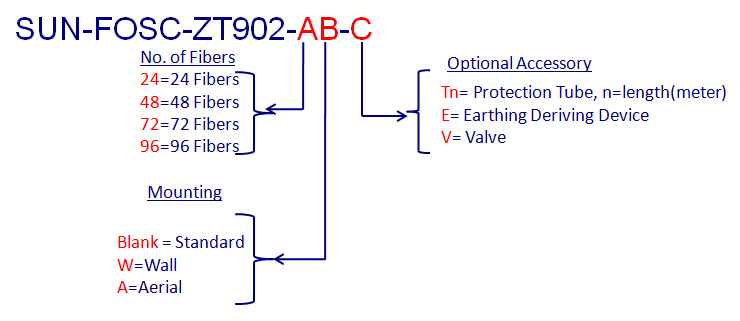

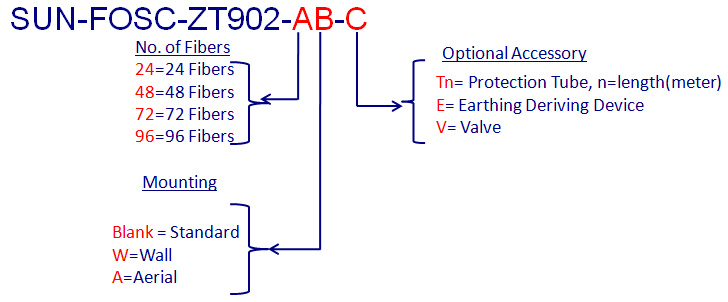

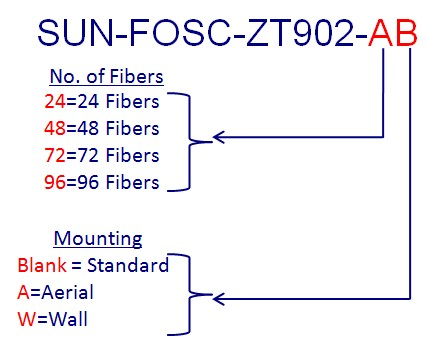

  • Ordering Information


    Example 1: SUN-FOSC-ZT902-24A
    In-line type, screw fastening, mechanical sealing; 24 fibers, 1 tray of 24 fibers/tray (12 slots/tray) included; 4 cable ports, max capacity: 96 fibers; IP68, material: PC, dimensions (mm): 470 (L)×200 (W)×120 (H); With accessories for aerial application

    Example 2: SUN-FOSC-ZT902-48W
    In-line type, screw fastening, mechanical sealing; 48 fibers, 2 trays of 24 fibers/tray (12 slots/tray) included; 4 cable ports, max capacity: 96 fibers; IP68, material: PC, dimensions (mm): 470 (L)×200 (W)×120 (H); With accessories for wall mounting
  • ● FTTH access networks
    ● Telecommunication networks
    ● CATV networks
    ● Local Area Networks
