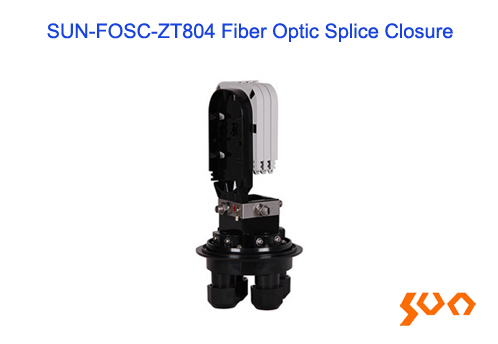

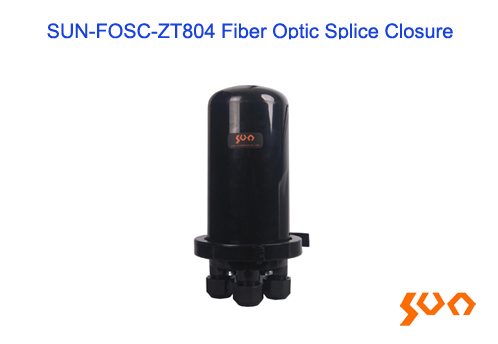

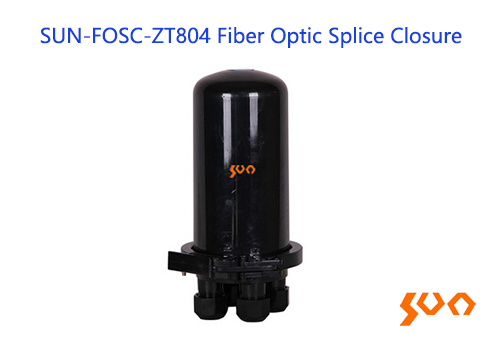

SUN-FOSC-ZT804 Splice Closure

Model: SUN-FOSC-ZT804

Max 48 fibers, 12 fibers tray, 8-13mm cables, 4 ports, mechanical sealing

    Key Features

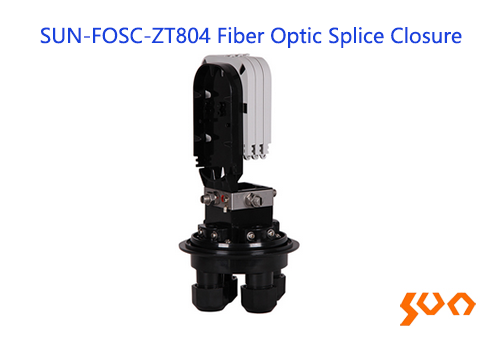

  • Advanced internal design with enough space for fiber splicing and storage
  • Long lasting body with high-strength PC plastic material
  • Protection rating IP68
  • Cable ports with mechanical sealing
  • Description
  • Specifications
  • Ordering Information
  • Applications
  • FAQ
  • Product Video
  •  Sun Telecom's SUN-FOSC-ZT804 fiber optic splice closure is used for outdoor cable distribution, splicing, storage and splicing point protection. This type of closure can be used in aerial mounting, wall mounting, pole mounting, direct buried and pipeline laying installations.
  • Specifications
    Parameters Specification
    Material PC
    Protection Rating IP68
    No. of In-out Ports 4
    Cable Diameter (mm) 8~13
    No. of Fibers/Tray 12
    Max. Capacity of Fibers 48
    Dimensions (mm) 178(D) × 288(H)

    Standard Package

    No. Product Unit Quantity
    1 Closure Box set 1
    2 Protective Sleeves pieces According to no. of fibers
    3 Ties pieces 4* no. of trays+4
    4 Insulation Tape piece 1
    5 Drying Agent piece 1
    6 Ground Wire piece 1
    7 Emery Cloth piece 1
    8 Numbering Paper piece According to no. of fibers
    9 Special Wrenches pieces 2 (butterfly style wrench and small plastic wrench for cable in/out ports)

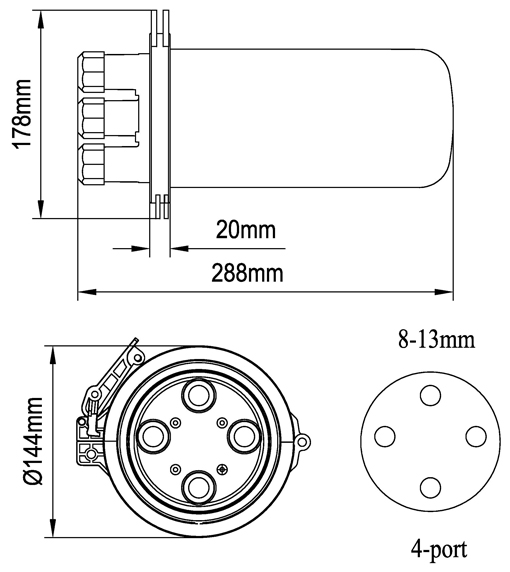

    Structural Drawing


    Optional Accessories

    No. Product Unit Quantity
    1 Earthing Deriving Device set 1
    2 Valve piece 1
    3 Protection Tube piece 1
    4 Aerial Mounting (Customized) set 1

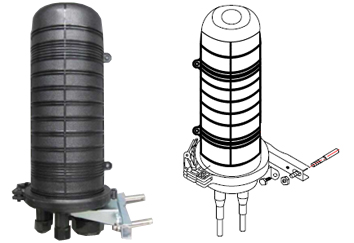

    5 Wall Mounting (Vertical) set 1
    6 Wall Mounting (Horizontal) (Customized) set 1

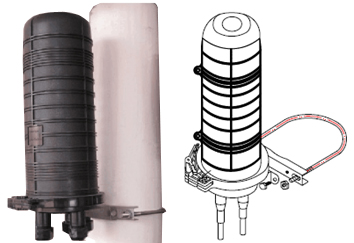

    7 Pole Mounting set 1

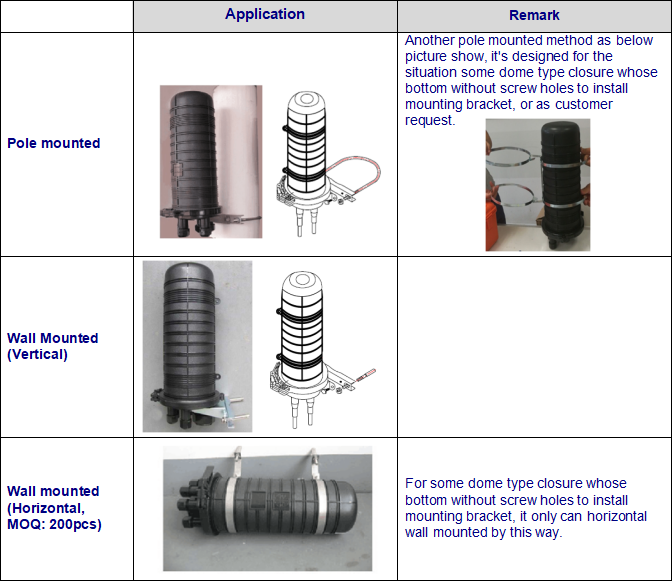

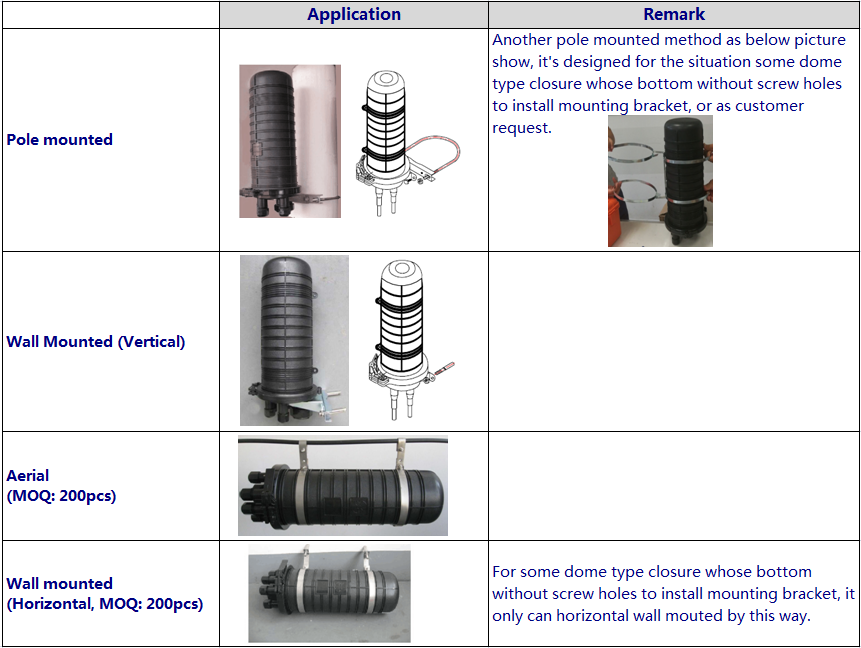

    Installation

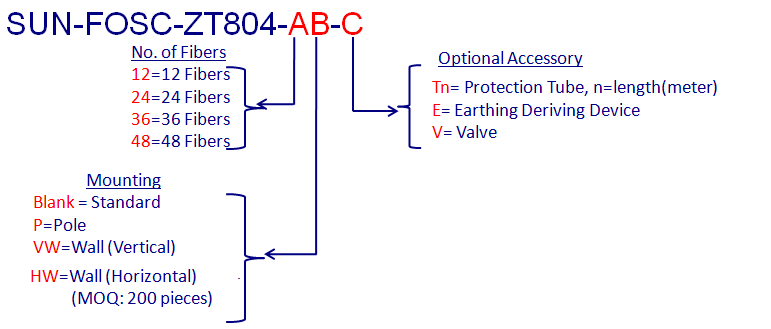

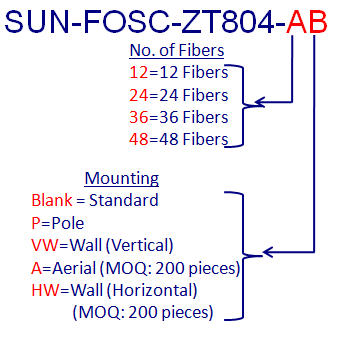

  • Example 1:
    Model Name Description
    SUN-FOSC-ZT804-24P Fiber Optic Splice Closure Dome type, mechanical sealing; 24 fibers, 2 trays of 12 fibers/tray (6 slots/tray) included; 4 cable ports, max capacity: 48 fibers; IP68, material: PC, dimensions (mm): 178 (D) x 288 (H); With accessories for pole mounting

     Example 2:
    Model Name Description
    SUN-FOSC-ZT804-48VW Fiber Optic Splice Closure Dome type, mechanical sealing; 48 fibers, 4 trays of 12 fibers/tray (6 slots/tray) included; 4 cable ports, max capacity: 48 fibers; IP68, material: PC, dimensions (mm): 178 (D) x 288 (H); With accessories for wall mounting (vertical)

  • ● FTTH access networks
    ● Telecommunication networks
    ● CATV networks
    ● Local Area Networks
