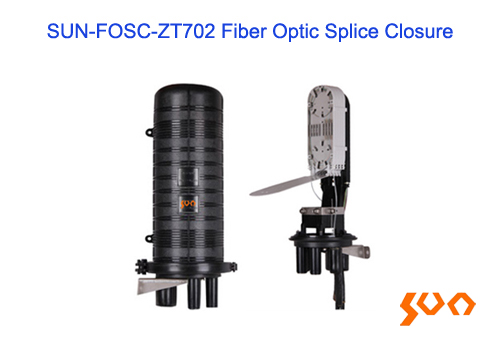

SUN-FOSC-ZT702 Splice Closure

Model: SUN-FOSC-ZT702

Max 144 fiber, 24 fiber tray, 16-40mm cable, 5 ports, heat shrink sealing

    Key Features

  • Advanced internal design with enough space for fiber splicing and storage
  • Long lasting body with high-strength PC plastic material
  • Protection rating IP68
  • Cable ports with heat shrink sealing
  • One oval-shaped port for straight-through cabling
  • Description
  • Specifications
  • Ordering Information
  • Applications
  • FAQ
  • Product Video
  • 　Sun Telecom's SUN-FOSC-ZT702 fiber optic splice closure is used for outdoor cable distribution, splicing, storage and splicing point protection. This type of closure can be used in aerial mounting, wall mounting, pole mounting, direct buried and pipeline laying installations.
  • Specifications
    Parameters                                       Specification
    Material PC
    Protection Rating IP68
    No. of In-out Ports 5
    Cable Diameter (mm) 4 holes: 8~20 mm fiber optic cables
    1 oval shape hole: 1 fiber optic  cable 16~40 mm, 2 fiber optic  cables 16~32 mm, 4 fiber optic  cables 16~19 mm or 6 fiber optic cables 16 mm
    No. of Fibers/Tray 24
    Max. Capacity of Fibers 144
    Dimensions (mm) 225(D) × 500(H)

    Standard Package
    No. Product Unit Quantity
    1 Closure Box set 1
    2 Protective Sleeves pieces According to no. of fibers
    3 Ties pieces 4* no. of trays+4
    4 Insulation Tape piece 1
    5 Heat Shrinkable Fixing Sleeves pieces 5
    6 Drying Agent piece 1
    7 Ground Wire piece 1
    8 Emery Cloth piece 1
    9 Numbering Paper piece According to no. of fibers
    10 Cable Splitter Slot piece 1
    11 Butterfly Style Wrench piece 1
    12 Aluminum Foil piece 1

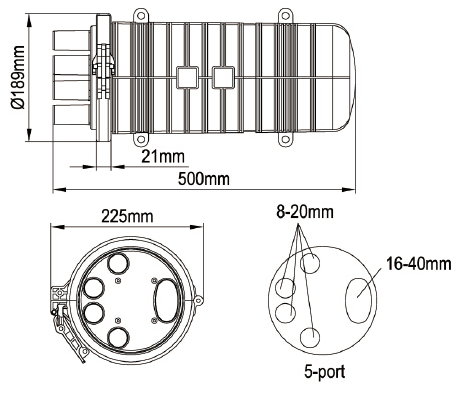

    Structural Drawing


    Optional Accessories
    No. Product Unit Quantity
    1 Earthing Deriving Device set 1
    2 Valve piece 1
    3 Protection Tube piece 1

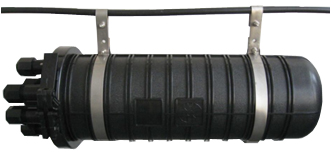

    4 Aerial Mounting (Customized) set 1

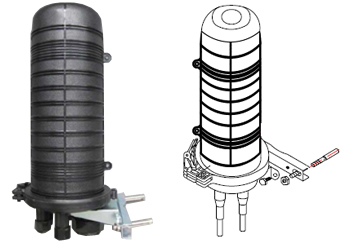

    5 Wall Mounting (Vertical) set 1
    6 Wall Mounting (Horizontal) (Customized) set 1

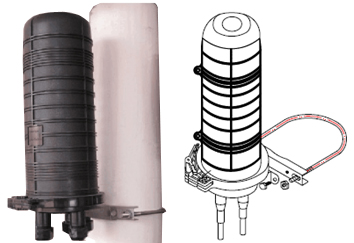

    7 Pole Mounting set 1

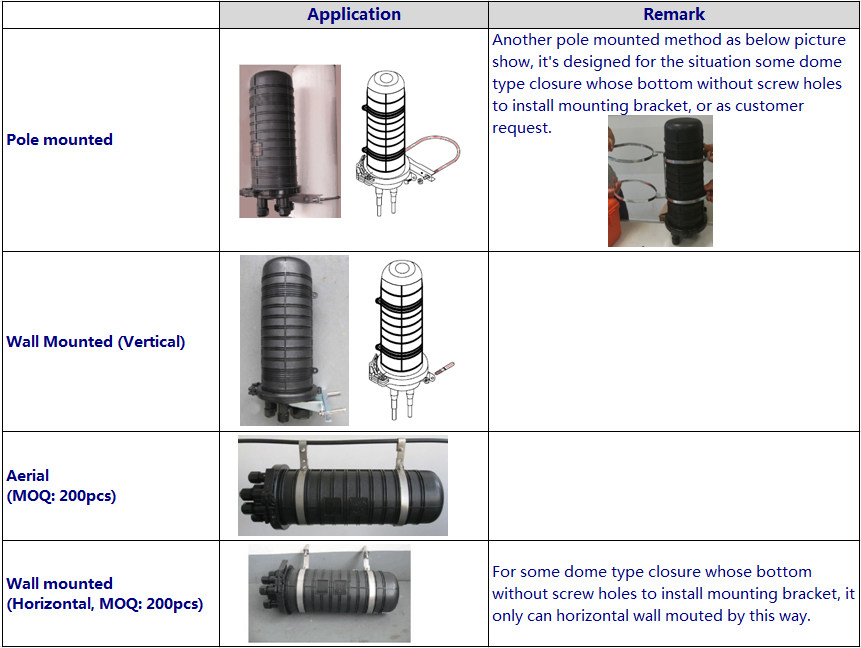

    Installation

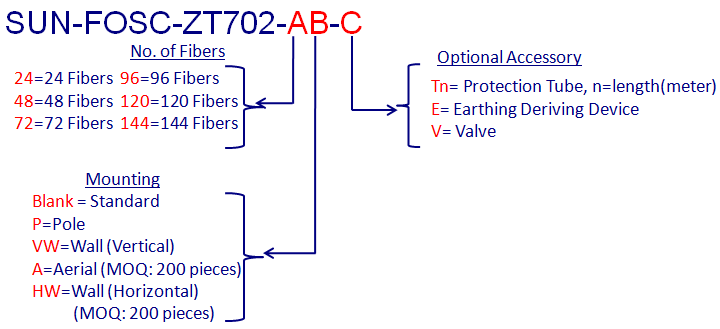

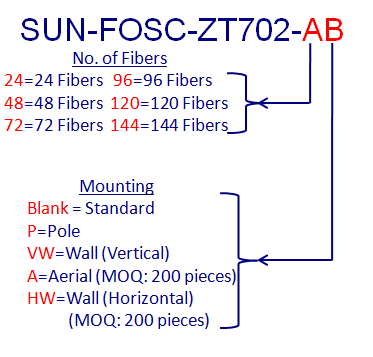

  • Example 1:
    Model Name Description
    SUN-FOSC-ZT702-24P Fiber Optic Splice Closure Dome type, heat shrink sealing; 24 fibers, 1 tray of 24 fibers/tray (12 slots/tray) included; 5 cable ports, max capacity: 144 fibers; IP68, material: PC, dimensions (mm): 225 (D) x 500 (H); With accessories for pole mounting

    Example 2:
    Model Name Description
    SUN-FOSC-ZT702-48VW Fiber Optic Splice Closure Dome type, heat shrink sealing; 48 fibers, 2 trays of 24 fibers/tray (12 slots/tray) included; 5 cable ports, max capacity: 144 fibers; IP68, material: PC, dimensions (mm): 225 (D) x 500 (H); With accessories for wall mounting (vertical)


  • ● FTTH access networks
    ● Telecommunication networks
    ● CATV networks
    ● Local Area Networks
