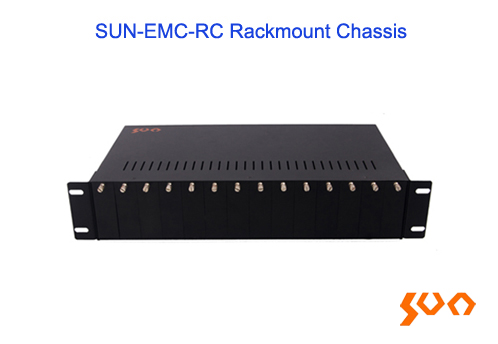

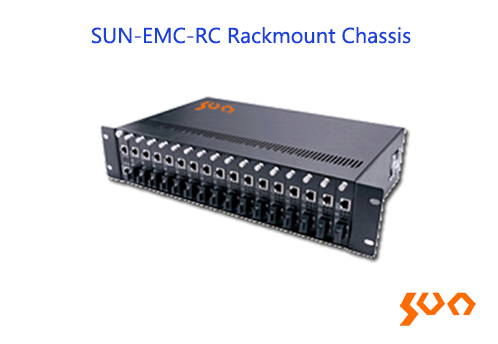

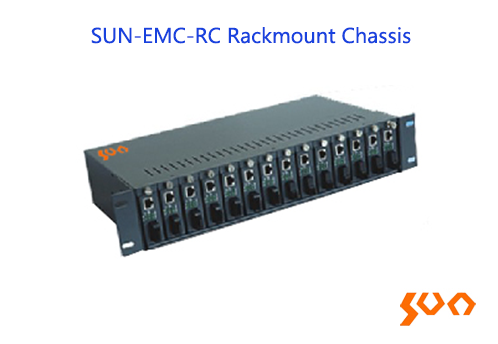

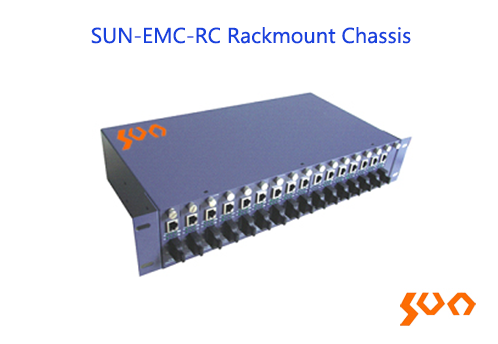

SUN-EMC-RC Rackmount Chassis

Model: SUN-EMC-RC

19” 2U, Stand-alone or card type, 14 ⁄ 16 ⁄ 17 slots Rackmount Chassis

    Key Features

  • 14-slot rackmount chassis can accommodate 14 pieces of 100Mbps or 1000Mbps stand-alone type media converters with external power supply
  • 16-slot rackmount chassis can accommodate 16 pieces of 100Mbps card type media converters
  • 17-slot rackmount chassis can accommodate 16 pieces of 100Mbps card type media converters and 1 piece of 100Mbps Network Management Card or 17 pieces of 1000Mbps card type media converters
  • All modules support Hot-swappable function
  • Description
  • Specifications
  • Ordering Information
  • Applications
  • FAQ
  • Product Video
  • Sun Telecom's SUN-EMC series of rackmount chassis is able to manage the media converters in a centralized manner. These chassis have a 19" standard structure with 14, 16 and 17 slots, a centralized power supply which reduces the number of power cables, a wide range of voltages and a large power capacity. They are easy to operate and maintain and suitable for various applications which require high reliability, high capacity, high integration and high-performance work environments.
  • Specifications
    Parameters Specification
    Power Input AC 110V / AC 220V / DC -48 (optional)
    DC Output DC 5V/12 A
    Power Protection Over voltage, over current and short circuit protection
    Quantity of Fan (pieces) 2
    Operating Temperature (°C) 0 ~ +50
    Storage Temperature (°C) -20 ~ +70
    Humidity 5 ~ 90% (non-condensing)
    Dimensions (mm) 14 slots: 430 (L) × 230 (W) × 90 (H)
    16 slots: 485 (L) × 230 (W) × 90 (H)
    17 slots: 485 (L) × 230 (W) × 90 (H)
    Weight (kg) 14 slots: 6.6
    16 slots: 6.9
    17 slots: 7.1

    Standard Package
    No. Name Unit Quantity
    1 Rackmount Chassis piece 1
    2 Power Line pieces 2

  • Model Name Description
    SUN-EMC-RC14-2AC2 Rackmount Chassis 19" 2U; 14 slots for standalone (external power supply) type of SUN-100/1000 (or SUN-100/1000SFP) series of media converters; Two power supplies: AC 220V
    SUN-EMC-RC14-2AC1 Rackmount Chassis 19" 2U; 14 slots for standalone (external power supply) type of SUN-100/1000 (or SUN-100/1000SFP) series of media converters; Two power supplies: AC 110V
    SUN-EMC-RC14-2DC Rackmount Chassis 19" 2U; 14 slots for standalone (external power supply) type of SUN-100/1000 (or SUN-100/1000SFP) series of media converters; Two power supplies: DC -48V
    SUN-EMC-RC16-2AC2 Rackmount Chassis 19" 2U; 16 slots for card type of SUN-100 series of media converters; Two power supplies: AC 220V
    SUN-EMC-RC16-2AC1 Rackmount Chassis 19" 2U; 16 slots for card type of SUN-100 series of  media converters; Two power supplies: AC 110V
    SUN-EMC-RC16-2DC Rackmount Chassis 19" 2U; 16 slots for card type of SUN-100 series of media converters; Two power supplies: DC -48V
    SUN-EMC-RC17-2AC2 Rackmount Chassis 19" 2U; 17 slots for card type of SUN-1000 series of media converters; Two power supplies: AC 220V
    SUN-EMC-RC17-2AC1 Rackmount Chassis 19" 2U; 17 slots for card type of SUN-1000 series of media converters; Two power supplies: AC 110V
    SUN-EMC-RC17-2DC Rackmount Chassis 19" 2U; 17 slots for card type of SUN-1000 series of media converters; Two power supplies: DC -48V
    SUN-EMC-RC17FM-2AC2 Rackmount Chassis 19" 2U; 16 slots for card type of SUN-100 series of media converters with network management function and 1 slot including 1 piece of 10/100M Network Management Card; Two power supplies: AC 220V
    SUN-EMC-RC17FM-2AC1 Rackmount Chassis 19" 2U; 1 slot for 1 piece of 10/100M Network Management Card and 16 slots for card type of SUN-100 series of media converters with network management function; Two power supplies: AC 110V
    SUN-EMC-RC17FM-2DC Rackmount Chassis 19" 2U; 1 slot for 1 piece of 10/100M Network Management Card and 16 slots for card type of SUN-100 series of media converters with network management function; Two power supplies: DC -48V

  • ●  Data Transmission Network
    ●  Remote surveillance and video security
