In the vast realm of the telecommunication industry, the ability to transmit data efficiently and reliably is a paramount concern. PM (Polarization Maintaining) pumps and signal combiners have emerged as crucial passive components in this pursuit, enabling high-speed data transfer, reliability, low signal insertion loss, and seamless connectivity across various high-power applications. The devices combine several pump lasers and a couple that power with a seed signal. This article delves into the world of PM pumps and signal combiners.
What is a PM Pump and Signal Combiner?

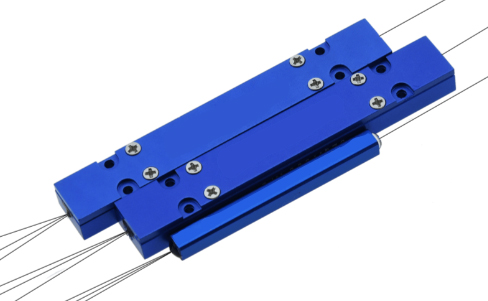

PM pump and signal combiner is a fiber passive component that combines N pump lasers and one signal channel into one fiber. It creates a high-power pump laser source, delivering the combined power for fiber laser, fiber amplifier, and telecommunication applications. In addition, it has a heat sink package and a hole for temperature monitoring.
How Does PM Pump and Signal Combiner Work?
PM pump and signal combiner employ the fused biconical taper (FBT) technique. It creates high power output by combining power from different optical fibers for the delivery/pump fibers. Also, it can be used in coupling input pump laser and polarized signal seed laser with high coupling efficiency. It offers efficient power transfer for high-power applications like direct diode materials processing and pumps cascading with maximum brightness conservation.
Pump combiner systems lie pump laser diodes, which serve as sources of energy injection into fiber optic systems. These diodes emit high-intensity light and can energize rare earth ions within the optical fibers. Pump combiners operate on the principle of energy coupling. The emitted light from pump laser diodes is combined into a single optical fiber, which subsequently interacts with other fibers within the system. This interaction leads to signal amplification and the enhancement of data transmission capabilities.
Features and Benefits
Here are some key features and benefits of using a PM pump and signal combiner:
1.Low insertion loss and cost
2.High signal transfer efficiency and polarization extinction ratio
3.High power handling and coupling efficiency
4.High reliability and stability
5.Epoxy-free on the optical path and wide operating wavelength range
6.SM, MM, PM fiber, and custom configurations available
Applications
PM pumps and signal combiners are used in fiber optic laser, fiber optic sensing, fiber optic amplifier, multi-core and large mode area fibers (LMA), telecommunication networks, military, industrial, biomedical, meteorology, life science, quantum optics, gravitational wave detection, CATV, EDFA, etc.
Conclusion
PM pump and signal combiner serve as the backbone of modern data transfer, enabling high power transfer efficiency and reliability and low insertion loss across diverse applications. As technology continues to evolve, the role of PM pump and signal combiner systems will only become more vital, shaping the future of global connectivity.
Sun Telecom specializes in providing one-stop total fiber optic solutions for all fiber optic application industries worldwide. Contact us if you have any needs.
